Rat IL-4 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Rat IL-4 ELISA Standard Curve
2 Images
Product Details
Citations (13)
Supplemental Products
Reviews (3)

Rat IL-4 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (50 uL)
5 pg/mL
Assay Range
15.6 - 1,000 pg/mL (Cell Culture Supernates, Serum)
Natural and recombinant rat IL-4
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Rat IL-4 Immunoassay is a 4.5 hour solid phase ELISA designed to measure rat IL-4 levels in cell culture supernates and serum. It contains E. coli-expressed recombinant rat IL-4 and antibodies raised against the recombinant factor. This immunoassay has been shown to quantitate the recombinant rat IL-4 accurately. Results obtained using natural rat IL-4 showed dose response curves that were parallel to the standard curves obtained using the recombinant Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for natural rat IL-4.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 20 20 20
Mean (pg/mL) 48.2 111 721 47.7 112 742
Standard Deviation 2.5 4.9 23.6 3.9 6.1 31.8
CV% 5.2 4.4 3.3 8.2 5.4 4.3


The recovery of rat IL-4 spiked to three levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Supernates (n=5) 110 104-117
Serum (n=7) 94 88-101


To assess the linearity of the assay, five or more samples containing and/or spiked with various concentrations of rat IL-4 in each matrix were diluted with Calibrator Diluent and then assayed.
Rat IL-4 ELISA Linearity

Data Examples

Rat IL-4 ELISA Standard Curve

Product Datasheets

Preparation and Storage

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-4

IL-4 (Interleukin-4) is a cytokine that is primarily expressed by Th2-biased CD4+ T cells, mast cells, basophils, and eosinophils. It promotes cell proliferation, survival, and immunoglobulin class switch to IgG4 and IgE in human B cells, acquisition of the Th2 phenotype by naïve CD4+ T cells, priming and chemotaxis of mast cells, eosinophils, and basophils, and the proliferation and activation of epithelial cells. IL-4 plays a dominant role in the development of allergic inflammation and asthma. The type I receptor for IL-4, which is expressed on hematopoietic cells, is a heterodimer of the ligand binding IL-4 R? and the common ? chain (a shared subunit of the receptors for IL-2, -7, -9, -15, and -21). The type II receptor on nonhematopoietic cells consists of IL-4 R? and IL-13 R?1. The type II receptor also transduces IL-13 mediated signals.

Long Name:
Interleukin 4
Entrez Gene IDs:
3565 (Human); 16189 (Mouse); 287287 (Rat); 397225 (Porcine); 280824 (Bovine); 403785 (Canine); 574281 (Primate); 100302454 (Rabbit)
Alternate Names:
B cell growth factor 1; BCDF; B-cell stimulatory factor 1; BCGF1; BCGF-1; binetrakin; BSF1; BSF-1; IL4; IL-4; IL-4B_cell stimulatory factor 1; IL4E12; interleukin 4; interleukin-4; Lymphocyte stimulatory factor 1; MGC79402; pitrakinra
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 50 µL Assay Diluent
  4.   Add 50 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, Control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 4 times for a total of 5 washes.

  8. 100 µL Conjugate
  9.   Add 100 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  10.   Aspirate and wash 5 times.

  11. 100 µL Substrate Solution
  12.   Add 100 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 100 µL Stop Solution
  14.   Add 100 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.

Citations for Rat IL-4 Quantikine ELISA Kit

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

13 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. Silicified collagen scaffold induces semaphorin 3A secretion by sensory nerves to improve in-situ bone regeneration
    Authors: YX Ma, K Jiao, QQ Wan, J Li, MY Liu, ZB Zhang, W Qin, KY Wang, YZ Wang, FR Tay, LN Niu
    Bioactive materials, 2022;9(0):475-490.
    Species: Rat
    Sample Types: Plasma
  2. Renoprotection Induced by Aerobic Training Is Dependent on Nitric Oxide Bioavailability in Obese Zucker Rats
    Authors: RVP Neves, HL Corrêa, IV de Sousa N, MK Souza, F Costa, AS Haro, LA Deus, AL Reis, HG Simões, RV Andrade, CO Assumpção, W Stone, J Prestes, EC Vieira, R de Cássia, V Cruzat, TS Rosa
    Oxidative Medicine and Cellular Longevity, 2021;2021(0):3683796.
    Species: Rat
    Sample Types: Tissue Homogenates
  3. The local cytokine and growth factor response to rhBMP-2 after spinal fusion
    Authors: JD Koerner, DZ Markova, GD Schroeder, BP Calio, A Shah, CW Brooks, AR Vaccaro, DG Anderson, CK Kepler
    Spine J, 2018;0(0):.
    Species: Rat
    Sample Types: Tissue Lysates
    Applications: ELISA (Standard)
  4. Age-, Gender-, andin VivoDifferent Doses of Isoproterenol Modifyin VitroAortic Vasoreactivity and Circulating VCAM-1
    Authors: B Nieto-Lima, A Cano-Martí, ME Rubio-Ruiz, I Pérez-Torr, V Guarner-La
    Front Physiol, 2018;9(0):20.
    Species: Mouse
    Sample Types: Plasma
  5. Association of C-Type Lectin Mincle with Fc?RI?? Subunits Leads to Functional Activation of RBL-2H3 Cells through Syk
    Authors: C Honjoh, K Chihara, H Yoshiki, S Yamauchi, K Takeuchi, Y Kato, Y Hida, T Ishizuka, K Sada
    Sci Rep, 2017;7(0):46064.
    Species: Rat
    Sample Types: Cell Culture Supernates
  6. Topical use and systemic action of green and roasted coffee oils and ground oils in a cutaneous incision model in rats (Rattus norvegicus albinus)
    Authors: BG Lania, J Morari, AL Souza, MND Silva, AR de Almeida, G Veira-Dami, SM Alegre, CL César, LA Velloso, ML Cintra, NB Maia, PENF Velho
    PLoS ONE, 2017;12(12):e0188779.
    Species: Rat
    Sample Types: Serum
  7. The effects of low-dose ionizing radiation in the activated rat basophilic leukemia (RBL-2H3) mast cells.
    Authors: Joo H, Nam S, Yang K, Kim C, Jin Y, Kim J
    J Biol Chem, 2012;287(33):27789-95.
    Species: Rat
    Sample Types: Cell Culture Supernates
  8. Comprehensive gene expression profiling of rat lung reveals distinct acute and chronic responses to cigarette smoke inhalation.
    Authors: Stevenson CS, Docx C, Webster R, Battram C, Hynx D, Giddings J, Cooper PR, Chakravarty P, Rahman I, Marwick JA, Kirkham PA, Charman C, Richardson DL, Nirmala NR, Whittaker P, Butler K
    Am. J. Physiol. Lung Cell Mol. Physiol., 2007;293(5):L1183-93.
    Species: Rat
    Sample Types: BALF
  9. Cellular recruitment and cytokine generation in a rat model of allergic lung inflammation are differentially modulated by progesterone and estradiol.
    Authors: de Oliveira AP, Domingos HV, Cavriani G, Damazo AS, Dos Santos Franco AL, Oliani SM, Oliveira-Filho RM, Vargaftig BB, de Lima WT
    Am. J. Physiol., Cell Physiol., 2007;293(3):C1120-8.
    Species: Rat
    Sample Types: BALF
  10. Suppression of autoimmune retinal disease by lovastatin does not require Th2 cytokine induction.
    Authors: Gegg ME, Harry R, Hankey D, Zambarakji H, Pryce G, Baker D, Adamson P, Calder V, Greenwood J
    J. Immunol., 2005;174(4):2327-35.
    Species: Rat
    Sample Types: Cell Culture Supernates
  11. Insulin attenuates the systemic inflammatory response in endotoxemic rats.
    Authors: Jeschke MG, Klein D, Bolder U, Einspanier R
    Endocrinology, 2004;145(9):4084-93.
    Species: Rat
    Sample Types: Tissue Homogenates
  12. Insulin treatment improves hepatic morphology and function through modulation of hepatic signals after severe trauma.
    Authors: Schubert T, Horch RE
    Ann. Surg., 2004;240(2):340-9.
    Species: Rat
    Sample Types: Tissue Homogenates
  13. Local anticandidal immune responses in a rat model of vaginal infection by and protection against Candida albicans.
    Authors: de Bernardis F, Santoni G, Boccanera M, Spreghini E, Adriani D, Morelli L, Cassone A
    Infect. Immun., 2000;68(6):3297-304.
    Species: Rat
    Sample Types: Vaginal Fluid


No product specific FAQs exist for this product, however you may

View all ELISA FAQs

Supplemental ELISA Products

Reviews for Rat IL-4 Quantikine ELISA Kit

Average Rating: 5 (Based on 3 Reviews)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Rat IL-4 Quantikine ELISA Kit?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Rat IL-4 Quantikine ELISA Kit
By Anonymous on 12/11/2021
Sample Tested: Serum

Rat IL-4 Quantikine ELISA Kit
By Anonymous on 12/09/2020
Sample Tested: simulated body fluid

Rat IL-4 Quantikine ELISA Kit
By Anonymous on 03/13/2020
Sample Tested: simulated body fluid

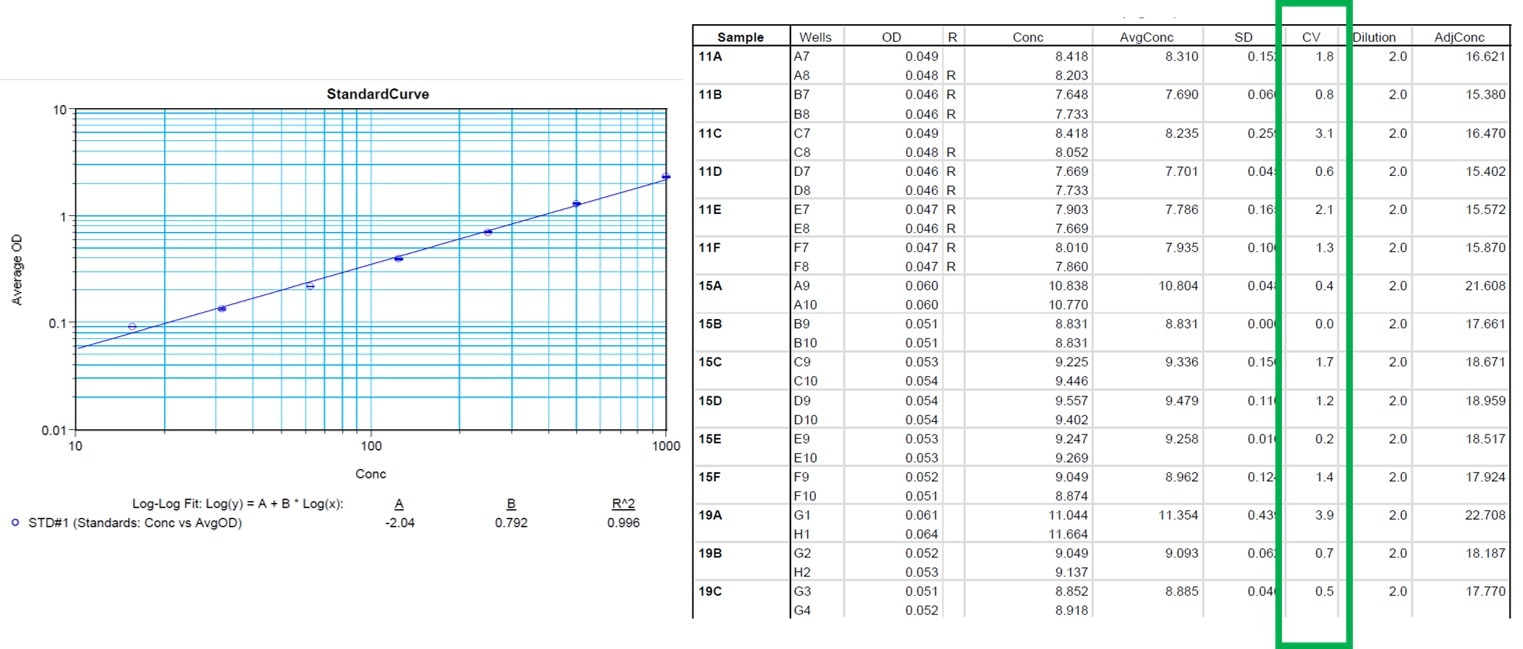

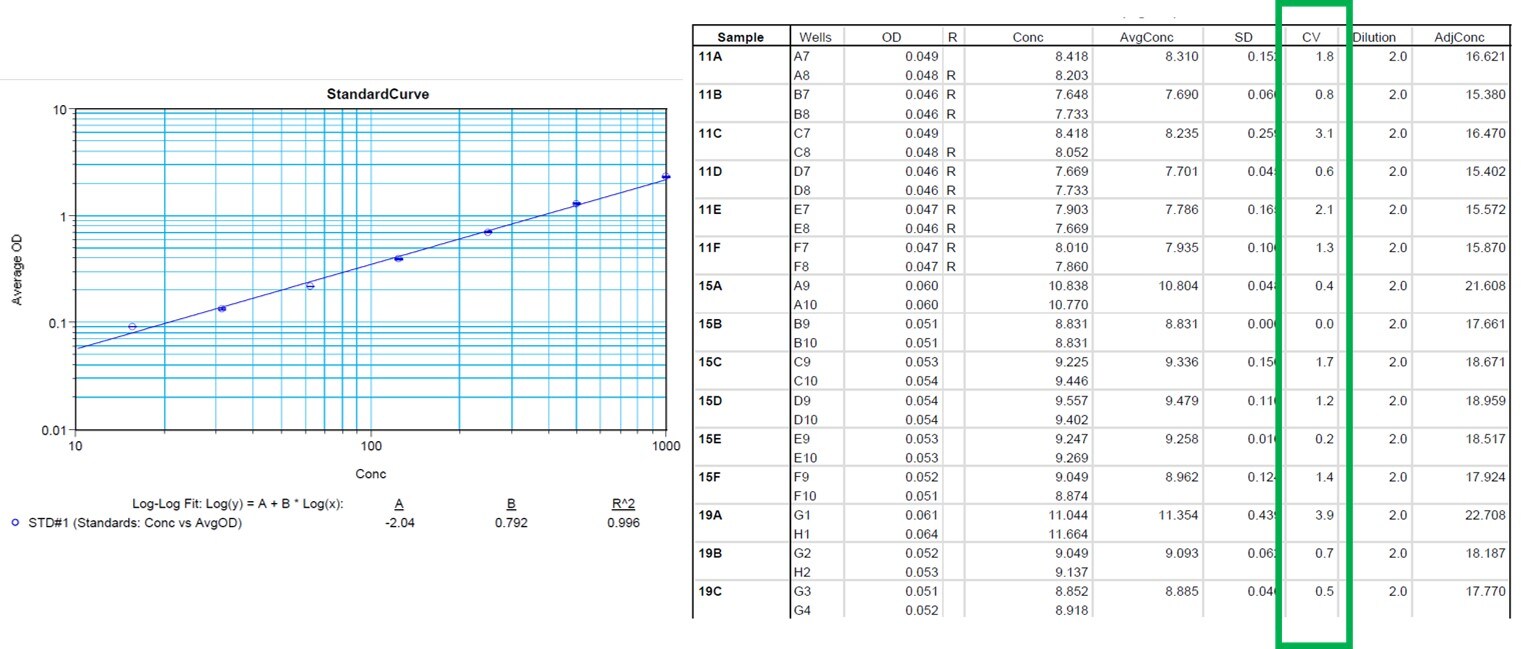

We tested IL-4 levels in a release assay performed in simulated body fluid. The standard curve was excellent and the CV values were all very low. We have used kits from other companies and found RnD systems kits to be superior to all other companies. The kits from RnD systems result in much lower background levels and much lower CV levels, which really helps with consistency and repeatability. The image shows the standard curve and the green outlines the low CV values.
