Recombinant Human IL-2 R beta Fc Chimera Avi-tag Protein, CF

Name: Recombinant Human IL-2 R beta Fc Chimera Avi-tag Protein, CF
Brand: R&D Systems
SKU: AVI10919
Price: 905 USD
Availability: InStock

R&D Systems | Catalog # AVI10919

Submit a review

Product Documents

Biotinylated

100% Guarantee

Product Specifications
Scientific Data
Preparation & Storage
Calculators
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

R&D Systems HEK293-derived Recombinant Human IL-2 R beta Fc Chimera Avi-tag Protein (AVI10919)
Quality control testing to verify active proteins with lot specific assays by in-house scientists
All R&D Systems proteins are covered with a 100% guarantee

Source

HEK293

Accession Number

P14784.1

Structure / Form

Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity

View all IL-2 R beta Proteins and Enzymes »

Learn more about Avi-tag Biotinylated Proteins

Product Specifications

Source

Human embryonic kidney cell, HEK293-derived human IL-2 R beta protein

Human IL-2 R beta (Ala27-Asp239) Accession # P14784.1	IEGRMD	Human IgG1 (Pro100-Lys330)	Avi-tag
N-terminus			C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Ala27

Predicted Molecular Mass

53 kDa

SDS-PAGE

60-70 kDa, under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA.
When Biotinylated Recombinant Human IL-2 R beta Fc Chimera Avi-tag (Catalog # AVI10919) is immobilized at 0.25 µg/mL (100 µL/well), Recombinant Human IL-15 (Catalog # 247-ILB) binds with an ED₅₀ of 0.50-4.00 ng/mL.

Scientific Data Images for Recombinant Human IL-2 R beta Fc Chimera Avi-tag Protein, CF

Biotinylated Recombinant Human IL-2 R beta Fc Chimera Avi-tag Protein Binding Activity.

When Biotinylated Recombinant Human IL-2 R beta Fc Chimera Avi-tag (Catalog # AVI10919) is immobilized at 0.25 µg/mL (100 µL/well), Recombinant Human IL-15 (247-ILB) binds with an ED₅₀ of 0.50-4.00 ng/mL.

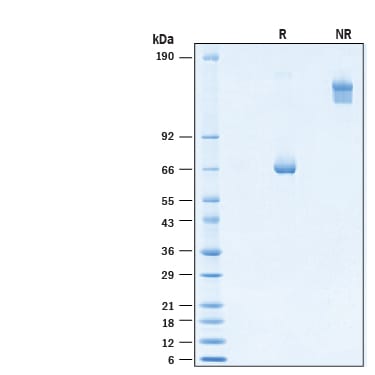

Biotinylated Recombinant Human IL-2 R beta Fc Chimera Avi-tag Protein SDS-PAGE.

2 μg/lane of Biotinylated Recombinant Human IL-2 R beta Fc Chimera Avi-tag Protein (Catalog # AVI10919) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 60-70 kDa and 120-140 kDa, respectively.

Formulation, Preparation, and Storage

AVI10919

Formulation	Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution	Reconstitute at 500 μg/mL in PBS.
Shipping	The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage	Use a manual defrost freezer and avoid repeated freeze-thaw cycles. 12 months from date of receipt, -20 to -70 °C as supplied. 1 month, 2 to 8 °C under sterile conditions after reconstitution. 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Background: IL-2 R beta

Interleukin-2 receptor subunit beta (IL-2 RB), also known as high affinity IL-2 receptor subunit beta, interleukin-15 receptor subunit beta, p70-75 (p75), and CD122, is a member of the cytokine receptor superfamily that plays a role in T cell-mediated immune responses (1, 3). Human IL-2 RB consists of an extracellular domain (ECD) containing a fibronectin type III domain and a WSXWS motif, a type I transmembrane domain, and a cytoplasmic tail. Within the ECD, mature human IL-2 RB shares 58% and 61% amino acid sequence identity with mouse and rat IL-2 RB, respectively. A soluble IL-2 RB (sIL-2 RB) has been identified in the culture supernatants of a human lymphoid cell line, YT, that displays IL-2 RB (5). Functional IL-2 receptors can exist in two affinity states on cell surfaces: the high affinity complex consisting of heterotrimers of the alpha, beta, and gamma chains and the intermediate affinity complex comprising heterodimers of the beta and gamma chains (2, 3). Individual beta chains and alpha chains exhibit low affinity IL-2 binding and the gamma chain alone does not bind IL-2. In addition to their involvement in IL-2 mediated signal transduction, both the beta chain and gamma chain have been shown to be required for IL-15 mediated signaling (4). At present, the function of IL-2 sR beta is unclear. Recombinant human sIL-2RB binds IL-2 with low affinity and is not an effective IL-2 antagonist on cells displaying the high or intermediate affinity IL-2 signaling receptors. Nevertheless, sIL-2 RB binds IL-15 with sufficient affinity to neutralize IL-15 biological activities. Our Avi-tag Biotinylated Recombinant Human IL‑2 RB features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.
