4-1BB is an inducible T cell surface protein belonging to the TNF receptor superfamily. It is alternatively known as TNFRSF9, CD137, and ILA. The 255 amino acid human 4-1BB is a type I transmembrane protein having in its extracellular domain four of the cysteine-rich motifs that are characteristic of the TNF receptor superfamily. The 30 KD glycoprotein exists both as a monomer and as a dimer on T cells. The human and mouse proteins share 60% amino acid identity. 4-1BB is absent from naive T cells, but it is upregulated and continually expressed following T cell activation. The natural ligand, 4-1BBL, is a member of the TNF superfamily and is expressed on activated antigen presenting cells including dendritic cells, macrophages, and B cells. Cross-linking of 4-1BB by 4-1BBL or by agonistic antibodies transmits a potent co-stimulatory signal that enhances the effect of other activating signals such as PHA or anti-CD3 antibodies. 4-1BB signals through the TFAF2‑NIK pathway resulting in activation of NF-kappa B and ultimately promoting proliferation and survival of T cells.
Human 4‑1BB/TNFRSF9/CD137 Biotinylated Antibody
R&D Systems | Catalog # BAF838
Key Product Details
Validated by
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Leu24-Gln186
Accession # Q07011
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human 4‑1BB/TNFRSF9/CD137 Biotinylated Antibody
Detection of 4‑1BB/TNFRSF9/ CD137 in PHA-treated Human T Cells by Flow Cytometry.
Human T cells were treated for 48 hours with 5 µg/mL PHA then stained with Human 4-1BB/TNFRSF9/CD137 Biotinylated Antigen Affinity-purified Polyclonal Antibody (Catalog # BAF838, filled histogram) or control antibody (Catalog # BAF108, open histogram), followed by Streptavidin-Allophycocyanin (Catalog # F0050).
4‑1BB/TNFRSF9/CD137 in Human PBMCs.
4-1BB/TNFRSF9/CD137 was detected in immersion fixed human peripheral blood mononuclear cells (PBMCs) using Goat Anti-Human 4-1BB/TNFRSF9/CD137 Biotinylated Antigen Affinity-purified Polyclonal Antibody (Catalog # BAF838) at 15 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Streptavidin (red ; Catalog # NL999) and counterstained with DAPI (blue). Specific staining was localized to plasma membrane and cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.
Detection of 4‑1BB/TNFRSF9/CD137 in Human Peripheral Blood Mononuclear Cells Stimulated With PHA and Monensin.
4‑1BB/TNFRSF9/CD137 was detected in fixed Human Peripheral Blood Mononuclear Cells stimulated with PHA and Monensin cells using Goat Anti-Human 4‑1BB/TNFRSF9/CD137 Biotinylated Antigen Affinity-purified Polyclonal Antibody (Catalog # BAF838) at 15 µg/ml for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red; Catalog # NL007) and counterstained with DAPI (blue). Specific staining was localized to the cytoplasm. View our protocol for Fluorescent ICC Staining of Non-adherent Cells.
Applications for Human 4‑1BB/TNFRSF9/CD137 Biotinylated Antibody
Flow Cytometry
Sample: PHA-treated Human T cells
Immunocytochemistry
Sample: Immersion fixed human peripheral blood mononuclear cells (PBMCs) stimulated with PHA and monensin
Western Blot
Sample: Recombinant Human 4‑1BB/TNFRSF9/CD137 Fc Chimera (Catalog # 838-4B)

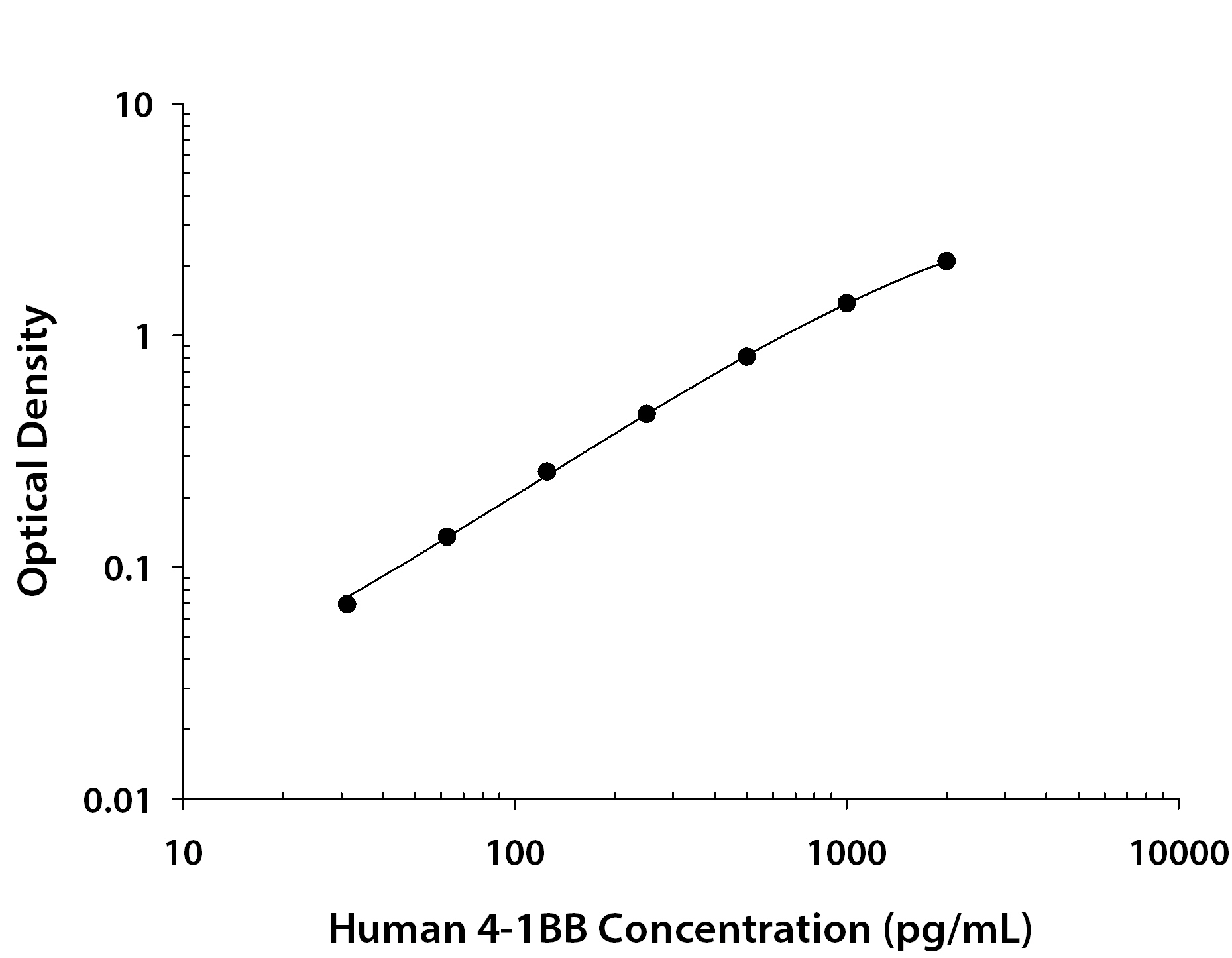

Human 4-1BB/TNFRSF9/CD137 Sandwich Immunoassay
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: 4-1BB/TNFRSF9/CD137
References
- Vinay, D. and B. Kwon (1998) Semin. Immunol. 10:481.
- Sica, G. and L. Chen (2000) Adv. Exp. Med. Biol. 465:355.
