Human CTGF/CCN2 DuoSet ELISA

R&D Systems | Catalog # DY9190-05

R&D Systems
100% Guarantee

Key Product Details

Assay Type

Solid Phase Sandwich ELISA

Assay Range

31.3-2000 pg/mL

Sample Type

Cell culture supernates, serum, and plasma
Note: Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet

Reactivity

Human

Human CTGF/CCN2 DuoSet ELISA Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits
View all CTGF/CCN2 ELISA Kits »

Product Summary for Human CTGF/CCN2 DuoSet ELISA

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human Connective Tissue Growth Factor (CTGF). The suggested diluent is suitable for the analysis of most cell culture supernate, serum, and plasma samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet.

Product Specifications

Assay Format

96-well strip plate (sold separately)

Detection Method

Colorimetric ELISA - 450nm (TMB)

Conjugate

Biotin

Specificity

Please see the product datasheet

Label

HRP

Kit Contents for Human CTGF/CCN2 DuoSet ELISA

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008C) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or equivalent

Reagent Diluent*

Blocking Buffer*

Substrate Solution: ELISA TMB Substrate (Catalog # DY999B or DY999B-250)

Stop Solution: Methanesulfonic acid (Catalog # DY994B or DY994B-250)

Microplates: (Catalog # DY990), or equivalent

Plate Sealers: (Catalog # DY992), or equivalent

*For the recommended Reagent Diluent and Blocking Buffer for a specific DuoSet ELISA Development Kit, refer to the product datasheet.

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CTGF/CCN2

CTGF belongs to the CCN (CYR61/CTGF/NOV) family of secreted proteins that share a common multimodular organization. Each protein contains an IGF-binding protein domain, a von Willebrand factor type C domain, a thrombospondin type I domain, and a cysteine knot domain. The multimodular CTGF has the ability to bind multiple ligands and has numerous effects on development, differentation, and disease. The C-terminal cysteine knot motif contains the HSPG (proteoglycan) and low density lipoprotein receptor (LDLR) binding sites that contribute to the adhesive and mitogenic properties of CTGF.

Long Name

Connective Tissue Growth Factor

Alternate Names

CCN2, CTGRP, Fisp12, HCS24, IGFBP-8, NOV2

Entrez Gene IDs

1490 (Human); 14219 (Mouse); 64032 (Rat)

Gene Symbol

CCN2

Additional CTGF/CCN2 Products

Product Documents for Human CTGF/CCN2 DuoSet ELISA

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human CTGF/CCN2 DuoSet ELISA

For research use only

Citations for Human CTGF/CCN2 DuoSet ELISA

Customer Reviews for Human CTGF/CCN2 DuoSet ELISA (3)

3.3 out of 5
3 Customer Ratings
5 Stars
0%
4 Stars
33%
3 Stars
67%
2 Stars
0%
1 Stars
0%

Have you used Human CTGF/CCN2 DuoSet ELISA?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 3 of 3 reviews Showing All
Filter By:
Clear Filters X
  • Human CTGF/CCN2 DuoSet ELISA
    Name: Anonymous
    Sample Tested: Serum
    Verified Customer | Posted 09/25/2024

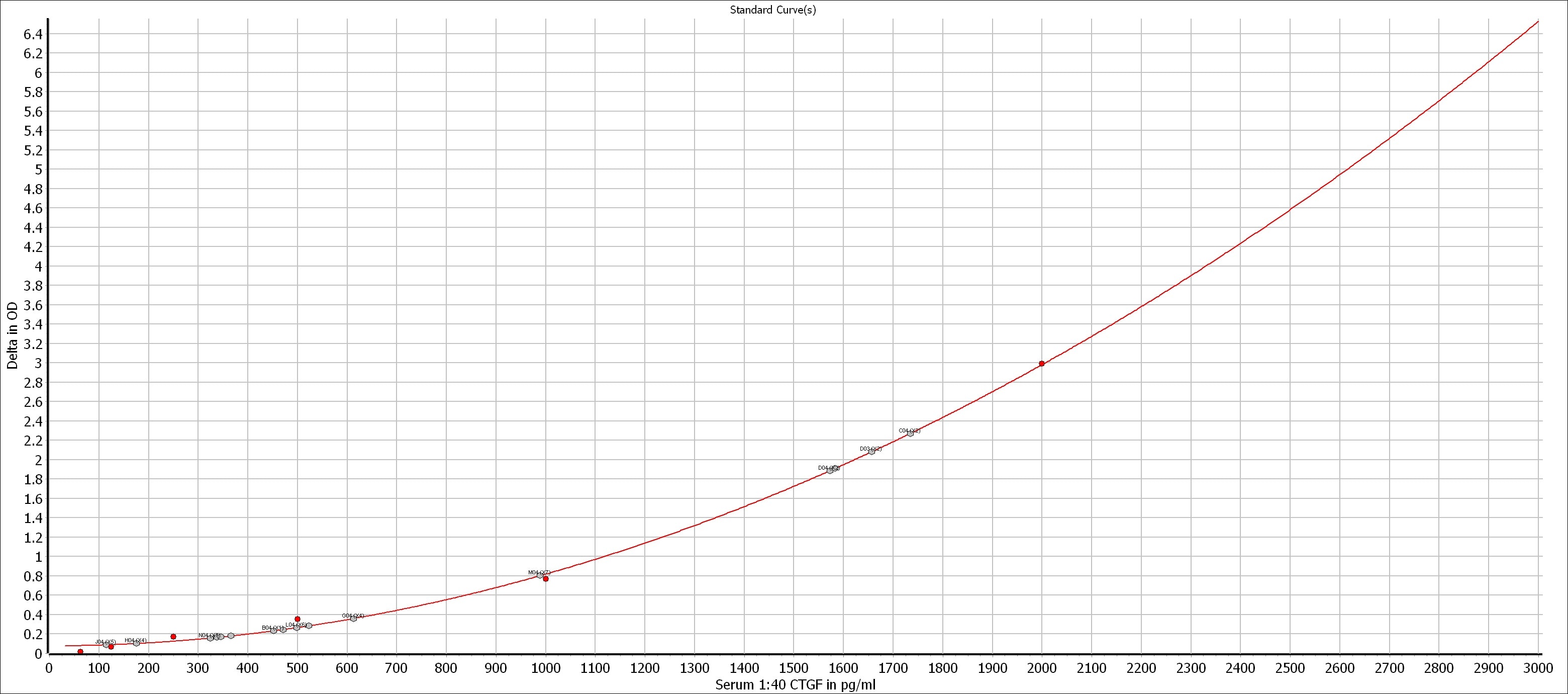

    Based on previous review, we diluted our samples 1:40. wide range of signals for samples
    Human CTGF/CCN2 DuoSet ELISA DY9190-05
  • Human CTGF/CCN2 DuoSet ELISA
    Name: Anonymous
    Sample Tested: Urine
    Verified Customer | Posted 03/22/2022

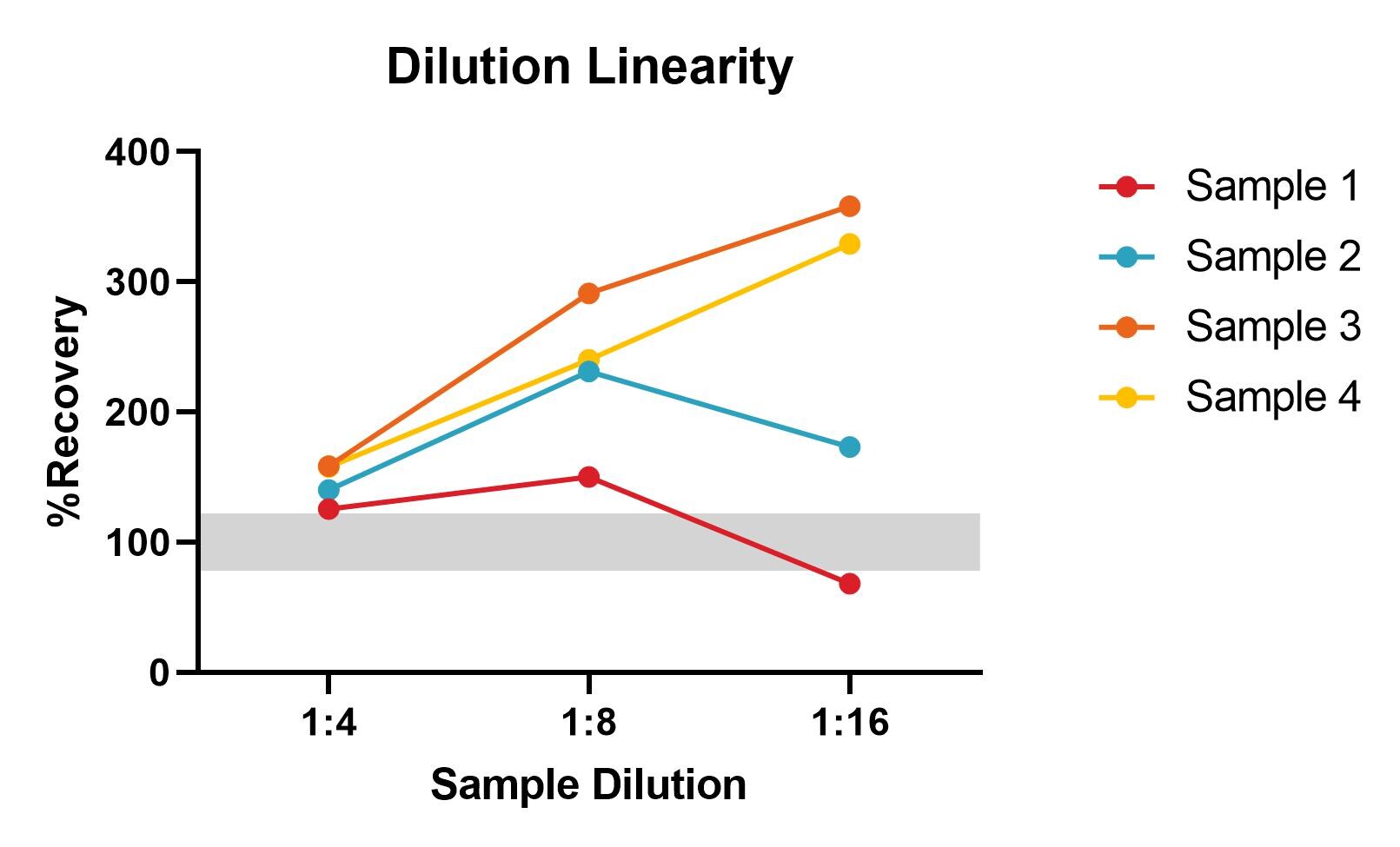

    Poor dilution linearity with urine but also saw a matrix effect with 4-fold urine at the higher end of the standard curve. The matrix effect can most likely be reduced by using 8-fold dilution or higher, but then our samples may be too dilute to measure CTGF concentration. DuoSets are a little hard to follow because the protocol and reagent dilution information is on three separate pieces of paper.
    Human CTGF/CCN2 DuoSet ELISA DY9190-05
  • Human CTGF/CCN2 DuoSet ELISA
    Name: Anonymous

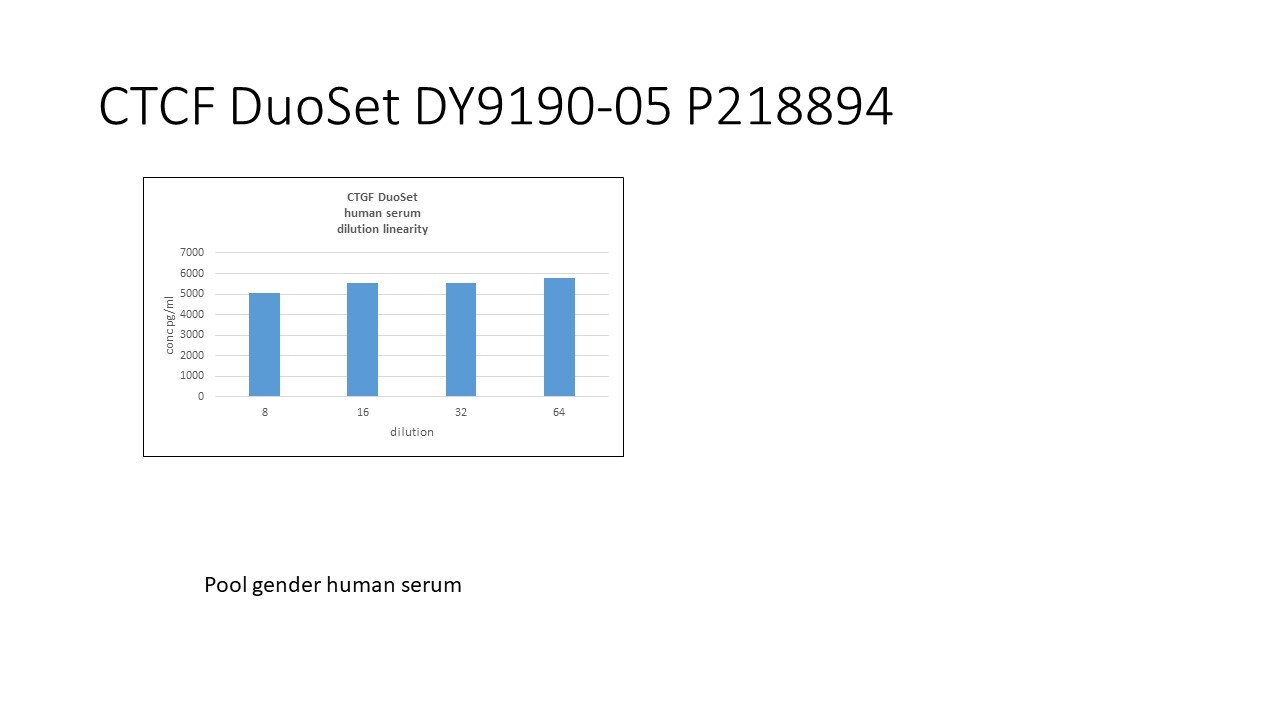

    Sample Tested: Human serum
    Verified Customer | Posted 04/07/2020
    Human CTGF/CCN2 DuoSet ELISA DY9190-05

There are no reviews that match your criteria.

Showing  1 - 3 of 3 reviews Showing All

Protocols

View specific protocols for Human CTGF/CCN2 DuoSet ELISA (DY9190-05):

GENERAL ELISA PROTOCOL

Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block plates by adding 300 μL Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.
  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs

No product specific FAQs exist for this product.

View all FAQs for ELISA Kits
