Human/Mouse FGF-16 Antibody


  • Species Reactivity
    Human, Mouse
  • Specificity
    Detects human FGF-16 in direct ELISAs and Western blots. In direct ELISAs, less than 1% cross-reactivity with recombinant human (rh) FGF acidic, rhFGF basic, rhFGF-3, -4, -5, -6, -7, -9, -10, -11, -12, -13, -17, -18, -19, -21, -23, recombinant mouse (rm) FGF-8b, and rmFGF-15 is observed.
  • Source
    Polyclonal Sheep IgG
  • Purification
    Antigen Affinity-purified
  • Immunogen
    E. coli-derived recombinant human FGF-16
    Ala2-Arg207
    Accession # O43320
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Endotoxin Level
    <0.10 EU per 1 μg of the antibody by the LAL method.
  • Label
    Unconjugated
Applications
  •
    Recommended
    Concentration
    Sample
  • Western Blot
    0.1 µg/mL
    Recombinant Human FGF‑16 (Catalog # 1212-FG)
  • Immunohistochemistry
    3-15 µg/mL
    See below
  • Immunocytochemistry
    5-15 µg/mL
    See below
  • Neutralization
    Measured by its ability to neutralize FGF‑16-induced proliferation in the NR6R‑3T3 mouse fibroblast cell line. Rizzino, A. et al. (1988) Cancer Res. 48:4266. The Neutralization Dose (ND50) is typically 3-9 µg/mL in the presence of 100 ng/mL Recombinant Human FGF‑16.
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Immunocytochemistry
FGF‑16 in Human iPS cells. FGF‑16 was detected in immersion fixed human induced pluripotent stem (iPS) cells differentiated into cardiomyocytes using Sheep Anti-Human/Mouse FGF‑16 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1212) at 8 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 493-conjugated Anti-Sheep IgG Secondary Antibody (green; Catalog # NL012) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. View our protocol for Fluorescent ICC Staining of Stem Cells on Coverslips.
Immunohistochemistry
FGF‑16 in Human Heart. FGF‑16 was detected in immersion fixed paraffin-embedded sections of human heart using Sheep Anti-Human/Mouse FGF‑16 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1212) at 3 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Sheep HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS019) and counterstained with hematoxylin (blue). Specific staining was localized to cardiomyocytes. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.
Immunohistochemistry
FGF‑16 in Mouse Embryo. FGF‑16 was detected in perfusion fixed frozen sections of mouse embryo (13 d.p.c.) using Sheep Anti-Human/Mouse FGF‑16 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1212) at 15 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Sheep HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS019) and counterstained with hematoxylin (blue). Specific staining was localized to roots of dorsal ganglia and spinal cord. View our protocol for Chromogenic IHC Staining of Frozen Tissue Sections.

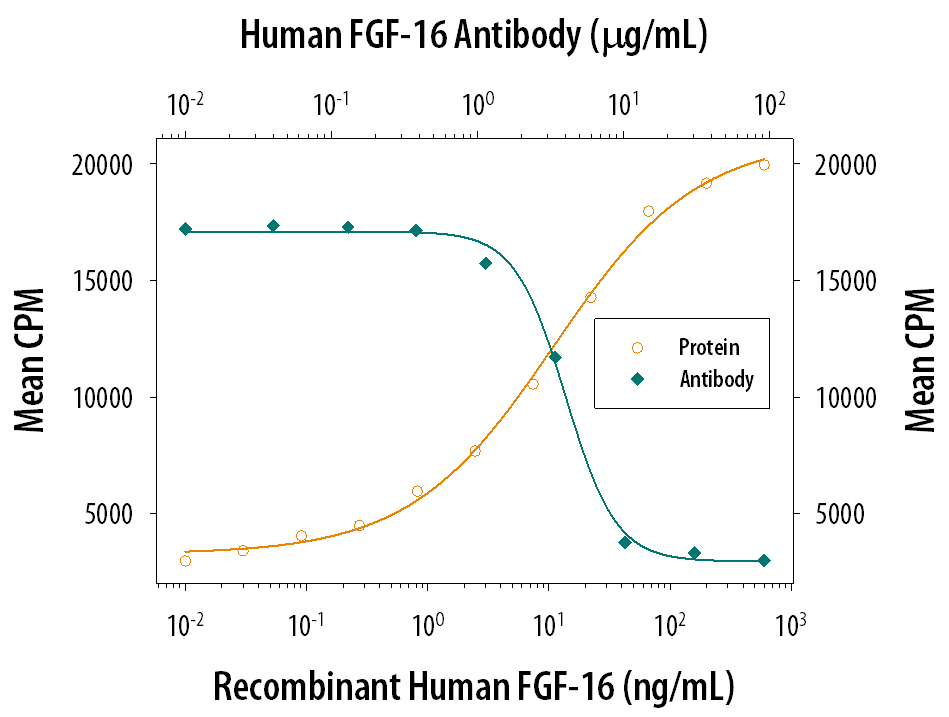

Cell Proliferation Induced by FGF‑16 and Neutralization by Human FGF‑16 Antibody. Recombinant Human FGF‑16 (Catalog # 1212-FG) stimulates proliferation in the NR6R‑3T3 mouse fibroblast cell line in a dose-dependent manner (orange line). Proliferation elicited by Recombinant Human FGF‑16 (100 ng/mL) is neutralized (green line) by increasing concentrations of Sheep Anti-Human/Mouse FGF‑16 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1212). The ND50 is typically 3-9 µg/mL.
Preparation and Storage
  • Reconstitution
    Reconstitute at 0.2 mg/mL in sterile PBS.
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: FGF-16

Fibroblast growth factor 16 (FGF-16) belongs to the large FGF family which has at least 23 members (1). All FGF family members are heparin-binding growth factors with a core 120 amino acid (aa) FGF domain that allows for a common tertiary structure. FGFs are expressed during embryonic development and in restricted adult tissues. They act on cells of mesodermal and neuroectodermal origin to regulate diverse physiologic functions including angiogenesis, cell growth, pattern formation, embryonic development, metabolic regulation, cell migration, neurotrophic effects and tissue repair (2, 3). Signaling receptors for FGFs are type I transmembrane receptor tyrosine kinases belonging to the immunoglobulin (Ig) superfamily. Four distinct but related classes of FGF receptors, FGF R1, 2, 3, and 4, exist. Through alternative splicing, multiple isoforms for FGF R1, 2 and 3, with distinct ligand recognition profiles, are also generated (3).

FGF-16 was originally identified in rat heart tissue by homology based polymerase chain reaction. Human FGF-16 cDNA predicts a 207 aa precursor protein with one N-linked glycosylation site. FGF-16 lacks a typical signal peptide, but is efficiently generated by mechanisms other than the classical protein secretion pathway. Among FGF family members, FGF-16 is most similar to FGF-9, sharing 73% aa sequence homology. Human FGF-16 shares 99% and 98.6% aa sequence identity with the mouse and rat FGF-16, respectively. In rat embryos, FGF-16 message is expressed predominantly in brown adipocytes. In adult animals, it is localized primarily in heart tissue. FGF-16 binds to and activates FGF receptor 4 (4). FGF-16 induces proliferation of primary adipocytes and oligodendrocytes in vitro and stimulates liver weight increase in vivo (4, 5). The expression pattern of FGF-16 and its effect on adipocyte proliferation suggest a role for this protein on the proliferation of embryonic brown adipose tissue (4).

  • References:
    1. Miyake, A. et al. (1998) Biochem. Biophys. Res. Com. 243:148.
    2. Goldfarb, M. (1996) Cytokine and Growth Factor Reviews 7:311.
    3. Green, P. et al. (1996) BioEssays 18:639.
    4. Konishi, M. et al. (2000) J. Biol. Chem. 275:12119.
    5. Danilenko, D.M. et al. (2000) Archiv. Biochem. Biophys. 361:34.
  • Long Name:
    Fibroblast Growth Factor 16
  • Entrez Gene IDs:
    8823 (Human)
  • Alternate Names:
    FGF16; FGF-16; fibroblast growth factor 16
