Glycoprotein 96 (gp96; also endoplasmin, GRP-94, TRA1 and HSP90B1) is a 94-100 kDa member of the HSP 90 family of proteins. Gp96 is a ubiquitously-expressed, ER resident protein, and is found in a preformed complex with BiP, CaBP1 and UDP-glucosyltransferase. This is a chaperone complex that binds unfolded protein substrates. When folded properly, the substrate is forwarded to calnexin-containing chaperone complexes that promote its maturation. Gp96 clients are restricted, and include disulfide-bonded integrins, TLRs, LDLR and CD180. Within the complex, gp96 exists as a disulfide-linked homodimer that may form higher-order oligomers. Gp96 also appears on the cell surface, and may serve as a receptor for bacteria. Mature human gp96 is a 782 amino acid (aa) membrane-associated protein (aa 22‑803). It is not a transmembrane protein, but utilizes an ER retention signal (aa 800-803) to interact with the ER membrane. The molecule possesses a HATPase‑C like region (aa 98-219), plus multiple ATP binding and two utilized phosphorylation sites. Over aa 503‑660, human gp96 shares 98% aa sequence identity with mouse gp96.
Human/Mouse/Rat gp96/HSP90B1 Antibody
R&D Systems | Catalog # AF7606
Key Product Details
Validated by
Knockout/Knockdown
Species Reactivity
Validated:
Human, Mouse, Rat
Cited:
Human, Mouse
Applications
Validated:
Knockout Validated, Immunohistochemistry, Western Blot
Cited:
Immunohistochemistry, ELISA Capture
Label
Unconjugated
Antibody Source
Polyclonal Sheep IgG
Loading...
Product Specifications
Immunogen
E. coli-derived recombinant human gp96/HSP90B1
Arg503-Arg660
Accession # P14625
Arg503-Arg660
Accession # P14625
Specificity
Detects human, mouse, and rat gp96/HSP90B1 in direct ELISAs and Western blots.
Clonality
Polyclonal
Host
Sheep
Isotype
IgG
Scientific Data Images for Human/Mouse/Rat gp96/HSP90B1 Antibody
Detection of Human, Mouse, and Rat gp96/HSP90B1 by Western Blot.
Western blot shows lysates of HeLa human cervical epithelial carcinoma cell line, A20 mouse B cell lymphoma cell line, and L6 rat myoblast cell line. PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Human/Mouse/Rat gp96/HSP90B1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7606) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for gp96/HSP90B1 at approximately 100 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.gp96/HSP90B1 in Human Mesothelioma Tissue.
gp96/HSP90B1 was detected in immersion fixed paraffin-embedded sections of human mesothelioma tissue using Sheep Anti-Human/Mouse/Rat gp96/HSP90B1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7606) at 1 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Sheep HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS019) and counterstained with hematoxylin (blue). Specific staining was localized to cytoplasm and plasma membrane. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.Western Blot Shows Human gp96/HSP90B1 Specificity by Using Knockout Cell Line.

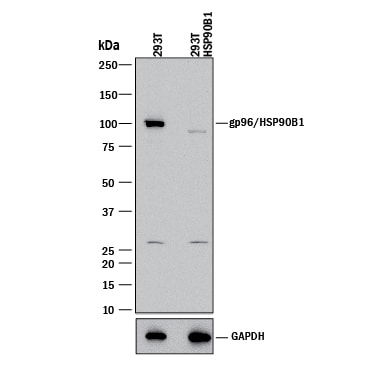

Western blot shows lysates of HEK293T human embryonic kidney parental cell line and gp96/HSP90B1 knockout HEK293T cell line (KO). PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Human/Mouse/Rat gp96/HSP90B1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7606) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for gp96/HSP90B1 at approximately 100 kDa (as indicated) in the parental HEK293T cell line, but is not detectable in knockout HEK293T cell line. GAPDH (Catalog # AF5718) is shown as a loading control. This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Applications for Human/Mouse/Rat gp96/HSP90B1 Antibody
Application
Recommended Usage
Immunohistochemistry
1-15 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human mesothelioma tissue
Sample: Immersion fixed paraffin-embedded sections of human mesothelioma tissue
Knockout Validated
Gp96/HSP90B1
is specifically detected in HEK293T human embryonic kidney parental cell line but is not detectable in
gp96/HSP90B1 knockout HEK293T cell line.
Western Blot
0.5 µg/mL
Sample: HeLa human cervical epithelial carcinoma cell line, A20 mouse B cell lymphoma cell line, and L6 rat myoblast cell line
Sample: HeLa human cervical epithelial carcinoma cell line, A20 mouse B cell lymphoma cell line, and L6 rat myoblast cell line
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: gp96/HSP90B1
Long Name
Heat Shock Protein 90 beta 1
Alternate Names
ECGP, Endoplasmin, Grp94, HSP90B1
Gene Symbol
HSP90B1
UniProt
