TAGLN (Transgelin; also 22 kDa Actin-binding protein, WS3-10 and Smooth muscle protein 22 alpha) is a 22-24 kDa cytosolic member of the calponin (calcium-binding and calmodulin-binding troponin T-like protein) family of molecules. It is expressed in both visceral and vascular smooth muscle, fibroblasts, cardiac myocytes, and potentially in breast duct plus prostate epithelium. TAGLN is associated with the actin stress fibers and appears to both suppress MMP-9 production, and downmodulate Ca++-independent smooth muscle contraction. Human TAGLN is 201 amino acids (aa) in length. It contains one CH/calponin homology domain (aa 24-137), and an actin-binding calponin-like repeat/CLIK (aa 175-200). There is one utilized phosphorylation site at Tyr193, plus two utilized acetylation sites in the N-terminus. Three potential isoform variants are reported, one that shows a alternative start site at Met111, a second that contains a new start site 10 aa upstream of the standard site, and a third that possesses a 58 aa substitution for aa 97-201. Full-length human and mouse TAGLN share 97% aa sequence identity.
Human/Mouse/Rat Transgelin/TAGLN Antibody
R&D Systems | Catalog # AF7886
Key Product Details
Species Reactivity
Validated:
Human, Mouse, Rat
Cited:
Human
Applications
Validated:
Immunohistochemistry, Western Blot, Immunocytochemistry, Simple Western
Cited:
Immunohistochemistry, Immunohistochemistry-Paraffin
Label
Unconjugated
Antibody Source
Polyclonal Sheep IgG
Loading...
Product Specifications
Immunogen
E. coli-derived recombinant human Transgelin/TAGLN
Ala2-Ser201
Accession # Q01995
Ala2-Ser201
Accession # Q01995
Specificity
Detects human, mouse, and rat Transgelin/TAGLN in Western blots. In direct ELISAs, less than 5% cross-reactivity with recombinant human (rh) TAGLN2 and rhTAGLN3 is observed.
Clonality
Polyclonal
Host
Sheep
Isotype
IgG
Scientific Data Images for Human/Mouse/Rat Transgelin/TAGLN Antibody
Detection of Mouse and Rat Transgelin/TAGLN by Western Blot.
Western blot shows lysates of mouse uterus tissue and rat uterus tissue. PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Human/Mouse/Rat Transgelin/TAGLN Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7886) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). Specific bands were detected for Transgelin/TAGLN at approximately 18-22 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Transgelin/TAGLN in MCF 10A Human Cell Line.
Transgelin/TAGLN was detected in immersion fixed MCF 10A human breast epithelial cell line using Sheep Anti-Human/Mouse/Rat Transgelin/TAGLN Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7886) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; Catalog # NL010) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.Transgelin/TAGLN in Human Liver Cancer Tissue.
Transgelin/TAGLN was detected in immersion fixed paraffin-embedded sections of human liver cancer tissue using Sheep Anti-Human/Mouse/Rat Transgelin/TAGLN Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7886) at 1.7 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Sheep HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS019) and counterstained with hematoxylin (blue). Specific staining was localized to connective tissue. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.Detection of Mouse Transgelin/TAGLN by Simple WesternTM.

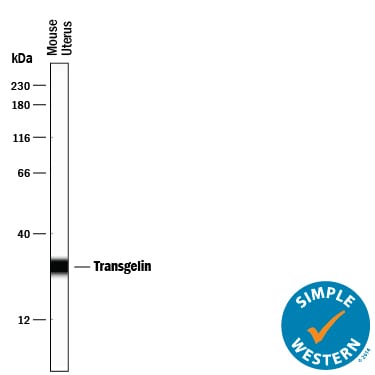

Simple Western lane view shows lysates of mouse uterus tissue, loaded at 0.2 mg/mL. A specific band was detected for Transgelin/TAGLN at approximately 29 kDa (as indicated) using 25 µg/mL of Sheep Anti-Human/Mouse/Rat Transgelin/TAGLN Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7886) followed by 1:50 dilution of HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.Applications for Human/Mouse/Rat Transgelin/TAGLN Antibody
Application
Recommended Usage
Immunocytochemistry
5-15 µg/mL
Sample: Immersion fixed MCF 10A human breast epithelial cell line
Sample: Immersion fixed MCF 10A human breast epithelial cell line
Immunohistochemistry
5-15 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human liver cancer tissue
Sample: Immersion fixed paraffin-embedded sections of human liver cancer tissue
Simple Western
25 µg/mL
Sample: Mouse uterus tissue
Sample: Mouse uterus tissue
Western Blot
0.5 µg/mL
Sample: Mouse uterus tissue and rat uterus tissue
Sample: Mouse uterus tissue and rat uterus tissue
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Transgelin/TAGLN
Alternate Names
SM22 alpha, TAGLN, WS3-10
Gene Symbol
TAGLN
UniProt
Additional Transgelin/TAGLN Products
Product Documents for Human/Mouse/Rat Transgelin/TAGLN Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human/Mouse/Rat Transgelin/TAGLN Antibody
For research use only
Related Research Areas
Citations for Human/Mouse/Rat Transgelin/TAGLN Antibody
Customer Reviews for Human/Mouse/Rat Transgelin/TAGLN Antibody
There are currently no reviews for this product. Be the first to review Human/Mouse/Rat Transgelin/TAGLN Antibody and earn rewards!
Have you used Human/Mouse/Rat Transgelin/TAGLN Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
