Human Nephrin DuoSet ELISA

R&D Systems | Catalog # DY4269-05

R&D Systems
100% Guarantee

Key Product Details

Assay Type

Solid Phase Sandwich ELISA

Assay Range

156-10000 pg/mL

Sample Type

Cell culture supernates, serum, and plasma
Note: Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet

Reactivity

Human

Human Nephrin DuoSet ELISA Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits
View all Nephrin ELISA Kits »

Product Summary for Human Nephrin DuoSet ELISA

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human Nephrin. The suggested diluent is suitable for the analysis of most cell culture supernate, cell lysate, serum, and plasma samples. Diluents for complex matrices, such as cell lysate, serum, and plasma, should be evaluated prior to use in this DuoSet.

Product Specifications

Assay Format

96-well strip plate (sold separately)

Detection Method

Colorimetric ELISA - 450nm (TMB)

Conjugate

Biotin

Specificity

Please see the product datasheet

Label

HRP

Scientific Data Images for Human Nephrin DuoSet ELISA

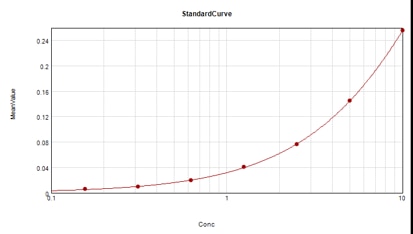

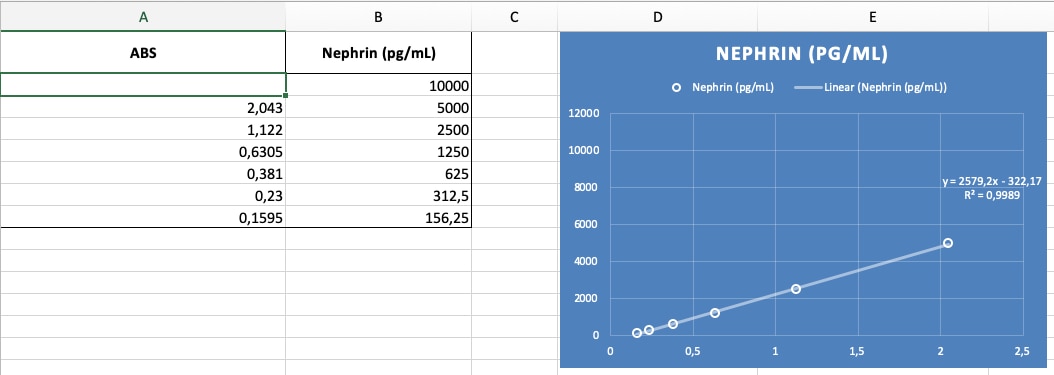

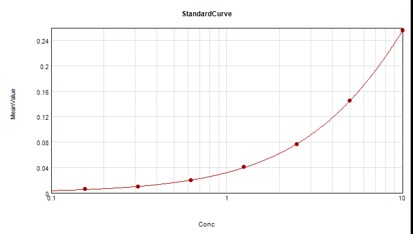

Human Nephrin ELISA Standard Curve

Human Nephrin ELISA Standard Curve

Kit Contents for Human Nephrin DuoSet ELISA

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008C) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or equivalent

Reagent Diluent*

Blocking Buffer*

Substrate Solution: ELISA TMB Substrate (Catalog # DY999B or DY999B-250)

Stop Solution: Methanesulfonic acid (Catalog # DY994B or DY994B-250)

Microplates: (Catalog # DY990), or equivalent

Plate Sealers: (Catalog # DY992), or equivalent

*For the recommended Reagent Diluent and Blocking Buffer for a specific DuoSet ELISA Development Kit, refer to the product datasheet.

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Nephrin

Nephrin, also known as renal glomerulus-specific cell adhesion receptor and nephrosis 1 (NPHS1) is a 185 - 200 kDa type I transmembrane protein belonging to the immunoglobulin (Ig) superfamily. It is expressed on podocytes and is an essential component of the interpodocyte-spanning slit diaphragm complex. Nephrin forms cis-hetero-oligomeric complexes with Neph1, followed by trans-homophilic interaction with Nephrin on opposing cells. Mutations in the Nephrin gene is the pathogenic cause of congenital nephrotic syndrome. Mature human Nephrin contains a 1033 aa extracellular region and a 165 aa cytoplasmic tail. One potential soluble splice form of nephrin is known where aas 1056 - 1095 are deleted, eliminating the transmembrane region. Over aa 23 - 1029, human Nephrin shares 84% and 89% aa identity with mouse and canine Nephrin, respectively.

Alternate Names

CNF, NPHS1

Entrez Gene IDs

4868 (Human); 54631 (Mouse); 64563 (Rat)

Gene Symbol

NPHS1

Additional Nephrin Products

Product Documents for Human Nephrin DuoSet ELISA

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Human Nephrin DuoSet ELISA

For research use only

Related Research Areas

Immunoglobulin Superfamily CAMs

Citations for Human Nephrin DuoSet ELISA

Customer Reviews for Human Nephrin DuoSet ELISA (3)

4 out of 5
3 Customer Ratings
5 Stars
33%
4 Stars
33%
3 Stars
33%
2 Stars
0%
1 Stars
0%

Have you used Human Nephrin DuoSet ELISA?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 3 of 3 reviews Showing All
Filter By:
Clear Filters X
  • Human Nephrin DuoSet ELISA
    Name: Anonymous
    Sample Tested: Plasma and Urine
    Verified Customer | Posted 09/24/2023

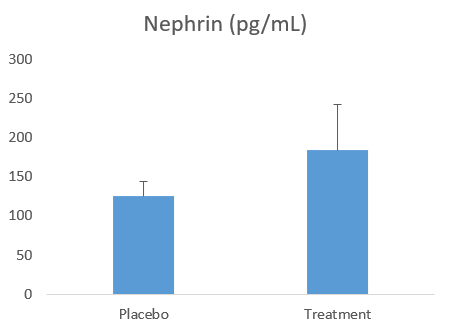

    Tested plasma at 20-fold dilution and urine at 2-fold dilution.
    Human Nephrin DuoSet ELISA DY4269-05
  • Human Nephrin DuoSet ELISA
    Name: Anonymous
    Sample Tested: Urine
    Verified Customer | Posted 11/07/2022
    Human Nephrin DuoSet ELISA DY4269-05
  • Human Nephrin DuoSet ELISA
    Name: Gdayllon Meneses
    Sample Tested: Urine
    Verified Customer | Posted 02/18/2020
    Human Nephrin DuoSet ELISA DY4269-05

There are no reviews that match your criteria.

Showing  1 - 3 of 3 reviews Showing All

Protocols

View specific protocols for Human Nephrin DuoSet ELISA (DY4269-05):

GENERAL ELISA PROTOCOL

Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block plates by adding 300 μL of Block Buffer to each well. Incubate at room temperature for a minimum of 1 hour.
  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.
