Western blot shows lysates of human placenta tissue and human kidney tissue. PVDF membrane was probed with 0.5 µg/mL of Mouse Anti-Human TINAGL1 Monoclonal Antibody (Catalog # MAB7185) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for TINAGL1 at approximately 55 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

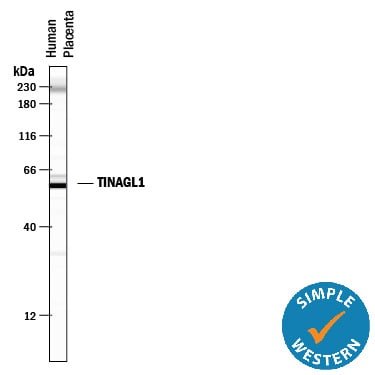

Simple Western lane view shows lysates of human placenta tissue, loaded at 0.5 mg/mL. A specific band was detected for TINAGL1 at approximately 59 kDa (as indicated) using 5 µg/mL of Mouse Anti-Human TINAGL1 Monoclonal Antibody (Catalog # MAB7185). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.
Non-specific interaction with the 230 kDa Simple Western standard may be seen with this antibody.
Preparation and Storage
Sterile PBS to a final concentration of 0.5 mg/mL.
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.
TINAGL1 (Tubulointerstitial nephritis antigen-like 1; also TIN-ag-RP, AZ-1 and LCN7) is a 54-57 kDa glycoprotein member of the peptidase C1 family of molecules. It is secreted by renal tubule epithelium, zona glomerulosa cells, vascular smooth muscle and striated muscle cells. TINAGL1 may play a role in the spatial and temporal development of the steroid component of the adrenal, in part by suppressing the expression of CYP11B1. Human TINAGL1 is synthesized as a 467 amino acid (aa) precursor. It contains a 21 aa signal sequence and a 446 aa mature region (aa 22-467). Within the mature region is an SMB (somatomedin B) domain (aa 50-98), one vWFC domain (aa 105-140), and a nonenzymatic peptidase C1A region (aa 204-455). There are multiple potential isoform variants. One contains an alternative start site at Met106, another shows a deletion of aa 126-156, and a third possesses a 60 aa substitution for aa 1-194, coupled to a 38 aa insertion after Gly286, and a 16 aa substitution for aa 365-467. Undefined forms of 40-42 kDa and 22 kDa have been noted in TINAGL1-transfected cell supernatant subjected to SDS-PAGE. Over aa 22‑464, human TINAGL1 shares 90% aa identity with mouse TINAGL1.
The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.
