B7-H2, also called B7RP-1 and ICOSL, is a 60 kDa member of the B7 family of immune costimulatory proteins. It is expressed on resting B cells, dendritic cells, monocytes, alveolar epithelial cells, and placental trophoblasts. B7-H2 interactions with ICOS promote lymphocyte differentiation and activation. Within the ECD, mouse B7-H2 shares 49% and 70% aa sequence identity with human and rat B7-H2, respectively.
Key Product Details
Species Reactivity
Mouse
Applications
Blockade of Receptor-ligand Interaction, Neutralization, Flow Cytometry, CyTOF-ready
Label
Unconjugated
Antibody Source
Monoclonal Rat IgG2A Clone # 987602
Loading...
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse B7-H2
Met1-Lys279
Accession # Q9JHJ8
Met1-Lys279
Accession # Q9JHJ8
Specificity
Detects mouse B7-H2 in direct ELISAs.
Clonality
Monoclonal
Host
Rat
Isotype
IgG2A
Endotoxin Level
<0.10 EU per 1 μg of the antibody by the LAL method.
Scientific Data Images for Mouse B7‑H2 Antibody
ICOS binding to Mouse B7-H2-transfected HEK293 Human Cell Line is Blocked by Mouse B7-H2 Antibody.
In a functional flow cytometry test, Recombinant Mouse ICOS Fc Chimera (Catalog # 168-CS, 500 ng/mL) binds to HEK293 human embryonic kidney cell line transfected with recombinant mouse B7-H2 (black dotted line). Binding is completely blocked (orange histogram) by 0.5 µg/mL of Rat Anti-Mouse B7-H2 Monoclonal Antibody (Catalog # MAB10083). Rat IgG2A Isotype Control (Catalog # MAB006) at 0.5 µg/mL was used as a control (blue line). Ligand binding was detected by staining cells with Mouse Anti-Human IgG Fc APC-conjugated Monoclonal Antibody (Catalog # FAB110A).

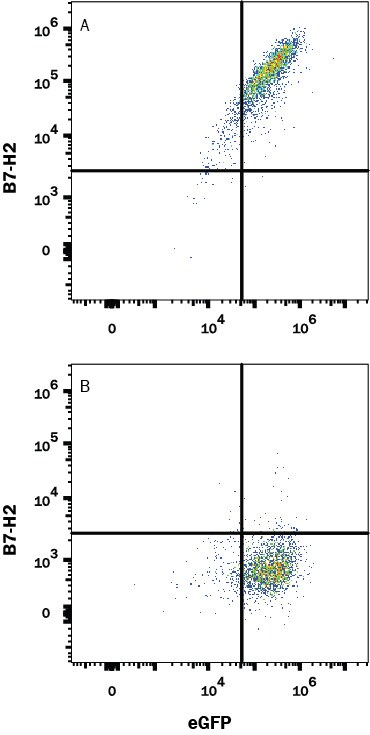

Detection of Mouse B7-H2 in HEK293 Human Cell Line Transfected with Mouse B7-H2 and eGFP by Flow Cytometry.
HEK293 human embryonic kidney cell line transfected with (A) mouse B7-H2 or (B) irrelevant transfectants and eGFP was stained with Rat Anti-Mouse B7-H2 Monoclonal Antibody (Catalog # MAB10083) followed by APC-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0113). Quadrant markers were set based on control antibody staining (Catalog # MAB006). View our protocol for Staining Membrane-associated Proteins.

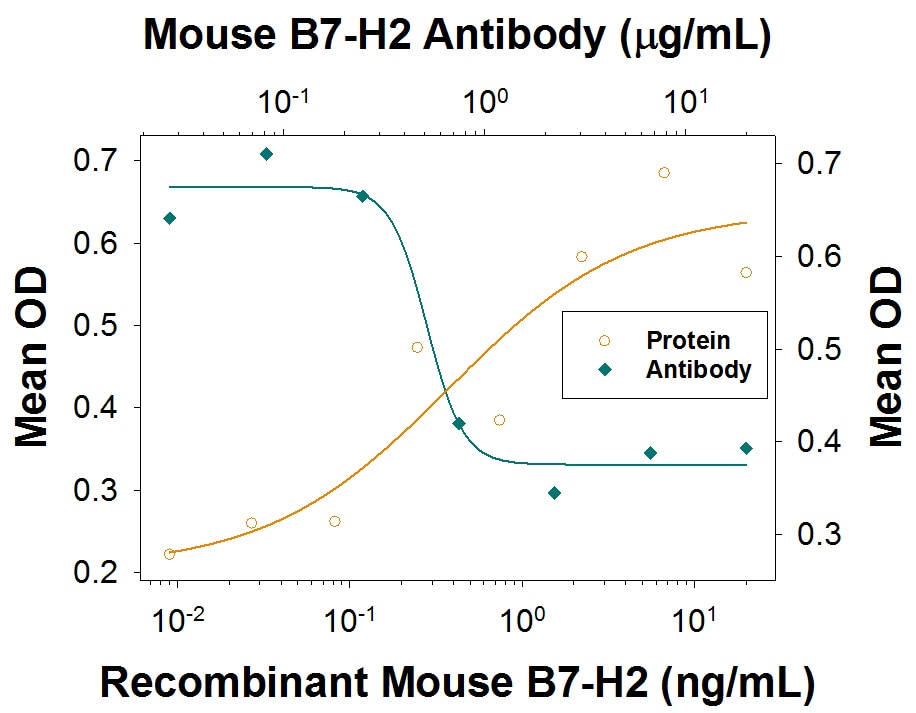

IL-4 Secretion Induced by B7-H2 and Neutralization by Mouse B7-H2 Antibody.
Recombinant Mouse B7-H2 (Catalog # 8127-B7) induces IL-4 secretion in the D10.G4.1 mouse helper T cell line in the presence of Rat Anti-Mouse CD3 Monoclonal Antibody (Catalog # MAB4841) in a dose-dependent manner (orange line), as measured by the Mouse IL-4 Quantikine ELISA Kit (Catalog # M4000B). Under these conditions, IL-4 secretion elicited by B7-H2 (2.5 µg/mL) is neutralized (green line) by increasing concentrations of Rat Anti-Mouse B7-H2 Monoclonal Antibody (Catalog # MAB10083). The ND50 is typically 0.3-1.8 µg/mL.Applications for Mouse B7‑H2 Antibody
Application
Recommended Usage
Blockade of Receptor-ligand Interaction
0.5 µg/106 cells
Sample: In a functional flow cytometry test, 0.5 μg/mL of Rat Anti-Mouse B7-H2 Antibody(Catalog # MAB10083) will block the binding of 500 ng/mL Recombinant Mouse ICOS Fc Chimera (Catalog # 168-CS) to HEK293 human embryonic kidney cell line transfected with recombinant mouse B7-H2.
Sample: In a functional flow cytometry test, 0.5 μg/mL of Rat Anti-Mouse B7-H2 Antibody(Catalog # MAB10083) will block the binding of 500 ng/mL Recombinant Mouse ICOS Fc Chimera (Catalog # 168-CS) to HEK293 human embryonic kidney cell line transfected with recombinant mouse B7-H2.
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Flow Cytometry
0.25 µg/106 cells
Sample: HEK293 Human Cell Line Transfected with Mouse B7-H2 and eGFP
Sample: HEK293 Human Cell Line Transfected with Mouse B7-H2 and eGFP
Neutralization
Measured by its ability to neutralize B7-H2-induced IL-4 secretion in the D10.G4.1 mouse helper T cell line. The Neutralization Dose (ND50) is typically 0.3-1.8 μg/mL in the presence of 2.5 ng/mL Recombinant Mouse B7-H2 and Rat Anti-Mouse CD3 Monoclonal Antibody.
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: B7-H2
Long Name
B7 Homolog 2
Alternate Names
B7H2, B7RP-1, CD275, GL50, ICOSL, ICOSLG
Gene Symbol
ICOSLG
UniProt
Additional B7-H2 Products
Product Documents for Mouse B7‑H2 Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Mouse B7‑H2 Antibody
For research use only
Customer Reviews for Mouse B7‑H2 Antibody
There are currently no reviews for this product. Be the first to review Mouse B7‑H2 Antibody and earn rewards!
