Mouse Pro-MMP-9 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Mouse Pro-MMP-9 ELISA Standard Curve
2 Images
Product Details
Citations (15)
Supplemental Products

Mouse Pro-MMP-9 Quantikine ELISA Kit Summary

Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (25 uL), Serum (10 uL), Platelet-poor EDTA Plasma (10 uL), Platelet-poor Heparin Plasma (10 uL)
14 pg/mL
Assay Range
31.3 - 2,000 pg/mL (Cell Culture Supernates, Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma)
Natural and recombinant mouse Pro-MMP-9. This kit recognizes Pro-MMP-9 when complexed with TIMP-1 but does not recognize active mouse MMP-9.
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Mouse Pro-MMP-9 Immunoassay is a 4.5 hour solid phase ELISA designed to measure free and TIMP-1 bound mouse Pro-MMP-9 in cell culture supernates, serum, and platelet-poor plasma. It contains NS0-expressed recombinant mouse Pro-MMP-9 and antibodies raised against the recombinant factor. Natural mouse Pro-MMP-9 showed dose-response curves that were parallel to the standard curves obtained using the recombinant Quantikine kit standards, indicating that this kit can be used to determine relative levels of natural mouse Pro-MMP-9.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (pg/mL) 126 206 1063 133 230 1073
Standard Deviation 3.36 7.53 28.6 11 17.5 55.2
CV% 2.7 3.7 2.7 8.3 7.6 5.1


The recovery of mouse Pro-MMP-9 spiked to three levels throughout the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Samples (n=4) 101 82-117

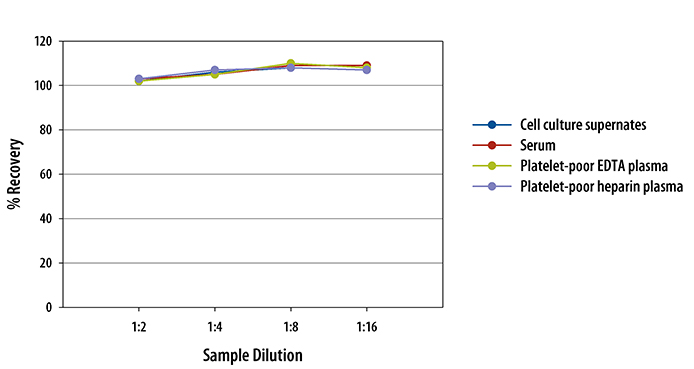

To assess the linearity of the assay, samples containing high concentrations of mouse Pro-MMP-9 were diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Mouse Pro-MMP-9 ELISA Linearity

Scientific Data

Mouse Pro-MMP-9 ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: MMP-9

The matrix metalloproteinases (MMPs) consist of 24 known human zinc proteases with essential roles in breaking down components of the extracellular matrix (ECM). Additional MMP substrates include cytokines, chemokines, growth factors and binding proteins, cell/cell adhesion molecules, and other proteinases. With a few exceptions, MMPs share common structural motifs including a pro-peptide domain, a catalytic domain, a hinge region, and a hemopexin-like domain. Synthesized as pro-enzymes, most MMPs are secreted before conversion to their active form. MMP activities are modulated on several levels including transcription, pro-enzyme activation, or by their endogenous inhibitors, tissue inhibitors of metalloproteinases (TIMPs). A subset of MMPs are associated with membranes and designated as membrane-type metalloproteinases (MT-MMP).

Long Name:
Matrix Metalloproteinase 9
Entrez Gene IDs:
4318 (Human); 17395 (Mouse); 81687 (Rat); 102117693 (Cynomolgus Monkey)
Alternate Names:
92 kDa gelatinase; 92 kDa type IV collagenase; CLG4B; EC 3.4.24; EC; Gelatinase B; GELB; macrophage gelatinase; MANDP2; matrix metallopeptidase 9; matrix metalloproteinase 9; matrix metalloproteinase-9; MMP9; MMP-9; type V collagenase
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Citations for Mouse Pro-MMP-9 Quantikine ELISA Kit

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

15 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. Neutrophils suppress intraluminal NK-mediated tumor cell clearance and enhance extravasation of disseminated carcinoma cells
    Authors: A Spiegel, MW Brooks, S Houshyar, F Reinhardt, M Ardolino, E Fessler, MB Chen, JA Krall, J DeCock, IK Zervantona, A Iannello, Y Iwamoto, V Cortez-Ret, RD Kamm, MJ Pittet, DH Raulet, RA Weinberg
    Cancer Discov, 2016-04-12;0(0):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  2. PGI(2) signaling inhibits antigen uptake and increases migration of immature dendritic cells.
    Authors: Toki S, Goleniewska K, Huckabee M, Zhou W, Newcomb D, FitzGerald G, Lawson W, Peebles R
    J Leukoc Biol, 2013-04-26;94(1):77-88.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  3. Neutrophil-derived matrix metalloproteinase-9 is a potent activator of trypsinogen in acinar cells in acute pancreatitis.
    Authors: Awla D, Abdulla A, Syk I, Jeppsson B, Regner S, Thorlacius H
    J. Leukoc. Biol., 2011-11-18;91(5):711-9.
    Species: Mouse
    Sample Types: Plasma
  4. TIEG1 inhibits breast cancer invasion and metastasis by inhibition of epidermal growth factor receptor (EGFR) transcription and the EGFR signaling pathway.
    Authors: Jin W, Chen BB, Li JY, Zhu H, Huang M, Gu SM, Wang QQ, Chen JY, Yu S, Wu J, Shao ZM
    Mol. Cell. Biol., 2011-10-24;32(1):50-63.
    Species: Mouse
    Sample Types: Serum
  5. Matrix metalloproteinase (MMP)-13 regulates mammary tumor-induced osteolysis by activating MMP9 and transforming growth factor-beta signaling at the tumor-bone interface.
    Authors: Nannuru KC, Futakuchi M, Varney ML
    Cancer Res., 2010-04-20;70(9):3494-504.
    Species: Mouse
    Sample Types: Tissue Homogenates
  6. IFN-beta inhibits dendritic cell migration through STAT-1-mediated transcriptional suppression of CCR7 and matrix metalloproteinase 9.
    Authors: Yen JH, Kong W, Ganea D
    J. Immunol., 2010-02-26;184(7):3478-86.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  7. Celastrol suppresses allergen-induced airway inflammation in a mouse allergic asthma model.
    Authors: Kim DY, Park JW, Jeoung D, Ro JY
    Eur. J. Pharmacol., 2009-04-05;612(1):98-105.
    Species: Mouse
    Sample Types: BALF
  8. Osteopontin deficiency protects against airway remodeling and hyperresponsiveness in chronic asthma.
    Authors: Simoes DC, Xanthou G, Petrochilou K, Panoutsakopoulou V, Roussos C, Gratziou C
    Am. J. Respir. Crit. Care Med., 2009-02-20;179(10):894-902.
    Species: Mouse
    Sample Types: Tissue Homogenates
  9. Retinoic acid decreases adherence of murine myeloid dendritic cells and increases production of matrix metalloproteinase-9.
    Authors: Lackey DE, Ashley SL, Davis AL, Hoag KA
    J. Nutr., 2008-08-01;138(8):1512-9.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  10. Targeting the chemotactic function of CD147 reduces collagen-induced arthritis.
    Authors: Damsker JM, Okwumabua I, Pushkarsky T, Arora K, Bukrinsky MI, Constant SL
    Immunology, 2008-06-14;126(1):55-62.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  11. Dopamine regulates endothelial progenitor cell mobilization from mouse bone marrow in tumor vascularization.
    Authors: Chakroborty D, Chowdhury UR, Sarkar C, Baral R, Dasgupta PS, Basu S
    J. Clin. Invest., 2008-04-01;118(4):1380-9.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  12. Atheroprotective role of interleukin-6 in diet- and/or pathogen-associated atherosclerosis using an ApoE heterozygote murine model.
    Authors: Madan M, Bishayi B, Hoge M, Amar S
    Atherosclerosis, 2007-04-06;197(2):504-14.
    Species: Mouse
    Sample Types: Serum
  13. Metalloelastase (MMP-12) induced inflammatory response in mice airways: effects of dexamethasone, rolipram and marimastat.
    Authors: Nenan S, Lagente V, Planquois JM, Hitier S, Berna P, Bertrand CP, Boichot E
    Eur. J. Pharmacol., 2006-12-12;559(1):75-81.
    Species: Mouse
    Sample Types: Tissue Homogenates
  14. Functional relevance of the IL-23-IL-17 axis in lungs in vivo.
    Authors: Ivanov S, Bozinovski S, Bossios A, Valadi H, Vlahos R, Malmhall C, Sjostrand M, Kolls JK, Anderson GP, Linden A
    Am. J. Respir. Cell Mol. Biol., 2006-12-01;36(4):442-51.
    Species: Mouse
    Sample Types: BALF
  15. Expression of matrix metalloproteinases subsequent to urogenital Chlamydia muridarum infection of mice.
    Authors: Ramsey KH, Sigar IM, Schripsema JH, Shaba N, Cohoon KP
    Infect. Immun., 2005-10-01;73(10):6962-73.
    Species: Mouse
    Sample Types: Tissue Homogenates
