Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human, Primate - Chlorocebus pygerythrus (Vervet Monkey), Primate - Macaca mulatta (Rhesus Macaque)

Applications

Validated:

Flow Cytometry

Cited:

Flow Cytometry, Immunocytochemistry, CAR-T (Flow Cytometry)

Label

Fluorescein (Excitation = 488 nm, Emission = 515-545 nm)

Antibody Source

Monoclonal Mouse IgG2A Clone # 150503
View all CCR7 Primary Antibodies »

Product Specifications

Immunogen

Human CCR7 transfectants
Met1-Pro378
Accession # AAA58615

Specificity

Detects human CCR7.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2A

Scientific Data Images for Human CCR7 Fluorescein‑conjugated Antibody

Detection of CCR7 antibody in Human Blood Lymphocytes antibody by Flow Cytometry.

Detection of CCR7 in Human Blood Lymphocytes by Flow Cytometry.

Human peripheral blood lymphocytes were stained with Mouse Anti-Human CD4 APC-conjugated Monoclonal Antibody (Catalog # FAB3791A) and either (A) Mouse Anti-Human CCR7 Fluorescein-conjugated Monoclonal Antibody (Catalog # FAB197F) or (B) Mouse IgG2AFluorescein Isotype Control (Catalog # IC003F). View our protocol for Staining Membrane-associated Proteins.

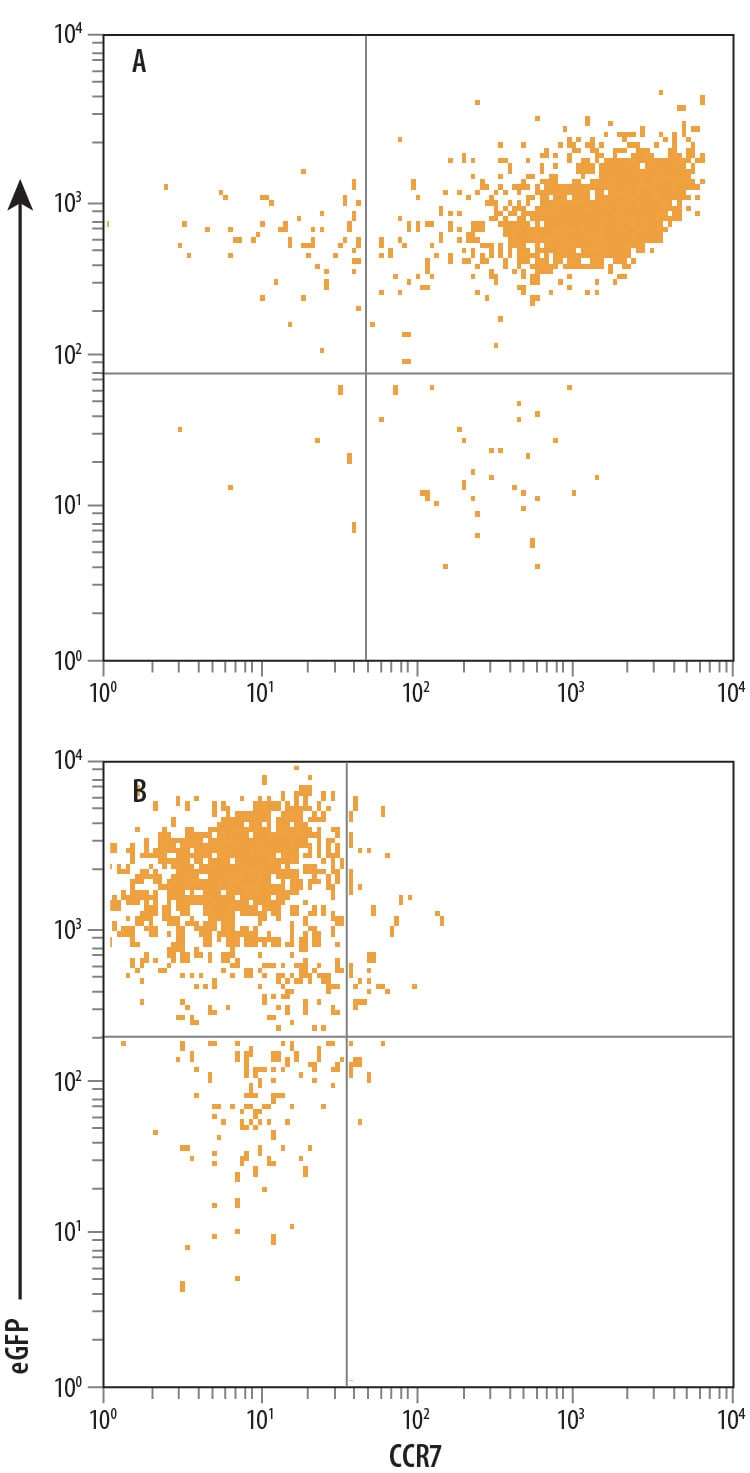

Detection of CCR7 antibody in HEK293 Human Cell Line Transfected with Human CCR7 and eGFP antibody by Flow Cytometry.

Detection of CCR7 in HEK293 Human Cell Line Transfected with Human CCR7 and eGFP by Flow Cytometry.

The specificity of Mouse Anti-Human CCR7 Clone 150503 was demonstrated by its ability to react with (A) HEK293 human embryonic kidney cell line transfected with human CCR7 and not react with (B) irrelevant HEK293 transfectants. Antibody binding was monitored using Phycoerythrin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0102B).
Detection of Human CCR7 by Flow Cytometry

Detection of Human CCR7 by Flow Cytometry

Frequency of peripheral T lymphocytes in hip fracture patients with and without depressive symptoms versus healthy controls. (a) The percentage of CD3+ve T cells in healthy controls: n = 37; hip fracture patients without depression (HF): n = 38 and hip fracture patients with depressive symptoms (HF + D): n = 29.The solid bar represents the mean value. (b) The mean absolute number of T cells in healthy controls: n = 20; hip fracture patients without depression (HF): n = 19 and hip fracture patients with depressive symptoms (HF + D): n = 15. Data are mean ± SEM. *p < .05 and **p < .01. Representative flow cytometry plots and gating strategy of PBMCs from a young individual stained with anti-CD3 and (c) anti-CD4, and CD8, (d) and anti-CD45RA and -CCR7 (e and f). Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/25628751), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human CCR7 Fluorescein‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: Human peripheral blood lymphocytes

Reviewed Applications

Read 1 review rated 2 using FAB197F in the following applications:

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: CCR7

CCR7 (Chemokine Receptor 7; also CD197) is a 7 transmembrane (7TM) G protein-coupled chemokine receptor for the homeostatic chemokines CCL19/MIP-3 beta and CCL21/6Ckine. CCL19 and CCL21 are constitutively expressed by high endothelial venule epithelial cells or fibroblastic reticular cells in secondary lymphoid organs. CCR7 is upregulated on dendritic cells, naïve and memory T cells, Treg, NK cells, and B cells following inflammatory stimulation. Its expression enables the function of immune cell trafficking to and retention in regional lymph nodes for expansion of the adaptive immune response. Human CCR7 shares 87% amino acid sequence identity with mouse CCR7.

Alternate Names

BLR2, CC-CKR-7, CCR7, CD197, CDw197, CMKBR7, EBI1

Entrez Gene IDs

1236 (Human); 12775 (Mouse); 287673 (Rat)

Gene Symbol

CCR7

UniProt

AAA58615

Additional CCR7 Products

Product Documents for Human CCR7 Fluorescein‑conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human CCR7 Fluorescein‑conjugated Antibody

For research use only

Citations for Human CCR7 Fluorescein‑conjugated Antibody

Customer Reviews for Human CCR7 Fluorescein‑conjugated Antibody (1)

2 out of 5
1 Customer Rating
5 Stars
0%
4 Stars
0%
3 Stars
0%
2 Stars
100%
1 Stars
0%

Have you used Human CCR7 Fluorescein‑conjugated Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 1 of 1 review Showing All
Filter By:
Clear Filters X
  • Human CCR7 Fluorescein-conjugated Antibody
    Name: samuel chiang
    Application: Flow Cytometry
    Sample Tested: Peripheral blood mononuclear cells (PBMCs)
    Species: Human
    Verified Customer | Posted 07/14/2016

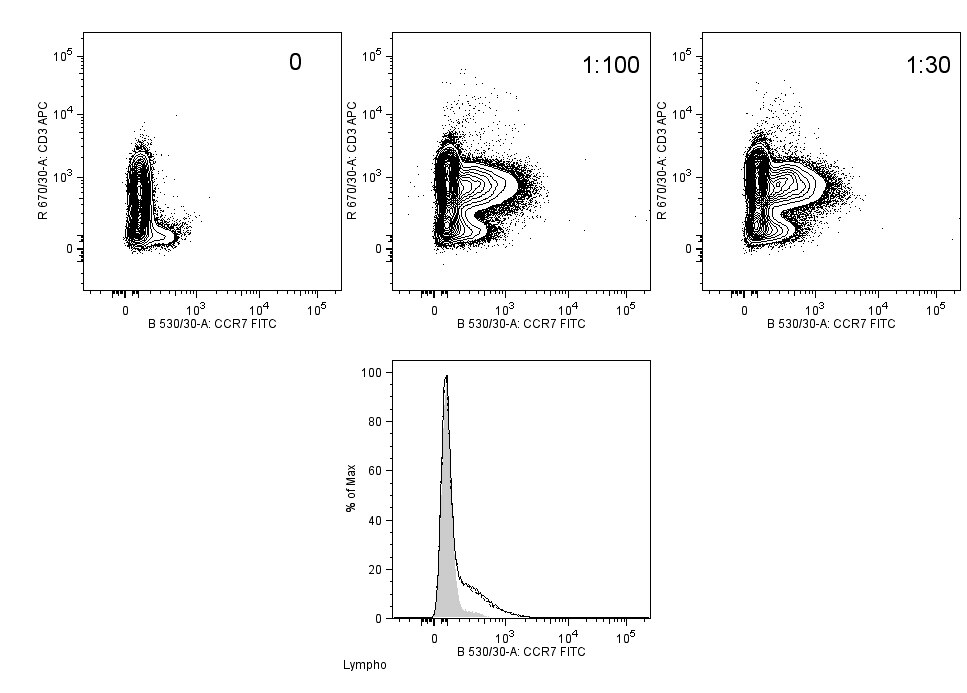

    Cryopreserved PBMC were thawed and aliquoted to 0.5 million cells per well. Cells were stained with anti-CD3 APC and differing amounts of CCR7-FITC in each well (amount used as seen in figure). Cells were fixed in BD fix, and acquired on a BDFortessa.
    Human CCR7 Fluorescein‑conjugated Antibody FAB197F

There are no reviews that match your criteria.

Showing  1 - 1 of 1 review Showing All

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
