Detection of Human Creatine Kinase MM/CKMM by Western Blot. Western blot shows lysate of human heart tissue. PVDF membrane was probed with 0.1 µg/mL of Mouse Anti-Human Creatine Kinase MM/|
CKMM Monoclonal Antibody (Catalog # MAB5564) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for Creatine Kinase MM/CKMM at approximately 40-45 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

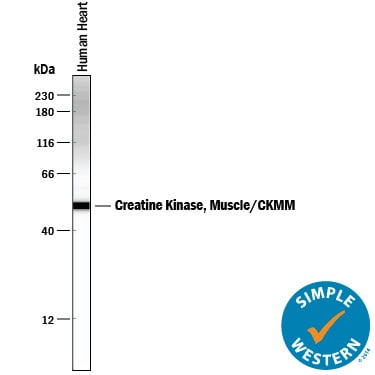

Detection of Human Creatine Kinase MM/CKMM by Simple WesternTM. Simple Western lane view shows lysates of human heart tissue, loaded at 0.2 mg/mL. A specific band was detected for Creatine Kinase MM/|
CKMM at approximately 51 kDa (as indicated) using 1 µg/mL of Mouse Anti-Human Creatine Kinase MM/CKMM Monoclonal Antibody (Catalog # MAB5564). This experiment was conducted under reducing conditions and using the
12-230 kDa separation system.
Creatine kinase (CK) is a 40 kDa cytoplasmic enzyme that is integral to energy metabolism in striated muscle through the maintenance of ATP levels. It is a dimeric protein composed of tissue specific M (muscle) and B (brain) subunits. The homodimeric CKMM isozyme is predominantly expressed in differentiated skeletal and cardiac muscle fibers. The M subunit of human creatine kinase shares 97% aa sequence identity with the mouse and rat M subunit and 81% with the human B subunit.
