CLEC10A, also known as macrophage galactose/N-acetyl-galactosamine (GalNAc) specific lectin (MGL), CD301, DC-ASGPR, and HML, is a 35-40 kDa type II transmembrane glycoprotein that belongs to the C-type lectin family (1). Human and rat carry a single gene for CLEC10A/MGL, while mouse has two closely related MGL1 and MGL2 genes. Human CLEC10A/MGL consists of a 39 amino acid (aa) cytoplasmic region, a 21 aa transmembrane segment and a 256 aa extracellular domain (ECD) with one carbohydrate recognition domain (CRD) and a neck region (2). Within the CRD, human CLEC10A/MGL shares 64% - 70% aa sequence identity with mouse MGL1, mouse MGL2, and rat MGL. Alternate splicing generates multiple isoforms of human CLEC10A/MGL with 27 aa, 3 aa, and/or 4 aa deletions within the ECD (3, 4). CLEC10A/MGL is expressed on immature myleloid dendritic cells and alternatively activated (tolerogenic) macrophages and is upregulated by the immunosuppressant dexamethasone (3-7). CLEC10A/MGL selectively binds and internalizes terminal nonsialylated alpha - or beta -linked GalNAc moieties on O-linked carbohydrates, including the Tn carcinoma antigen (2-4, 8, 9). Similar ligand preference is exhibited by mouse MGL2 but not MGL1 (10). CLEC10A/MGL expressed on tolerogenic dendritic cells binds carbohydrate determinants on CD45 (RA, RB, and RC but not RO isoforms) expressed by T, NK, and B cells (6). This interaction inhibits effector T cell activation and induces their apoptosis (6). CLEC10A/MGL also binds the GP envelope glycoprotein on Marburg and Ebola viruses and enhances viral entry and infectivity (11).
Human/Mouse CLEC10A/CD301 Antibody
R&D Systems | Catalog # AF4888
Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Gln61-His316
Accession # Q8IUN9
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human/Mouse CLEC10A/CD301 Antibody
Detection of Human CLEC10A/CD301 by Western Blot.
Western blot shows lysates of human immature dendritic cells and human mature dendritic cells. PVDF membrane was probed with 1 µg/mL of Goat Anti-Human/Mouse CLEC10A/CD301 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4888) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). A specific band was detected for CLEC10A/CD301 at approximately 35 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

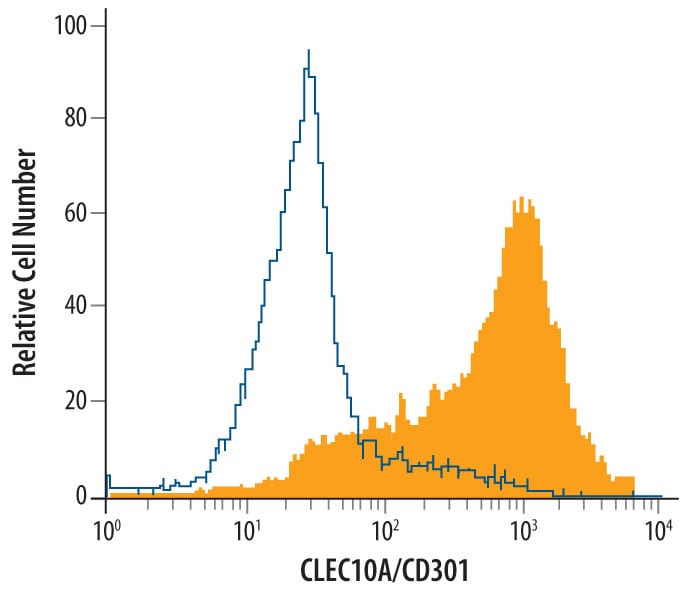

Detection of CLEC10A in Human Dendritic Cells by Flow Cytometry.
Human immature dendritic cells were stained with Goat Anti-Human/Mouse CLEC10A/CD301 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4888, filled histogram) or isotype control antibody (Catalog # AB-108-C, open histogram), followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0108).

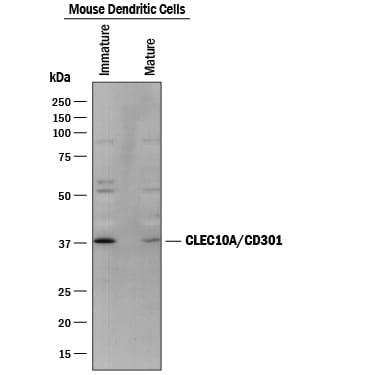

Detection of Mouse CLEC10A/CD301 by Western Blot.
Western blot shows lysates of mouse immature dendritic cells and mouse mature dendritic cells. PVDF membrane was probed with 2 µg/mL of Goat Anti-Human/Mouse CLEC10A/CD301 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF4888) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). A specific band was detected for CLEC10A/CD301 at approximately 37 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Applications for Human/Mouse CLEC10A/CD301 Antibody
CyTOF-ready
Flow Cytometry
Sample: Human immature dendritic cells
Western Blot
Sample: Human immature dendritic cells and human mature dendritic cells
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: CLEC10A/CD301
References
- Zelensky, A.N. and J.E. Gready (2005) FEBS J. 272:6179.
- Suzuki, N. et al. (1996) J. Immunol. 156:128.
- Higashi, N. et al. (2002) J. Biol. Chem. 277:20686.
- Valladeau, J. et al. (2001) J. Immunol. 167:5767.
- van Vliet, S.J. et al. (2006) Immunobiology 211:577.
- van Vliet, S.J. et al. (2006) Nat. Immunol. 7:1200.
- Raes, G. et al. (2005) J. Leukoc. Biol. 77:321.
- van Vliet, S.J. et al. (2005) Int. Immunol. 17:661.
- Higashi, N. et al. (2002) Int. Immunol. 14:545.
- Tsuiji, M. et al. (2002) J. Biol. Chem. 277:28892.
- Takada, A. et al. (2004) J. Virol. 78:2943.
Long Name
Alternate Names
Entrez Gene IDs
Gene Symbol
UniProt
