Key Product Details

Species Reactivity

Validated:

Human, Mouse, Rat

Cited:

Human, Mouse, Rat, Avian - Chicken, Rabbit

Applications

Validated:

Immunohistochemistry, Western Blot, Blockade of Receptor-ligand Interaction

Cited:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Neutralization, Flow Cytometry, Immunocytochemistry, Electrophysiology

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse RAGE
Gln24-Ala342
Accession # O35444

Specificity

Detects human, mouse, and rat RAGE in Western blots. In direct ELISAs, less than 2% cross-reactivity with recombinant canine RAGE is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Endotoxin Level

<0.10 EU per 1 μg of the antibody by the LAL method.

Scientific Data Images for Human/Mouse/Rat RAGE Antibody

Detection of Human RAGE antibody by Western Blot.

Detection of Human RAGE by Western Blot.

Western blot shows lysates of human lung tissue. PVDF membrane was probed with 1 µg/mL of Goat Anti-Human/Mouse/Rat RAGE Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1179) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band was detected for RAGE at approximately 50 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

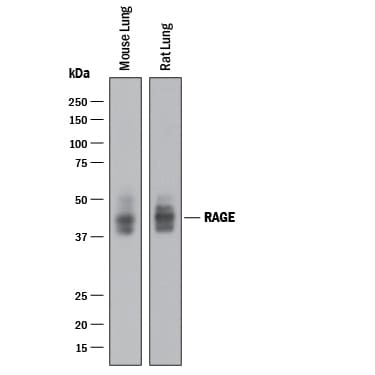

Detection of Mouse and Rat RAGE antibody by Western Blot.

Detection of Mouse and Rat RAGE by Western Blot.

Western blot shows lysates of mouse lung tissue and rat lung tissue. PVDF membrane was probed with 0.1 µg/mL of Goat Anti-Human/Mouse/Rat RAGE Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1179) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). Specific bands were detected for RAGE at approximately 40-50 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

RAGE antibody in Mouse Brain by Immunohistochemistry (IHC-Fr).

RAGE in Mouse Brain.

RAGE was detected in immersion fixed frozen sections of mouse brain using Goat Anti-Mouse/Rat RAGE Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1179) at 15 µg/mL overnight at 4 °C. Tissue was stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to neurons. View our protocol for Fluorescent IHC Staining of Frozen Tissue Sections.

Detection of Mouse AGER by Immunohistochemistry

Detection of Mouse AGER by Immunohistochemistry

RAGE contributes to maintenance of pulmonary mechanics and structure.Quantification of mean chord length (A) were performed by stereological analysis of alveolar parenchyma; n ≥ 4 per group. (B) Representative histology (hematoxylin and eosin staining) of ten months old WT and RAGE-/- mice; scale bars: 200μm. Respiratory system compliance (C) and respiratory system elastance (D) were determined in two, four and ten months old WT and RAGE-/- mice using invasive pulmonary function measurements; n ≥ 7 per group. (E) Concentration of serum protein albumin in BALF of two months old mice; n = 10. Data are shown as mean ± SEM. *p < 0.05 and **p < 0.01. Image collected and cropped by CiteAb from the following open publication (https://dx.plos.org/10.1371/journal.pone.0180092), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Mouse AGER by Immunohistochemistry

Detection of Mouse AGER by Immunohistochemistry

RAGE is expressed on alveolar epithelial cells and alveolar macrophages.(A) Immunostaining for RAGE protein in WT and RAGE-/- lung tissue. (B) Isolated alveolar epithelial cells (AEC) (n = 7 per group) and alveolar macrophages (AM) (n = 4 per group) were analyzed for RAGE mRNA expression using qRT-PCR. Data are shown as mean ± SEM. Scale bar: 100μm. Image collected and cropped by CiteAb from the following open publication (https://dx.plos.org/10.1371/journal.pone.0180092), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Mouse AGER by Immunohistochemistry

Detection of Mouse AGER by Immunohistochemistry

RAGE is expressed on alveolar epithelial cells and alveolar macrophages.(A) Immunostaining for RAGE protein in WT and RAGE-/- lung tissue. (B) Isolated alveolar epithelial cells (AEC) (n = 7 per group) and alveolar macrophages (AM) (n = 4 per group) were analyzed for RAGE mRNA expression using qRT-PCR. Data are shown as mean ± SEM. Scale bar: 100μm. Image collected and cropped by CiteAb from the following open publication (https://dx.plos.org/10.1371/journal.pone.0180092), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Mouse Human/Mouse/Rat RAGE Antibody by Western Blot

Detection of Mouse Human/Mouse/Rat RAGE Antibody by Western Blot

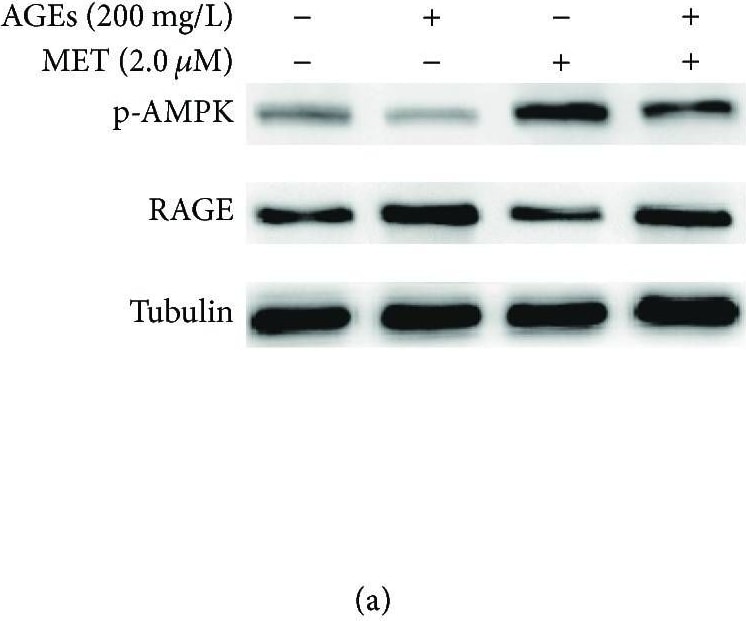

Metformin activates AMPK and inhibits AGEs-induced RAGE expression and NF kappa B activation. (a) BMDMs were divided into 4 groups: control, AGEs, MET, and AGEs + MET group. In AGEs group, cells were cultured with AGEs at 200 mg/L for 24 h; in MET group, cells were cultured with metformin at 2.0 μM for 24 h; in AGEs + MET group, cells were pretreated with metformin for 60 min and then cultured with AGEs at 200 mg/L for 24 h; in control group, cells were cultured with BSA at 200 mg/L for 24 h. Western blot analysis was performed to measure protein levels of RAGE and phosphorylated AMPK (p-AMPK). Tubulin was used as internal control. (b) BMDMs were pretreated with or without metformin (2.0 μM) for 60 min before AGEs (200 mg/L) stimulation for different time intervals (0, 30, 60, and 180 min). Protein levels of NF kappa B-p65 (p65) and phosphorylated NF kappa B-p65 (p-p65) were measured by western blot. Tubulin was used as internal control. Bar graphs represent the results (mean ± SD) of three independent experiments. One-way ANOVA was applied and all the overall ANOVA was significant. #p > 0.05; ∗p < 0.05; ∗∗p < 0.01; and ∗∗∗p < 0.001 when compared between selected groups. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/27761470), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of RAGE by Western Blot

Detection of RAGE by Western Blot

A RAGE mRNA expression was elevated in lungs from RAGE TG mice compared to WT controls in the absence of SHS exposure (p = 0.02). RAGE mRNA was significantly elevated in WT (p = 0.02) and RAGE TG mice (p = 0.03) following exposure to SHS compared to room air (RA) controls. Expression of RAGE transcripts were not detected in RAGE KO mice regardless of exposure. The mRNA was normalized to beta -actin (n = 6 mice per group) and representative data are shown. B Analysis of RAGE protein demonstrated that RAGE TG animals expressed significantly more RAGE protein compared to controls (p = 0.02). SHS exposure significantly increased RAGE protein expression in WT (p = 0.01) and RAGE TG mice (p = 0.04) compared to RA controls while RAGE KO animals had no expression. Blots were densitometrically normalized to beta -actin and representative blots were cropped and presented Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/35473605), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human/Mouse/Rat RAGE Antibody

Application
Recommended Usage

Blockade of Receptor-ligand Interaction

In a functional ELISA, 15-35 µg/mL of this antibody will block 50% of the binding of 500 ng/mL of biotinylated AGE-BSA to immobilized Recombinant Mouse RAGE Fc Chimera (Catalog # 1179-RG) coated at 5 µg/mL (100 µL/well). At 166 μg/mL, this antibody will block >90% of the binding.

Immunohistochemistry

5-15 µg/mL
Sample: Immersion fixed frozen sections of mouse brain

Western Blot

0.1-1 µg/mL
Sample: Human, mouse, and rat lung tissue

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.


Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: RAGE/AGER

Advanced glycation endproducts (AGE) are adducts formed by the non-enzymatic glycation or oxidation of macromolecules (1). AGE forms during aging and its formation is accelerated under pathophysiologic states such as diabetes, Alzheimer’s disease, renal failure and immune/inflammatory disorders. Receptor for Advanced Glycation Endoproducts (RAGE), named for its ability to bind AGE, is a multiligand receptor belonging the immunoglobulin (Ig) superfamily. Besides AGE, RAGE binds amyloid beta -peptide, S100/calgranulin family proteins, high mobility group B1 (HMGB1, also know as amphoterin) and leukocyte integrins (1, 2).

The mouse RAGE gene encodes a 403 amino acid (aa) residue type I transmembrane glycoprotein with a 22 aa signal peptide, a 319 aa extracellular domain containing a Ig-like V-type domain and two Ig-like Ce-type domains, a 21 aa transmembrane domain and a 41 aa cytoplasmic domain (3). The V-type domain and the cytoplasmic domain are important for ligand binding and for intracellular signaling, respectively. Two alternative splice variants, lacking the V-type domain or the cytoplasmic tail, are known (1, 4). RAGE is highly expressed in the embryonic central nervous system (5). In adult tissues, RAGE is expressed at low levels in multiple tissues including endothelial and smooth muscle cells, mononuclear phagocytes, pericytes, microglia, neurons, cardiac myocytes, and hepatocytes (6). The expression of RAGE is upregulated upon ligand interaction. Depending on the cellular context and interacting ligand, RAGE activation can trigger differential signaling pathways that affect divergent pathways of gene expression (1, 7). RAGE activation modulates varied essential cellular responses (including inflammation, immunity, proliferation, cellular adhesion, and migration) that contribute to cellular dysfunction associated with chronic diseases such as diabetes, cancer, amyloidoses, and immune or inflammatory disorders (1).

References

  1. Schmidt, A. et al. (2001) J. Clin. Invest. 108:949.
  2. Chavakis, T. et al. (2003) J. Exp. Med. 198:507.
  3. Renard, C. et al. (1997) Mol. Pharmacol. 52:54.
  4. Yonekura, H. et al. (2003) Biochem. J. 370:1097.
  5. Hori, O. et al. (1995) J. Biol. Chem. 270:25752.
  6. Brett, J. et al. (1993) Am. J. Pathol. 143:1699.
  7. Valencia, J.V. et al. (2004) Diabetes 53:743.

Long Name

Receptor for Advanced Glycation End Products

Alternate Names

AGER, SCARJ1

Entrez Gene IDs

177 (Human); 11596 (Mouse); 81722 (Rat); 403168 (Canine)

Gene Symbol

AGER

UniProt
