Tmp21 (Transmembrane protein 21 also TMED-10,Transmembrane emp24 Domain-containing Protein 10, p24 delta 1 and p23) is a 21‑23 kDa member of the EMP [endosome membrane protein] 24 /GP25L family of cargo molecules. It is ubiquitously expressed, being found associated with the ER-Golgi complex. Molecules destined for secretion are folded/processed in the ER, transported out of the ER via COP-II coated vesicles, united with other molecules in similar vesicles to form an ERGIC/ER-Golgi Intermediate Compartment, and finally delivered to the Golgi (or returned to the ER) via new (presumably COP-I) coated vesicles for terminal maturation. Tmp21 is considered part of both the COP-II and COP-I oligomer complex, the latter that arises from the ERGIC and both stabilizes the ER and allows for the selection of specific molecules targeted for secretion. It also is known to associate with the presenilin complex in the plasma membrane and downregulate gamma ‑secretase activity. This impacts A beta production but not AICD generation. Mature human Tmp21 is a 188 amino acid (aa) type I transmembrane protein. It contains a 154 aa luminal region (aa 32-185) that shows a membrane interaction GOLD (Golgi Dynamics) domain (aa 41-193), and a short 13 aa cytoplasmic tail (aa 207-219) that binds to COP vesicle coat complexes. Exists as both a monomer and homodimer. Over aa 32-185, human Tmp21 shares 97% aa sequence identity with mouse Tmp21.
Human/Mouse/Rat Tmp21/p23 Antibody
R&D Systems | Catalog # MAB7630
Key Product Details
Validated by
Knockout/Knockdown
Species Reactivity
Human, Mouse, Rat
Applications
Knockout Validated, Western Blot
Label
Unconjugated
Antibody Source
Monoclonal Mouse IgG2A Clone # 805125
Loading...
Product Specifications
Immunogen
E.coli-derived recombinant human Tmp21/p23
Ile32-Arg185
Accession # P49755
Ile32-Arg185
Accession # P49755
Specificity
Detects human Tmp21/p23 in direct ELISAs and Western blots.
Clonality
Monoclonal
Host
Mouse
Isotype
IgG2A
Scientific Data Images for Human/Mouse/Rat Tmp21/p23 Antibody
Detection of Tmp21/p23 by Western Blot.
Western blot shows lysates of U-87 MG human glioblastoma/astrocytoma cell line, Capan-1 human pancreatic adenocarcinoma cell line, Neuro-2A mouse neuroblastoma cell line, and Rat-2 rat embryonic fibroblast cell line. PVDF membrane was probed with 1 µg/mL of Mouse Anti-Human/Mouse/Rat Tmp21/p23 Monoclonal Antibody (Catalog # MAB7630) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for Tmp21/p23 at approximately 21 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Western Blot Shows Human Tmp21/p23 Specificity by Using Knockout Cell Line.

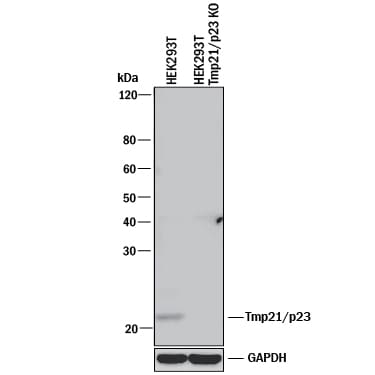

Western blot shows lysates of HEK293T human embryonic kidney parental cell line and Tmp21/p23 knockout HEK293T cell line (KO). PVDF membrane was probed with 1 µg/mL of Mouse Anti-Human/Mouse/Rat Tmp21/p23 Monoclonal Antibody (Catalog # MAB7630) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for Tmp21/p23 at approximately 23 kDa (as indicated) in the parental HEK293T cell line, but is not detectable in knockout HEK293T cell line. GAPDH (Catalog # MAB5718) is shown as a loading control. This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Applications for Human/Mouse/Rat Tmp21/p23 Antibody
Application
Recommended Usage
Knockout Validated
Tmp21/p23
is specifically detected in HEK293T human embryonic kidney parental cell line but is not detectable in
Tmp21/p23 knockout HEK293T cell line.
Western Blot
1 µg/mL
Sample: U‑87 MG human glioblastoma/astrocytoma cell line, Capan‑1 human pancreatic adenocarcinoma cell line, Neuro‑2A mouse neuroblastoma cell line, and Rat‑2 rat embryonic fibroblast cell line
Sample: U‑87 MG human glioblastoma/astrocytoma cell line, Capan‑1 human pancreatic adenocarcinoma cell line, Neuro‑2A mouse neuroblastoma cell line, and Rat‑2 rat embryonic fibroblast cell line
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Tmp21/p23
Long Name
21 kDa Transmembrane Trafficking Protein
Alternate Names
p24delta, S31I125, S31III125, TMED10
Gene Symbol
TMED10
UniProt
Additional Tmp21/p23 Products
Product Documents for Human/Mouse/Rat Tmp21/p23 Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human/Mouse/Rat Tmp21/p23 Antibody
For research use only
