Human OX40/TNFRSF4 Antibody

R&D Systems | Catalog # MAB10563

Recombinant Monoclonal Antibody.
R&D Systems

Key Product Details

Species Reactivity

Human

Applications

Neutralization, Flow Cytometry, CyTOF-ready

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Rabbit IgG Clone # 2553D
View all OX40 Primary Antibodies »

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived human OX40/TNFRSF4
Leu29-Ala216
Accession # P34389

Specificity

Detects human OX40/TNFRSF4 in direct ELISAs.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Endotoxin Level

<0.10 EU per 1 μg of the antibody by the LAL method.

Scientific Data Images for Human OX40/TNFRSF4 Antibody

Detection of OX40/TNFRSF4 antibody in HEK293 Human Cell Line transfected with Human OX40/TNFRSF4 and eGFP antibody by Flow Cytometry

Detection of OX40/TNFRSF4 in HEK293 Human Cell Line transfected with Human OX40/TNFRSF4 and eGFP by Flow Cytometry

HEK293 human embryonic kidney cell line transfected with either (A) human OX40/TNFRSF4 or (B) irrelevant protein, and eGFP, was stained with Rabbit anti-human OX40/TNFRSF4 monoclonal antibody (Catalog # MAB10563) followed by Allophycocyanin-conjugated anti-Rabbit IgG Secondary Antibody (F0111). Quadrant markers were set based on control antibody staining (MAB1050, data not shown). Staining was performed using our Staining Membrane-Associated Proteins protocol.

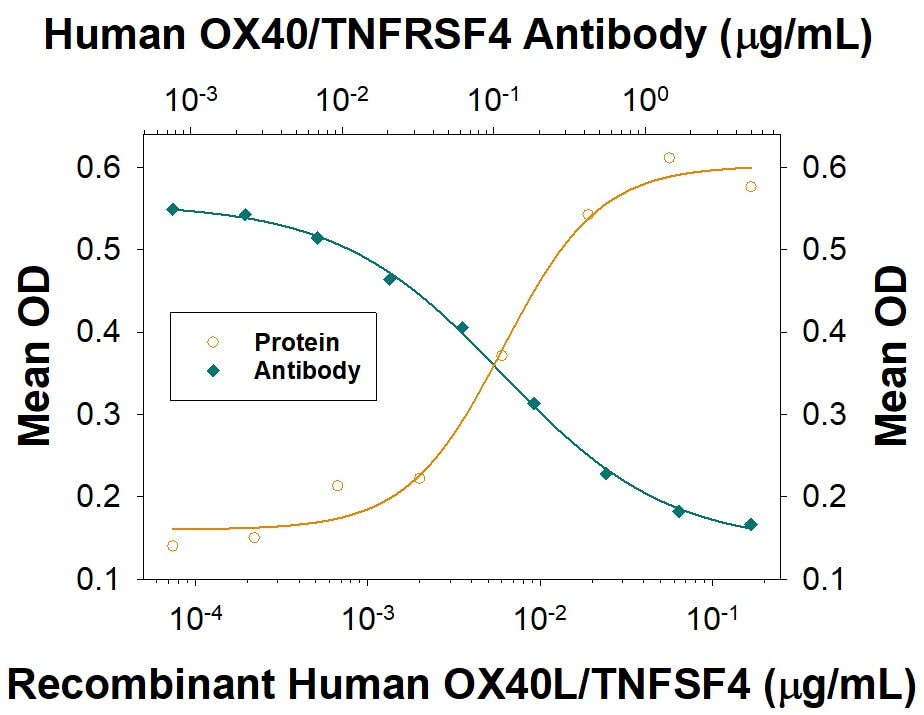

CXCL8/IL-8 Secretion Induced by OX40L/TNFSF4 and Neutralization by Human OX40/TNFRSF4 Antibody.

Recombinant Human OX40L/TNFSF4 (1054-OX) stimulates CXCL8/IL-8 secretion in the HT1080 human fibrosarcoma cell line transfected with human OX40/TNFRSF4 in a dose-dependent manner (orange line), as measured by the Human CXCL8/IL-8 Quantikine ELISA Kit (D8000C). CXCL8/Il-8 Secretion elicited by Recombinant Human OX40L/TNFSF4 (20 ng/mL) is neutralized (green line) by increasing concentrations of Mouse Anti-Human OX40/TNFRSF4 Monoclonal Antibody (Catalog # MAB10563). The ND50 is typically 25-250 ng/mL.

Applications for Human OX40/TNFRSF4 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: HEK293 Human Cell Line transfected with Human OX40/TNFRSF4 and eGFP

Neutralization

Measured by its ability to neutralize OX40L/TNFSF4-induced IL-8 secretion in the HT1080 human fibrosarcoma cell line transfected with human OX40/TNFRSF4. The Neutralization Dose (ND50) is typically 25-250 ng/mL in the presence of 20 ng/mL Recombinant Human OX40L/TNFSF4.

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: OX40

OX40 (CD134; TNFRSF4) is a T cell co-stimulatory molecule of the TNF receptor superfamily that coordinates with other co-stimulators (CD28, CD40, CD30, CD27 and 4-1BB) to manage the activation of the immune response (1-3). Human OX40 is a 48 kDa type I transmembrane glycoprotein with a 28 amino acid (aa) signal sequence, a 185 aa extracellular domain (ECD) that contains a cysteine-rich region, a 20 aa transmembrane segment, and a 41 aa cytoplasmic domain (4). The ECD of human OX40 shares 63% sequence identity with the ECD of mouse and rat OX40. OX40 is up-regulated on CD4+ and CD8+ T cells upon engagement of the TCR by antigen presenting cells along with co-stimulation by CD40-CD40 Ligand and CD28-B7 (5, 6). OX40 Ligand is primarily expressed on antigen presenting cells (5). OX40 Ligand engagement of OX40 on activated CD4+ T cells results in increased T cell survival, proliferation, and cytokine production. It also inhibits the conversion of effector T cells into immunosuppressive regulatory T cells (Tregs) and can promote the maintenance of and recall response in memory T cells (3, 7-10). OX40 is constitutively expressed on Tregs and enhances the sensitivity of Tregs to IL-2, thus promoting Treg proliferation. OX40 has also been shown to decrease the cells’ immunosuppressive activity on effector T cells (11-14). OX40-OX40 Ligand signaling is involved in allergic airway inflammation, graft-versus-host disease and autoimmune disease (6, 15, 16). Mutations in OX40 and OX40 Ligand are associated with cardiovascular disease (17, 18).

References

  1. Hori, T. (2006) Int. J. Hematol. 83:17.
  2. Latza, U. et al. (1994) Eur. J. Immunol. 24:677.
  3. Salek-Ardakani, S. et al. (2003) J. Exp. Med. 198:315.
  4. al-Shamkhani, A. et al. (1996) Eur. J. Immunol. 26:1695.
  5. Moran, A.E. et al. (2013) Curr. Opin. Immunol. 25:230.
  6. Gramaglia, I. et al. (1998) J. Immunol. 161:6510.
  7. Xiao, X. et al. (2008) J. Immunol. 181:3193.
  8. So, T. and M. Croft (2007) J. Immunol. 179:1427.
  9. Mousavi, S.F. et al. (2008) J. Immunol. 181:5990.
  10. Bansal-Pakala, P. et al. (2001) Nat. Med. 7:907.
  11. Piconese, S. et al. (2010) Eur. J. Immunol. 40:2902.
  12. Griseri, T. et al. (2010) J. Exp. Med. 207:699.
  13. Xiao, X. et al. (2012) J. Immunol. 188:892.
  14. Vu, M.D. et al. (2007) Blood 110:2501.
  15. Damayanti, T. et al. (2010) Am. J. Respir. Crit. Care Med. 181:688.
  16. Xiao, X. et al. (2012) Nat. Immunol. 13:981.
  17. Nakano, M. et al. (2010) Cardiovasc. Res. 88:539.
  18. Ishii, N. et al. (2010) Adv. Immunol. 105:63.
  19. Godfrey, W.R. et al. (1994) J. Exp. Med. 180:757

Alternate Names

ACT-135, CD134, Ly-70, TNFRSF4, Txgp1, TXGP1L

Entrez Gene IDs

7293 (Human); 22163 (Mouse); 25572 (Rat); 102145978 (Cynomolgus Monkey)

Gene Symbol

TNFRSF4

UniProt

P34389
