PTGES2 (Prostaglandin E Synthase 2; also C9orf15, GBF-1 and mPGES2) is a 32 kDa member of the GST superfamily of molecules. It is a constitutively expressed, integral membrane protein embedded in the Golgi apparatus, and is found in select cell types, including striated muscle cells, neurons, hepatocytes and astrocytes and endothalium. PTGES2 is proposed to lie at the end of a PGE2 synthetic pathway. PLA2S is known to first releases arachidonic acid (AA) from membrane phospholipids. This AA is next converted to PGH2 by COX-1/-2, and the PGH2 is then potentially isomerized into PGE2 by PTGES type enzymes. Notably, PTGES2 is not a glutathione-dependent enzyme, and some evidence suggests it is not a functional prostaglandin synthase. Human PTGES2 is potentially a 377 amino acid (aa) type III (no signal sequence) transmembrane protein. It contains a 57 aa luminal region, a 17 aa transmembrane segment (aa 58-74) and a 303 aa cytoplasmic domain (aa 75-377). There is one glutaredoxin domain (aa 90-193) and a GST-like region (aa 263-377). Proteolytic cleavage between Ala87Glu88 of 42-43 kDa full-length PTGES2 generates a soluble 32 kDa short form that localizes perinuclearly. There are two potential alternative splice forms. One contains a 19 aa insertion after Ser159, while a second utilizes an alternative start site at Met192. Over aa 88-377, human PTGES2 shares 91% aa sequence identity with mouse PTGES2.
Human Prostaglandin E Synthase 2/PTGES2 Antibody
R&D Systems | Catalog # AF7627
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Glu88-His377
Accession # Q9H7Z7
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human Prostaglandin E Synthase 2/PTGES2 Antibody
Detection of Human Prostaglandin E Synthase 2/ PTGES2 by Western Blot.
Western blot shows lysates of SW480 human colorectal adenocarcinoma cell line, COLO 205 human colorectal adenocarcinoma cell line, HepG2 human hepatocellular carcinoma cell line, A549 human lung carcinoma cell line, and human heart tissue. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Human Prostaglandin E Synthase 2/PTGES2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7627) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for Prostaglandin E Synthase 2/PTGES2 at approximately 30-32 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Prostaglandin E Synthase 2/PTGES2 in Human Kidney.
Prostaglandin E Synthase 2/PTGES2 was detected in immersion fixed paraffin-embedded sections of human kidney using Sheep Anti-Human Prostaglandin E Synthase 2/PTGES2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7627) at 0.3 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Sheep IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC006). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to cytoplasm in convoluted tubules. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.Detection of Human Prostaglandin E Synthase 2/PTGES2 by Simple WesternTM.

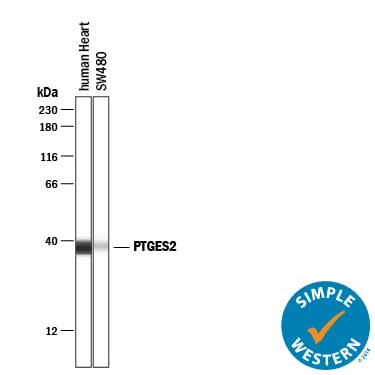

Simple Western lane view shows lysates of human heart tissue and SW480 human colorectal adenocarcinoma cell line, loaded at 0.2 mg/mL. A specific band was detected for Prostaglandin E Synthase 2/PTGES2 at approximately 38 kDa (as indicated) using 10 µg/mL of Sheep Anti-Human Prostaglandin E Synthase 2/PTGES2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7627) followed by 1:50 dilution of HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.Applications for Human Prostaglandin E Synthase 2/PTGES2 Antibody
Immunohistochemistry
Sample: Immersion fixed paraffin-embedded sections of human kidney
Simple Western
Sample: Human heart tissue and SW480 human colorectal adenocarcinoma cell line
Western Blot
Sample: SW480 human colorectal adenocarcinoma cell line, COLO 205 human colorectal adenocarcinoma cell line, HepG2 human hepatocellular carcinoma cell line, A549 human lung carcinoma cell line, and human heart tissue
Formulation, Preparation, and Storage
Purification
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Prostaglandin E Synthase 2/PTGES2
Alternate Names
Gene Symbol
UniProt
Additional Prostaglandin E Synthase 2/PTGES2 Products
Product Documents for Human Prostaglandin E Synthase 2/PTGES2 Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human Prostaglandin E Synthase 2/PTGES2 Antibody
For research use only
Customer Reviews for Human Prostaglandin E Synthase 2/PTGES2 Antibody
There are currently no reviews for this product. Be the first to review Human Prostaglandin E Synthase 2/PTGES2 Antibody and earn rewards!
Have you used Human Prostaglandin E Synthase 2/PTGES2 Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 for a review with an image
$10/€7/£6/$10CAN/¥1110 for a review without an image
Submit a review
