Human Total HSP60 DuoSet IC ELISA

In alignment with Bio-Techne’s commitment to sustainability and Go Green initiatives, we will no longer pack paper kit booklets in the following immunoassay kits:

  • Quantikine® RUO ELISA Kits
  • Quantikine® HS ELISA Kits
  • QuantiGloELISA Kits
  • QuicKitELISA Kits
  • Fluorokine Kits
  • Parameter Assay Kits
  • ELISpot Kits
Catalog # Availability Size / Price Qty
Ancillary Products Available

Save Up to 40% on RUO Reagents with BIOSPRING24 (See Details)

Standard Curve
3 Images
Product Details
Citations (4)
Supplemental Products
Reviews (1)

Human Total HSP60 DuoSet IC ELISA Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4 hours 40 mins (after plate preparation)
Sample Volume Required
Cell lysates (100 µL)
Assay Range
625.0 - 40,000 pg/mL
Sufficient Materials
Kits available for two, five, or fifteen 96-well plates*
Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

This DuoSet IC ELISA contains the basic components required for the development of sandwich ELISAs to measure total HSP60 in cell lysates. An immobilized capture antibody specific for HSP60 binds both phosphorylated and unphosphorylated HSP60. After washing away unbound material, a biotinylated detection antibody is used to detect both phosphorylated and unphosphorylated protein, utilizing a standard Streptavidin-HRP format.


Product Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Available in 2, 5, and 15- (96-well) plate pack sizes
  • Economical alternative to Western blot

Kit Content

  • Capture Antibody
  • Conjugated Detection Antibody
  • Calibrated Immunoassay Standard or Control
  • Streptavidin-HRP

Other Reagents Required

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2O4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or equivalent

Lysis Buffer*

IC Diluent*

Blocking Buffer*

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: From Costar EIA Plate (Costar Catalog # 2592) or R&D Systems (Catalog # DY990), or equivalent

Plate Sealers: ELISA Plate Sealers (Catalog # DY992), or equivalent

*For the Lysis Buffer, IC Diluent, and Blocking BUffer recommended for a specific DuoSet ELISA Development Kit, please see the product

Scientific Data

Standard Curve

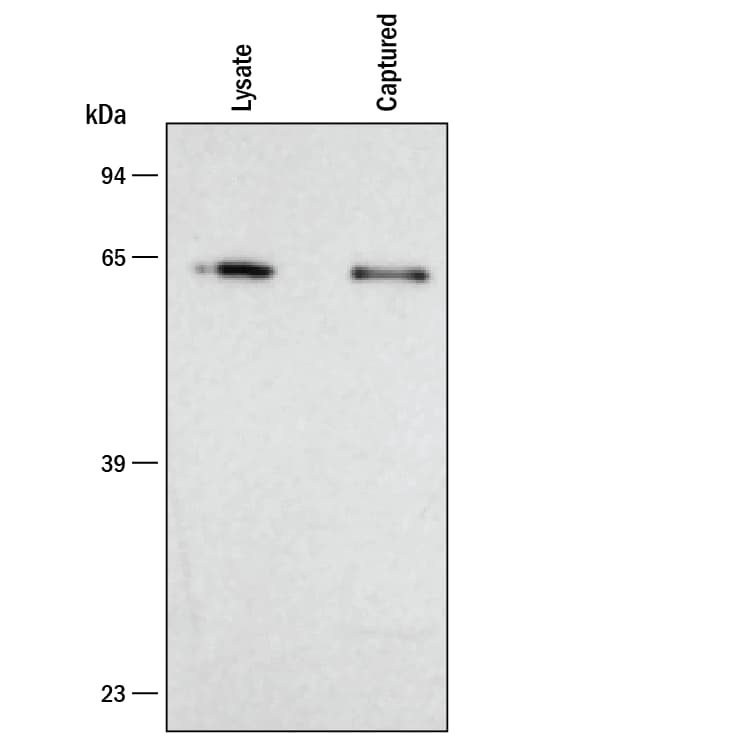

Specificity of Human Total HSP60 DuoSet IC ELISA is Shown by Western Blot. Lysates prepared from Jurkat human acute T cell leukemia cells were incubated in wells coated with Human Total HSP60 Capture Antibody. Unbound material was removed by washing and bound material was solubilized in SDS gel sample buffer. The same lysate and captured proteins were electrophoresed, transferred to an Immobilon-P membrane (Millipore) and immunoblotted with Human Total HSP60 Detection Antibody. Only a single band corresponding to HSP60 was detected. To further determine specificity, recombinant human (rh) HSP27 (Catalog # 1580-HS) and rhHSP70 (Catalog # AP-100) were assayed at 400 ng/mL and did not cross-react or interfere in the assay.

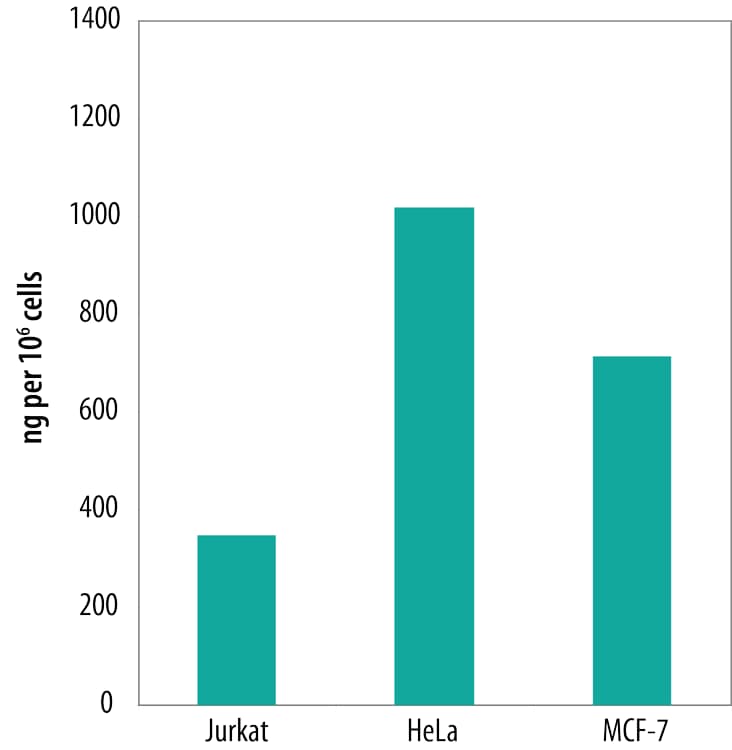

Quantifications of HSP60 in Human Cell Lysates. Lysates prepared from Md from MCF-7 human breast cancer cells, HeLa human cervical epithelial carcinoma cells and Jurkat human acute T cell leukemia cells were quantified with this DuoSet IC ELISA. The same lysates were also immunoblotted (inset) with Mouse Anti-human HSP60 (Catalog # MAB1800) Antibody. The DuoSet IC ELISA results correlate well with the relative amounts of HSP60 detected by Western blot.

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: HSP60

The heat shock proteins are a highly conserved family of stress response proteins. HSPs function primarily as molecular chaperones, facilitating the folding of other cellular proteins, preventing protein aggregation, or targeting improperly folded proteins to specific degradative pathways. Some HSPs are expressed at low levels under normal physiological conditions but show dramatically increased expression in response to cellular stress, others are constitutively expressed. Specific HSPs play a role in regulating apoptosis by interacting directly with key components of the apoptotic pathway.

Long Name:
Heat Shock Protein 60
Entrez Gene IDs:
3329 (Human); 110907 (Mouse); 63868 (Rat)
Alternate Names:
60 kDa chaperonin; Chaperonin 60; cpn60; GROEL; heat shock 60kD protein 1 (chaperonin); heat shock 60kDa protein 1 (chaperonin); Heat shock protein 60; heat shock protein 65; HLD4; HSP60; HSP-60; HSP60SPG13; HSP65; HSPD1; HuCHA60; Mitochondrial matrix protein P1,60 kDa heat shock protein, mitochondrial; P60 lymphocyte protein; short heat shock protein 60 Hsp60s1; spastic paraplegia 13 (autosomal dominant); SPG13

Citations for Human Total HSP60 DuoSet IC ELISA

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

4 Citations: Showing 1 - 4
Filter your results:

Filter by:

  1. Comparable Response Following Exposure to Biodiesel and Diesel Exhaust Particles in Advanced Multicellular Human Lung Models
    Authors: Rahman, M;Upadhyay, S;Ganguly, K;Introna, M;Ji, J;Boman, C;Muala, A;Blomberg, A;Sandström, T;Palmberg, L;
    Species: Human
    Sample Types: Cell Culture Supernates
  2. Cell-Free Circulating Mitochondrial DNA: A Potential Blood-Based Marker for Atrial Fibrillation
    Authors: M Wiersma, DMS van Marion, EJ Bouman, J Li, D Zhang, KS Ramos, EAH Lanters, NMS de Groot, BJJM Brundel
    Cells, 2020-05-08;9(5):.
    Species: Human
    Sample Types: Serum
  3. Distending Pressure Did Not Activate Acute Phase or Inflammatory Responses in the Airways and Lungs of Fetal, Preterm Lambs
    PLoS ONE, 2016-07-27;11(7):e0159754.
    Species: Ovine
    Sample Types: BALF
  4. Sustained inflation at birth did not alter lung injury from mechanical ventilation in surfactant-treated fetal lambs.
    Authors: Hillman N, Kemp M, Miura Y, Kallapur S, Jobe A
    PLoS ONE, 2014-11-24;9(11):e113473.
    Species: Ovine
    Sample Types: BALF


No product specific FAQs exist for this product, however you may

View all ELISA FAQs

Reviews for Human Total HSP60 DuoSet IC ELISA

Average Rating: 5 (Based on 1 Review)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Human Total HSP60 DuoSet IC ELISA?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Human Total HSP60 DuoSet IC ELISA
By Neda Ghousifam on 09/09/2018
Sample Tested: Human Renal Epithelial Cells

HSP60 was measured in cell lysates samples.
