Mouse Erythropoietin/EPO DuoSet ELISA

Catalog # Availability Size / Price Qty
DY959
Ancillary Products Available

15% Off Limited-time Savings on Your Reagents, Assays, and Kits
Now through September 27th, you can save 15% on Bio-Techne reagents, assays, and kits (including Novus, Tocris, and R&D Systems). Use promotion code SAVE15 at checkout on orders over $1,000. See terms and conditions for offer details.

Mouse Erythropoietin ELISA Standard Curve
1 Image
Product Details
Procedure
Citations (1)
FAQs
Supplemental Products
Reviews

Mouse Erythropoietin/EPO DuoSet ELISA Summary

Assay Type
Solid Phase Sandwich ELISA
Format
96-well strip plate
Sample Volume Required
100 µL
Assay Range
62.5 - 4,000 pg/mL
Sufficient Materials
For fifteen 96-well plates*
Specificity
Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant mouse Erythropoietin. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet.

Product Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits

Kit Content

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

The components listed above may be purchased separately:

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or 0.05% Tween® 20 in PBS, pH 7.2-7.4

Reagent Diluent: (Catalog # DY995), or 1% BSA in PBS, pH 7.2-7.4, 0.2 µm filtered

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990)

Plate Sealers: ELISA Plate Sealers (Catalog # DY992)

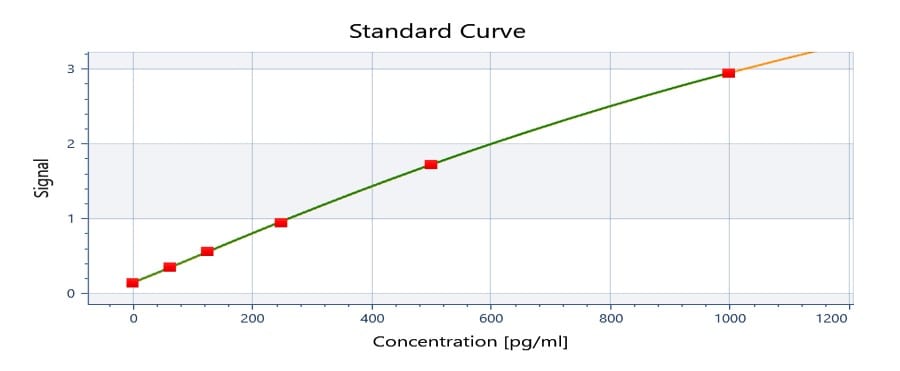

Data Example

Mouse Erythropoietin ELISA Standard Curve

Product Datasheets

You must select a language.

x

Preparation and Storage

Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Erythropoietin/EPO

Erythropoietin (Epo) is a 34-39 kDa secreted glycoprotein that is a member of the type I cytokine superfamily. The mouse Epo gene encodes a 192 amino acid (aa) residue precursor that contains a 26 aa signal peptide and a 166 aa mature protein containing three potential N-linked glycosylation sites (1-4). Mouse Epo lacks the O-linked glycosylation site found in human Epo. Although carbohydrate chains are not required for in vitro receptor binding, they are required for in vivo Epo bioactivity. Depending on the cell source, different Epo isoforms are produced that differ in their glycan compositions and sialic acid contents (5-8). Mature mouse and rat Epo share 94% aa sequence identity. They also share from 80%-82% aa identity with mature human, porcine, rhesus monkey and feline Epo (2, 3). Epo is primarily produced by cells in the kidney (interstitial peritubular renal fibroblasts) and liver (hepatocytes and Ito cells), where its production is up-regulated by hypoxia. Other tissues and cells, including neural tissues (astrocytes and neurons), testis (Sertoli cells), uterus, placenta, and erythroid progenitors, have also been shown to produce Epo (9-14).

Epo is best known for its role in red blood cell formation. While Epo is not a lineage commitment factor, it inhibits apoptosis and induces burst forming unit-erythroid (BFU-E) differentiation into colony forming unit-erythroid (CFU-E), and the subsequent proliferation and maturation of CFU-E into early normoblasts (10, 15, 16). Apart from its role in erythropoiesis, Epo also acts on various non-hematopoietic cells to function as a viability and proliferation factor. Epo can stimulate myoblast proliferation while suppressing its differentiation, resulting in the expansion of the progenitor cell population (17). Epo is a tissueprotective factor that protects against ischemic and toxic injuries to neuronal, cardiovascular and renal tissues (18, 19). Epo has also been shown to promote angiogenesis in various physiologic and pathologic conditions (20, 21).
Epo binds and signals via the high-affinity preformed homodimeric Epo receptor (Epo R) that is composed of two Epo R subunits. Each Epo R subunit is a type I transmembrane glycoprotein that belongs to the type I cytokine receptor superfamily (18, 22-24). Its extracellular domain contains the characteristic two fibronectin type III domains and a WSxWS motif near the plasma membrane (24, 25). Binding of Epo to the Epo R homodimer results in conformational change and phosphorylation and activation of the non-receptor protein kinase JAK2, which activates the downstream signaling cascade (26). An alternative Epo heteromeric receptor complex that transduces cell-protective signals and containing the beta common receptor ( beta CR) subunit in addition to the Epo R subunit has been described. beta CR also belongs to the type I cytokine receptor superfamily and is a subunit that is shared by the heteromeric IL-3, IL-5 and GM-CSF receptor complexes. Epo binds with lower affinity to the heteromeric receptor consisting of a Epo R subunit and a beta CR homodimer (18).

Entrez Gene IDs:
2056 (Human); 13856 (Mouse); 24335 (Rat)
Alternate Names:
ECYT5; EP; EPO; epoetin; Erythropoietin; MGC138142; MVCD2

Assay Procedure

GENERAL ELISA PROTOCOL

Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block plates by adding 300 μL Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.
  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.

Citation for Mouse Erythropoietin/EPO DuoSet ELISA

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. The Oral Ferroportin Inhibitor VIT-2763 Improves Erythropoiesis without Interfering with Iron Chelation Therapy in a Mouse Model of &beta-Thalassemia
    Authors: N Nyffenegge, A Flace, C Doucerain, F Dürrenberg, V Manolova
    International Journal of Molecular Sciences, 2021;22(2):.
    Species: Mouse
    Sample Types: Serum
