Intercellular adhesion molecule-5 (ICAM-5), also known as telencephalin, is a cell surface glycoprotein belonging to the immunoglobulin superfamily. Human ICAM-5 consists of an 832 amino acid (aa) extracellular domain containing 9 immunoglobulin (Ig) domains and 15 N-glycosylation sites, a 28 aa transmembrane domain, and a 64 aa cytoplasmic domain. ICAM-5 shares 38‑55% aa identity with other ICAMs, being most closely related to ICAM-1 (50% identity) and ICAM-3 (55% identity) (1). Human and mouse ICAM-5 share 85% aa identity. The tissue distribution of ICAM-5 is unique among ICAMs, being expressed only in telencephalic regions of the central nervous system (2). Like other ICAMs, ICAM-5 binds to the leukocyte integrin LFA-1 (CD11a/CD18) (3). Binding of ICAM-5 to LFA-1 is dependent on the first amino terminal Ig domain of ICAM-5 (4). ICAM-5 also displays homophilic binding, with the amino terminal Ig domain binding to Ig domains 4‑5. Homophilic binding of ICAM-5 is dependent of ICAM-5 being in a monomeric form. The monomeric form of ICAM-5 is found during dendritogenesis in developing brain, whereas a high molecular weight complex is found in mature neurons (5).
Human ICAM‑5 Antibody
R&D Systems | Catalog # AF1950
Key Product Details
Species Reactivity
Human
Applications
Validated:
Western Blot, Simple Western
Cited:
Western Blot, Flow Cytometry
Label
Unconjugated
Antibody Source
Polyclonal Goat IgG
Loading...
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant human ICAM-5
Ala28-Glu570
Accession # Q9UMF0
Ala28-Glu570
Accession # Q9UMF0
Specificity
Detects human ICAM-5 in direct ELISAs and Western blots. In direct ELISAs and Western blots, approximately 10% cross-reactivity with recombinant mouse ICAM-5 is observed and less than 2% cross-reactivity with recombinant human (rh) ICAM-1, rhICAM-2 and rhICAM-3 is observed.
Clonality
Polyclonal
Host
Goat
Isotype
IgG
Scientific Data Images for Human ICAM‑5 Antibody
Detection of Human ICAM‑5 by Western Blot.
Western blot shows lysates of human brain (motor cortex) tissue. PVDF membrane was probed with 0.1 µg/mL of Goat Anti-Human ICAM-5 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1950) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). Specific bands were detected for ICAM-5 at approximately 115 and 140 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Detection of Human ICAM‑5 by Simple WesternTM.

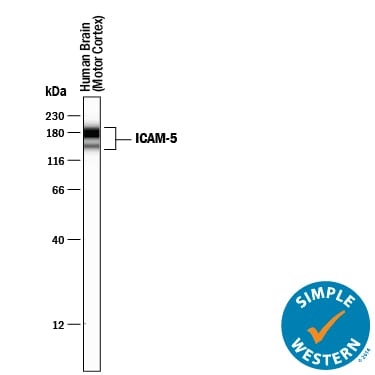

Simple Western lane view shows lysates of human brain (motor cortex) tissue, loaded at 0.2 mg/mL. Specific bands were detected for ICAM-5 at approximately 146 and 180 kDa (as indicated) using 1 µg/mL of Goat Anti-Human ICAM-5 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1950) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.Applications for Human ICAM‑5 Antibody
Application
Recommended Usage
Simple Western
1 µg/mL
Sample: Human brain (motor cortex) tissue
Sample: Human brain (motor cortex) tissue
Western Blot
0.1 µg/mL
Sample: Human brain (motor cortex) tissue
Sample: Human brain (motor cortex) tissue
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: ICAM-5
References
- Mizuno, T. et al. (1997) J. Biol. Chem. 272:1156.
- Yoshihara, Y. et al. (1994) Neuron 12:541.
- Tain, L. et al. (1997) J. Immunol. 158:928.
- Tain, L. et al. (2000) Eur. J. Immunol. 30:810.
- Tain, L. et al. (2000) J. Immunol. 150:243.
