Key Product Details

Species Reactivity

Validated:

Human, Mouse, Rat

Cited:

Human, Mouse

Applications

Validated:

Immunohistochemistry, Western Blot, ELISA, Simple Western

Cited:

Immunohistochemistry

Label

Unconjugated

Antibody Source

Polyclonal Sheep IgG
View all Neurogranin Primary Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant human Neurogranin
Met1-Asp78
Accession # Q92686

Specificity

Detects human, mouse, and rat Neurogranin Western blots.

Clonality

Polyclonal

Host

Sheep

Isotype

IgG

Scientific Data Images for Human/Mouse/Rat Neurogranin Antibody

Detection of Human, Mouse, and Rat Neurogranin antibody by Western Blot.

Detection of Human, Mouse, and Rat Neurogranin by Western Blot.

Western blot shows lysates of mouse brain (cortex) tissue, human brain (motor cortex) tissue, and rat brain (cortex) tissue. PVDF membrane was probed with 0.5 µg/mL of Sheep Anti-Human/Mouse/Rat Neurogranin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7947) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (HAF016). A specific band was detected for Neurogranin at approximately 14-16 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Neurogranin antibody in Rat Brain by Immunohistochemistry (IHC-Fr).

Neurogranin in Rat Brain.

Neurogranin was detected in perfusion fixed frozen sections of rat brain (hippocampus) using Sheep Anti-Human/Mouse/Rat Neurogranin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7947) at 0.5 µg/mL overnight at 4 °C. Tissue was stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; NL010) and counterstained with DAPI (blue). Specific staining was localized to pyramidal neurons in the hippocampus. View our protocol for Fluorescent IHC Staining of Frozen Tissue Sections.

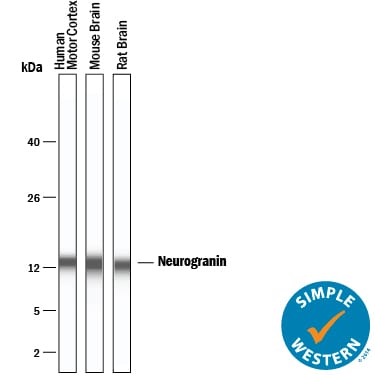

Detection of Human, Mouse, and Rat Neurogranin by Simple WesternTM.

Simple Western lane view shows lysates of human brain (motor cortex), mouse brain, and rat brain, loaded at 0.2 mg/mL. A specific band was detected for Neurogranin at approximately 12 kDa (as indicated) using 20 µg/mL of Sheep Anti-Human/Mouse/Rat Neurogranin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7947) followed by 1:50 dilution of HRP-conjugated Anti-Sheep IgG Secondary Antibody (HAF016). This experiment was conducted under reducing conditions and using the 2-40 kDa separation system.

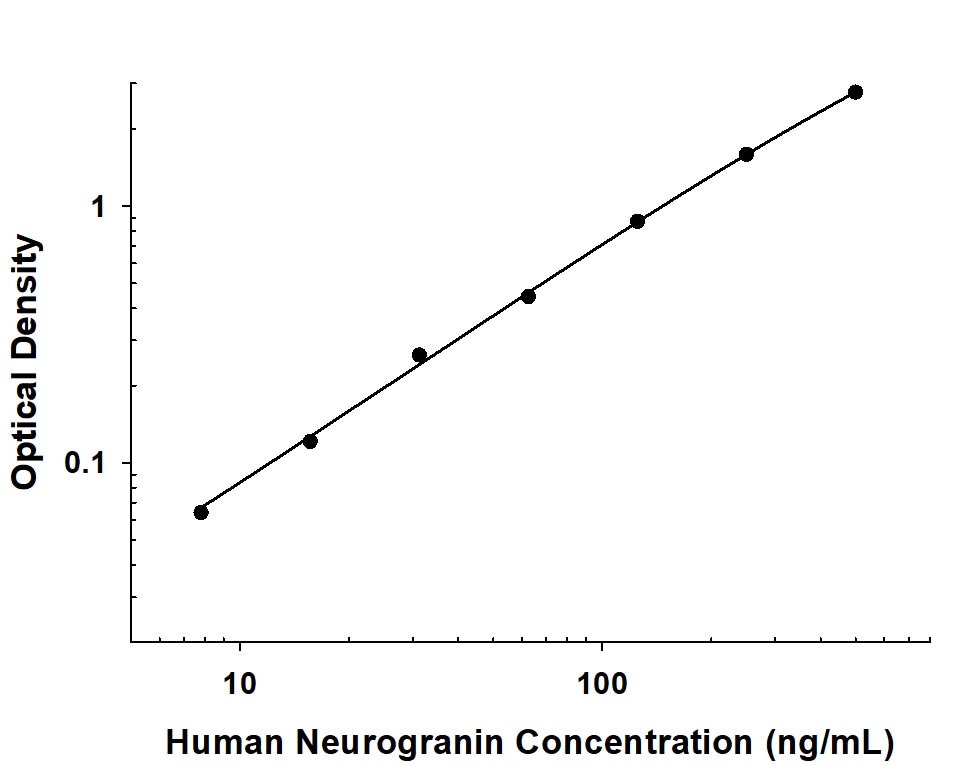

Human Neurogranin ELISA Standard Curve.

Recombinant Human Neurogranin protein was serially diluted 2-fold and captured by Mouse Anti-Human Neurogranin Monoclonal Antibody (Catalog # MAB79473) coated on a Clear Polystyrene Microplate (Catalog # DY990). Sheep Anti-Human/Mouse/Rat Neurogranin Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7947) was biotinylated and incubated with the protein captured on the plate. Detection of the standard curve was achieved by incubating Streptavidin-HRP (Catalog # DY998) followed by Substrate Solution (Catalog # DY999) and stopping the enzymatic reaction with Stop Solution (Catalog # DY994).

Applications for Human/Mouse/Rat Neurogranin Antibody

Application
Recommended Usage

ELISA

This antibody functions as a human Neurogranin ELISA detection antibody when paired with Catalog # MAB79473

Immunohistochemistry

0.5-15 µg/mL
Sample: Perfusion fixed frozen sections of rat brain (hippocampus)

Simple Western

20 µg/mL
Sample: Human brain (motor cortex), mouse brain, and rat brain

Western Blot

0.5 µg/mL
Sample: Mouse brain (cortex) tissue, human brain (motor cortex) tissue, and rat brain (cortex) tissue

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Neurogranin

NRGN (Neurogranin/Ng; also RC3, p17 and BICKS) is a member of the neurogranin family of proteins. Although its predicted MW is 7.5 kDa, it runs anomalously at 15-19 kDa in SDS-PAGE. This is apparently due to the adoption of a rigid alpha -helical structure in a negatively charged medium. NRGN has limited expression, being found principally in excitatory neurons of the telencephalon, Golgi and Purkinje cells of the cerebellum, and platelets plus B and T cells in non-nervous tissue. Intracellularly, NRGN is found associated with membranes of the ER, Golgi and mitochondria. This association is often in the form of aggregates (or granules), thus giving rise to its name ("neuro-granules"). NRGN is also found in the nucleus and associated with the postsynaptic spines of dendrites. The principal function of NRGN appears to be the binding, sequestration and concentration of CaM (calmodulin; a Ca-binding protein) in dendritic spines. Following NMDAR activation, Ca diffuses into the synaptic area, resulting in 1) the simply dissociation of CaM from NRGN, or 2) the phosphorylation of NRGN followed by its dissociation fro CaM. In either case, the freed CaM is now available to activate multiple downstream signaling pathways, some involved in LTP (or memory). Human NRGN is 78 amino acids (aa) in length. It contains one IQ domain (aa 26-47) that binds CaM, and a collagen-like region at the C-terminus (aa 48-78). Regulatory phosphorylation occurs on Ser36, and the N-terminal Met is acetylated. Full-length human NRGN shares 96% aa sequence identity with both mouse and rat NRGN.

Alternate Names

hng, NRGN, RC3

Entrez Gene IDs

4900 (Human); 64011 (Mouse); 64356 (Rat)

Gene Symbol

NRGN

UniProt

Q92686
