Human VEGFR2/KDR/Flk-1 Antibody

Name: Human VEGFR2/KDR/Flk-1 Antibody
Brand: R&D Systems
SKU: MAB3572R
Price: 489 USD
Availability: InStock

R&D Systems | Catalog # MAB3572R

Submit a review

Product Documents

Recombinant Monoclonal Antibody.

View Available Conjugates

100% Guarantee

Product Specifications
Scientific Data
Applications
Flow Cytometry
Preparation & Storage
Calculators
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Species Reactivity

Human

Applications

Neutralization, Flow Cytometry, CyTOF-ready

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Mouse IgG₁ Clone # 89106R

View all VEGFR2/KDR/Flk-1 Primary Antibodies »

Product Specifications

Immunogen

S. frugiperda insect ovarian cell line Sf 21-derived recombinant human VEGFR2/KDR/Flk-1
Ala20-Glu764
Accession # P35968

Specificity

Detects human VEGFR2/KDR/Flk-1 in direct ELISAs.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG₁

Scientific Data Images for Human VEGFR2/KDR/Flk-1 Antibody

Detection of VEGFR2/KDR/Flk‑1 in HUVEC Human Cells by Flow Cytometry.

HUVEC human umbilical vein endothelial cells were stained with Mouse Anti-Human VEGFR2/KDR/Flk-1 Monoclonal Antibody (Catalog # MAB3572R, filled histogram) or isotype control antibody (Catalog # MAB002, open histogram), followed by Phycoerythrin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0102B). View our protocol for Staining Membrane-associated Proteins.

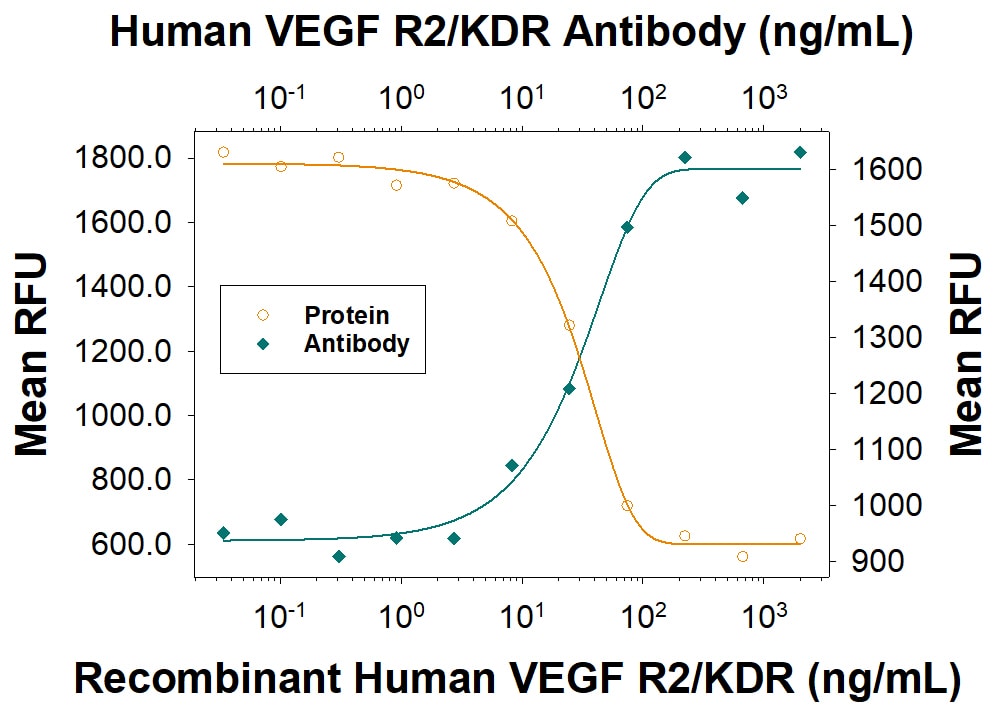

VEGFR2/KDR Inhibition of VEGF-dependent Cell Proliferation and Neutralization by Human VEGFR2/KDR Antibody.

Recombinant Human VEGFR2/KDR Fc Chimera (Catalog # 357-KD) inhibits Recombinant Human VEGF₁₆₅(Catalog # 293-VE) induced proliferation in HUVEC human umbilical vein endothelial cells in a dose-dependent manner (orange line). Inhibition of Recombinant Human VEGF₁₆₅(10 ng/mL) activity elicited by Recombinant Human VEGFR2/KDR Fc Chimera (50 ng/mL) is neutralized (green line) by increasing concentrations of Mouse Anti-Human VEGFR2/KDR Monoclonal Antibody (Catalog # MAB3572R). The ND₅₀ is typically 10-50 ng/mL.

Applications for Human VEGFR2/KDR/Flk-1 Antibody

Application

Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/10⁶ cells
Sample: HUVEC Human Cells

Neutralization

Measured by its ability to neutralize VEGFR2/KDR/Flk‑1-mediated inhibition of proliferation in HUVEC human umbilical vein endothelial cells. The Neutralization Dose (ND₅₀) is typically 10-50 ng/mL in the presence of 50 ng/mL Recombinant Human VEGFR2/KDR/Flk‑1 Fc Chimera and 10 ng/mL Recombinant Human VEGF₁₆₅.

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
Spillover Popups - Visualize the spectra of individual fluorochromes
Antigen Density Selector - Match fluorochrome brightness with antigen density

Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Background: VEGFR2/KDR/Flk-1

VEGFR2 (KDR/Flk-1), VEGFR1 (Flt-1) and VEGFR3 (Flt-4) belong to the class III subfamily of receptor tyrosine kinases (RTKs). All three receptors contain seven immunoglobulin-like repeats in their extracellular domains and kinase insert domains in their intracellular regions. The expression of VEGFR1, 2, and 3 is almost exclusively restricted to the endothelial cells. These receptors are likely to play essential roles in vasculogenesis and angiogenesis. Mature VEGFR2 is composed of a 745 aa extracellular domain, a 25 aa transmembrane domain and a 567 aa cytoplasmic domain. In contrast to VEGFR1 which binds both PlGF and VEGF with high affinity, VEGFR2 binds VEGF but not PlGF with high affinity. The recombinant soluble VEGFR2/Fc chimera binds VEGF with high affinity and is a potent VEGF antagonist.
