Key Product Details

Validated by

Knockout/Knockdown

Species Reactivity

Validated:

Mouse, Rat

Cited:

Mouse

Applications

Validated:

Immunohistochemistry, Western Blot, Simple Western

Cited:

Immunohistochemistry-Paraffin, Immunohistochemistry-Frozen, Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse CD200
Gln31-Gly232
Accession # O54901

Specificity

Detects mouse CD200 in direct ELISAs and mouse CD200 and rat CD200 Western blots. In direct ELISAs, approximately 50% cross-reactivity with recombinant human CD200 is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Mouse/Rat CD200 Antibody

Detection of Mouse and Rat CD200 antibody by Western Blot.

Detection of Mouse and Rat CD200 by Western Blot.

Western blot shows lysates of mouse brain tissue and rat brain tissue. PVDF membrane was probed with 0.25 µg/mL of Goat Anti-Mouse/Rat CD200 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3355) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF019). A specific band was detected for CD200 at approximately 38-45 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

CD200 antibody in Mouse Brain by Immunohistochemistry (IHC-Fr).

CD200 in Mouse Brain.

CD200 was detected in perfusion fixed frozen sections of normal mouse brain using Goat Anti-Mouse/Rat CD200 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3355) at 15 µg/mL overnight at 4 °C. Tissue was stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to plasma membranes of hippocampal neurons. View our protocol for Fluorescent IHC Staining of Frozen Tissue Sections.

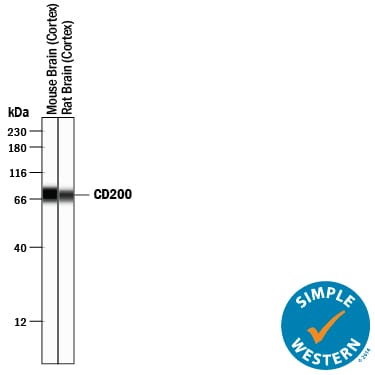

Detection of Mouse and Rat CD200 antibody by Simple WesternTM.

Detection of Mouse and Rat CD200 by Simple WesternTM.

Simple Western lane view shows lysates of mouse brain (cortex) tissue and rat brain (cortex) tissue, loaded at 0.2 mg/mL. A specific band was detected for CD200 at approximately 73-76 kDa (as indicated) using 2.5 µg/mL of Goat Anti-Mouse/Rat CD200 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF3355) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Detection of Human CD200/OX2 by Western Blot

Detection of Human CD200/OX2 by Western Blot

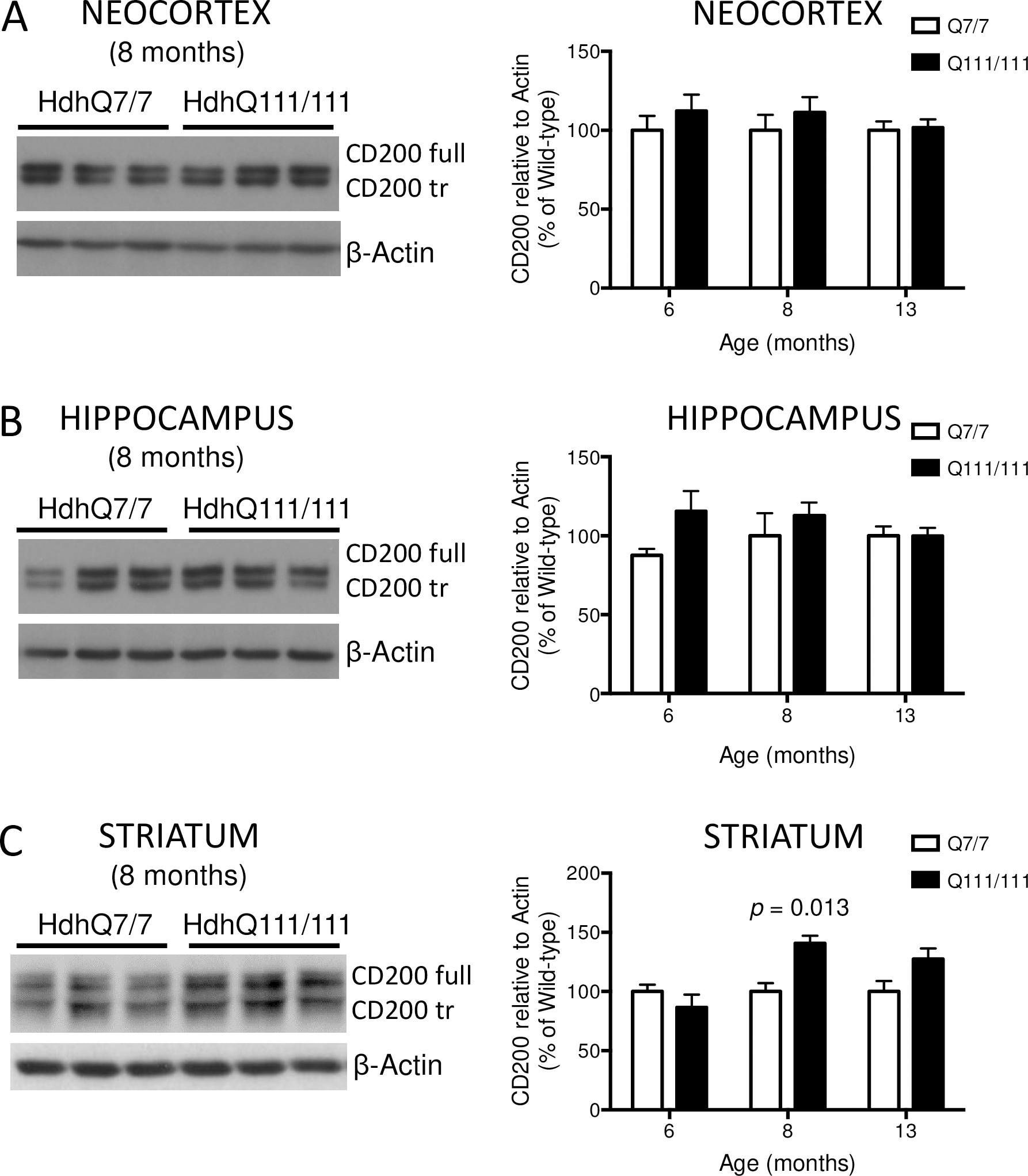

Expression of CD200 protein isoforms in neocortex, hippocampus and striatum of HdhQ7/7 and HdhQ111/7 knock-in mice were analyzed at 6, 8 and 13 months of age by Western blot.CD200full and CD200tr isoforms are observed in the three brain regions. Quantification of CD200 total protein, both isoforms, have been performed (A) in neocortex at 6 (HdhQ7/7 = 13, HdhQ111/7 = 10), 8 (HdhQ7/7 = 7, HdhQ111/7 = 7) and 13 (HdhQ7/7 = 7, HdhQ111/7 = 7) months of age; (B) in hippocampus at 6 (HdhQ7/7 = 8, HdhQ111/7 = 13), 8 (HdhQ7/7 = 7, HdhQ111/7 = 7) and 13 (HdhQ7/7 = 7, HdhQ111/7 = 7) months of age; and (C) in striatum at 6 (HdhQ7/7 = 14, HdhQ111/7 = 10), 8 (HdhQ7/7 = 14, HdhQ111/7 = 10) and 13 (HdhQ7/7 = 7, HdhQ111/7 = 7) months of age. Bars represent the mean ± SEM. p-Values are the result of the multiple t-tests of the HdhQ111/7 genotype versus the respective HdhQ7/7 group. Representative Western blots for 8 months of age are shown as the percentage of immunosignal ratio between CD200 and beta -actin relative to respective HdhQ7/7 brain region. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/31790427), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Mouse CD200/OX2 by Western Blot

Detection of Mouse CD200/OX2 by Western Blot

A beta modulates CD200R-associated signaling. A. Incubation of purified astrocytes in the presence of A beta decreased CD200 expression as illustrated in the sample immunoblot and in the densitometric data (**P < 0.01; Student’s t-test for independent means; n = 6). B and C. A beta significantly increased CD200R mRNA on purified microglia (B) and the percentage of CD200R+ CD11b+ cells (C; *P < 0.05; **P < 0.01; Student’s t-test for independent means; n = 6). D and E. Whereas A beta decreased Dok2 phosphorylation (D), CD200Fc increased its phosphorylation in a time-dependent manner (E). Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/22642833), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of Human CD200/OX2 by Western Blot

Detection of Human CD200/OX2 by Western Blot

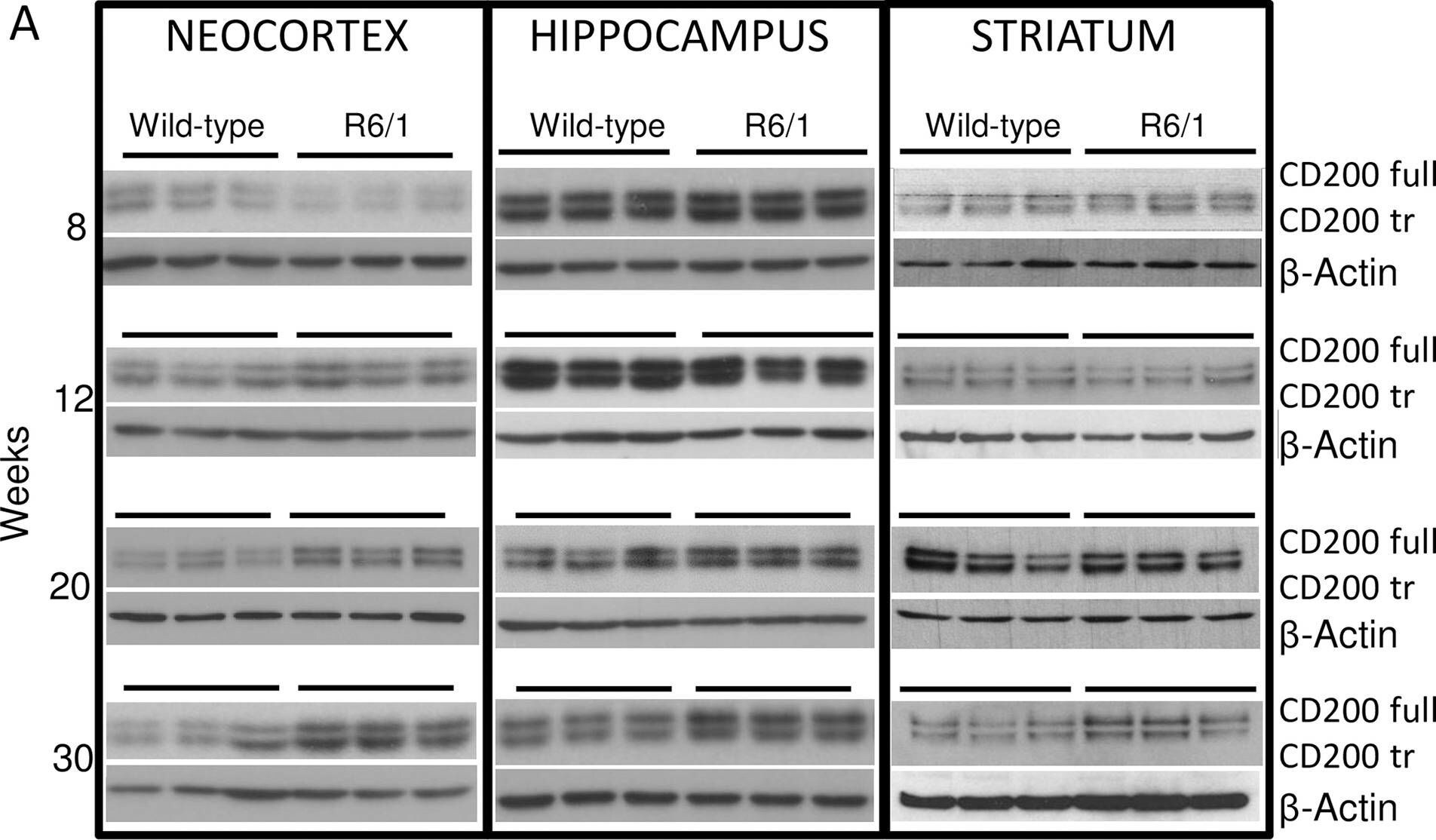

Expression of CD200 protein isoforms in R6/1 mouse brains at 8, 12, 20, and 30 weeks of age.(A) Neocortex, hippocampus and striatum were analyzed by Western blot and CD200 protein levels detected using beta -actin as loading control. Both isoforms, CD200full and the truncated CD200tr, are observed in all brain regions under analysis. Quantification of total CD200 protein (both isoforms) was measured in control (wt) and R6/1 mice: (B) in neocortex at 8 (wt = 6; R6/1 = 6), 12 (wt = 3; R6/1 = 3), 20 (wt = 3; R6/1 = 3) and 30 (wt = 3; R6/1 = 3) weeks of age; (C) in hippocampus at 8 (wt = 6; R6/1 = 6), 12 (wt = 5; R6/1 = 5), 20 (wt = 3; R6/1 = 3) and 30 (wt = 6; R6/1 = 6) weeks of age; and (D) in striatum at 8 (wt = 4; R6/1 = 5), 12 (wt = 3; R6/1 = 3), 20 (wt = 3; R6/1 = 3) and 30 (wt = 8; R6/1 = 8) weeks of age. Data are shown as percentage of immunosignal ratio between CD200 and beta -actin in R6/1 relative to their respective wild-type mice. Bars represent the means ± standard error of the means (SEM) of 3–8 animals. p-Values are the result of the multiple t-tests of the R6/1 genotype versus the respective wild-type group. Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/31790427), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of CD200 by Western Blot

Detection of CD200 by Western Blot

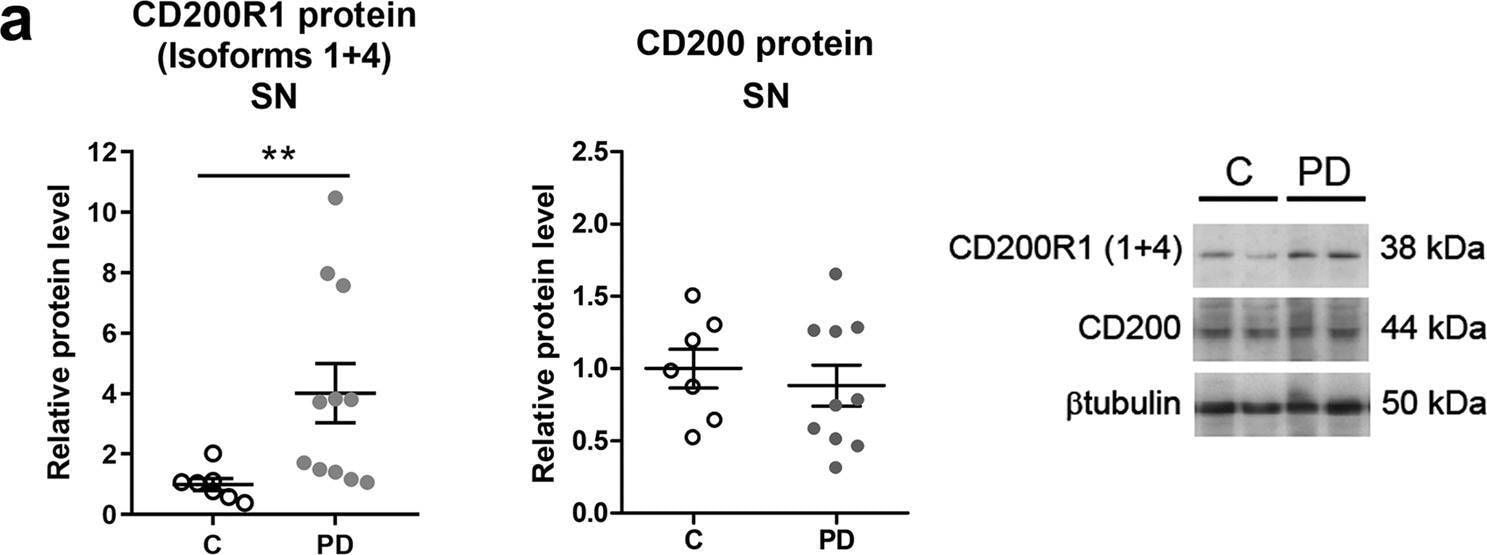

CD200R1 and CD200 protein levels in the post-mortem brain of Parkinson’s disease patients. Expression of CD200R1 protein isoforms 1 and 4 and CD200 proteins in the substantia nigra (SN) (a), frontal cortex (b), and hippocampus (c) tissue homogenates from control individuals (C, n = 4–8) and Parkinson’s disease patients (PD, n = 11–21) by western blot. Representative immunoblots are presented. Protein levels were normalized relative to beta tubulin. Data are expressed as fold change relative to C and are depicted as individual points with bars showing means ± SEM. *p < 0.05 and **p < 0.01 vs. C; Mann-Whitney test. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/35296683), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of CD200 by Western Blot

Detection of CD200 by Western Blot

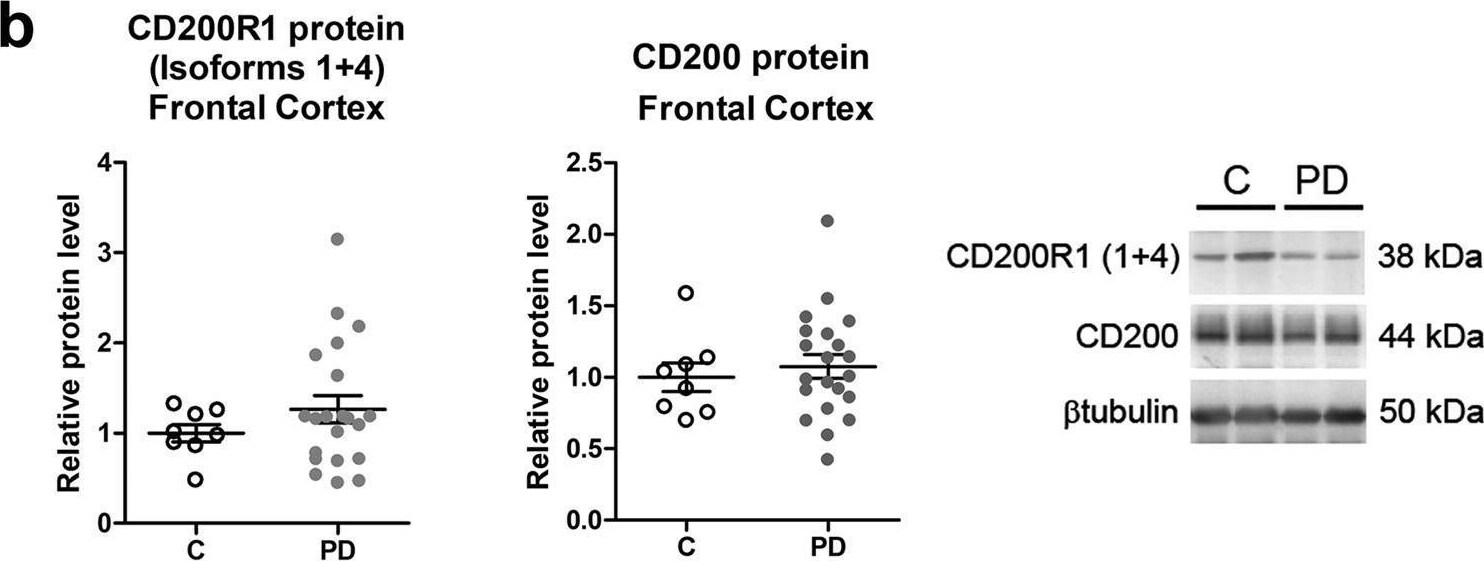

CD200R1 and CD200 protein levels in the post-mortem brain of Parkinson’s disease patients. Expression of CD200R1 protein isoforms 1 and 4 and CD200 proteins in the substantia nigra (SN) (a), frontal cortex (b), and hippocampus (c) tissue homogenates from control individuals (C, n = 4–8) and Parkinson’s disease patients (PD, n = 11–21) by western blot. Representative immunoblots are presented. Protein levels were normalized relative to beta tubulin. Data are expressed as fold change relative to C and are depicted as individual points with bars showing means ± SEM. *p < 0.05 and **p < 0.01 vs. C; Mann-Whitney test. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/35296683), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of CD200 by Western Blot

Detection of CD200 by Western Blot

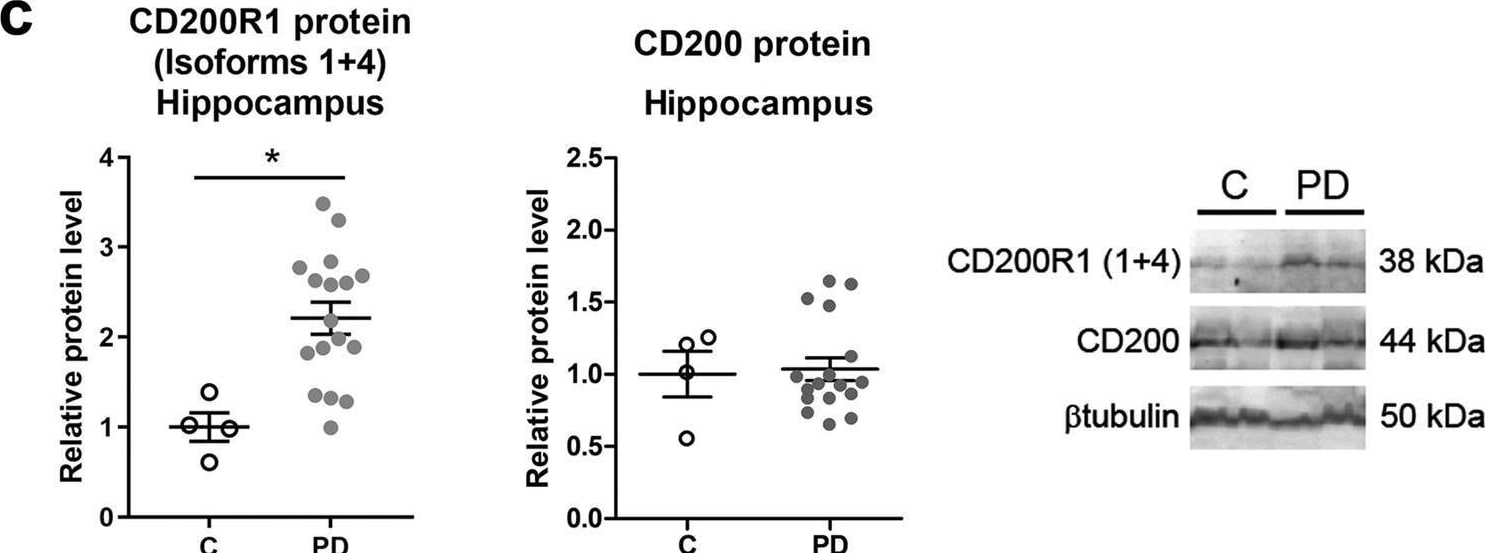

CD200R1 and CD200 protein levels in the post-mortem brain of Parkinson’s disease patients. Expression of CD200R1 protein isoforms 1 and 4 and CD200 proteins in the substantia nigra (SN) (a), frontal cortex (b), and hippocampus (c) tissue homogenates from control individuals (C, n = 4–8) and Parkinson’s disease patients (PD, n = 11–21) by western blot. Representative immunoblots are presented. Protein levels were normalized relative to beta tubulin. Data are expressed as fold change relative to C and are depicted as individual points with bars showing means ± SEM. *p < 0.05 and **p < 0.01 vs. C; Mann-Whitney test. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/35296683), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Mouse/Rat CD200 Antibody

Application
Recommended Usage

Immunohistochemistry

5-15 µg/mL
Sample: Perfusion fixed frozen sections of mouse brain (cortex)

Simple Western

2.5 µg/mL
Sample: Mouse brain (cortex) tissue and rat brain (cortex) tissue

Western Blot

0.25 µg/mL
Sample: Mouse brain tissue and rat brain tissue

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.


Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: CD200

CD200, also known as OX-2, is a 45 kDa type I transmembrane immunoregulatory protein that belongs to the immunoglobulin superfamily (1, 2). The mouse CD200 cDNA encodes a 278 amino acid (aa) precursor that includes a 30 aa signal sequence, a 202 aa extracellular domain (ECD), a 27 aa transmembrane segment, and a 19 aa cytoplasmic domain. The ECD is composed of one Ig-likeV-type and one Ig-like C2-type domain (3). Splice variants of CD200 have been described in human but not in mouse. Within the ECD, mouse CD200 shares 76% and 94% aa sequence identity with human and rat CD200, respectively. CD200 is widely but not ubiquitously expressed (4). Its receptor (CD200R) is restricted primarily to mast cells, basophils, macrophages, and dendritic cells, which suggests myeloid cell regulation as the major function of CD200 (5‑7). CD200 knockout mice are characterized by increased macrophage number and activation, and are predisposed to autoimmune disorders (8). CD200 and CD200 R associate via their respective N-terminal Ig-like domains (9). In myeloid cells, CD200 R initiates inhibitory signals following receptor-ligand contact (6, 7, 10). In T cells, CD200 functions as a costimulatory molecule that is independent of the CD28 pathway (11). Several additional CD200 R-like molecules have been identified in human and mouse, but their capacity to interact with CD200 is controversial (12, 13). Several viruses encode CD200 homologs which are expressed on infected cells during the lytic phase (14, 15). Like CD200 itself, viral CD200 homologs also suppress myeloid cell activity, enabling increased viral propagation (5, 14‑16).

References

  1. Gorczynski, R.M. (2005) Curr. Opin. Invest. Drugs 6:483.
  2. Barclay, A.N. et al. (2002) Trends Immunol. 23:285.
  3. Chen, Z. et al. (1997) Biochim. Biophys. Acta 1362:6.
  4. Wright, G.J. et al. (2001) Immunology 102:173.
  5. Shiratori, I. et al. (2005) J. Immunol. 175:4441.
  6. Cherwinski, H.M. et al. (2005) J. Immunol. 174:1348.
  7. Fallarino, F. et al. (2004) J. Immunol. 173:3748.
  8. Hoek, R.M. et al. (2000) Science 290:1768.
  9. Hatherley, D. and A.N. Barclay (2004) Eur. J. Immunol. 34:1688.
  10. Jenmalm, M.C. et al. (2006) J. Immunol. 176:191.
  11. Borriello, F. et al. (1997) J. Immunol. 158:4548.
  12. Gorczynski, R. et al. (2004) J. Immunol. 172:7744.
  13. Hatherley, D. et al. (2005) J. Immunol. 175:2469.
  14. Foster-Cuevas, M. et al. (2004) J. Virol. 78:7667.
  15. Cameron, C.M. et al. (2005) J. Virol. 79:6052.
  16. Langlais, C.L. et al. (2006) J. Virol. 80:3098.

Alternate Names

CD200, MOX1, MOX2, MRC, OX-2

Entrez Gene IDs

4345 (Human); 17470 (Mouse); 102146004 (Cynomolgus Monkey)

Gene Symbol

CD200
