Key Product Details

Species Reactivity

Human

Applications

Immunohistochemistry, Immunocytochemistry

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 1058221
View all LAG-3 Primary Antibodies »

Product Specifications

Immunogen

Human Lag-3 Peptide

Accession # P18627

Specificity

Detects human LAG-3 in direct ELISA.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for Human LAG‑3 Antibody

Detection of LAG‑3 in tonsil.

LAG‑3 was detected in immersion fixed paraffin-embedded sections of tonsil using Mouse Anti-Human LAG‑3 Monoclonal Antibody (Catalog # MAB231971) at 5 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Mouse IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC001). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using VisUCyte Antigen Retrieval Reagent-Basic (Catalog # VCTS021). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to lymphocytes. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.

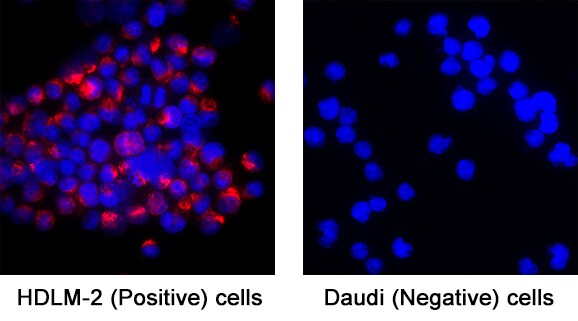

LAG‑3 in HDLM‑2 (Positive) & Daudi (Negative).

LAG‑3 was detected in immersion fixed HDLM‑2 Human Hodgkin’s lymphoma cell line (Positive) & Daudi Human Burkitt's lymphoma cell line (Negative) using Mouse Anti-Human LAG‑3 Monoclonal Antibody (Catalog # MAB231971) at 8 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Mouse IgG Secondary Antibody (red; Catalog # NL007) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm. View our protocol for Fluorescent ICC Staining of Non-adherent Cells.

Applications for Human LAG‑3 Antibody

Application
Recommended Usage

Immunocytochemistry

8-25 µg/mL
Sample: Immersion fixed HDLM‑2 human Hodgkin's lymphoma cell line (Positive) & Daudi human Burkitt's lymphoma cell line (Negative)

Immunohistochemistry

5-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of tonsil

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: LAG-3

LAG-3 (Lymphocyte activation gene-3), also known as CD223, is a member of the immunoglobulin superfamily (IgSF). The mature LAG-3 protein is a 496 amino acid (aa) membrane protein with a 421 aa extracellular region which contains four IgSF domains, a 21 aa transmembrane region and a 54 aa cytoplasmic region. LAG-3 and CD4 molecules share <20% aa sequence homology but have a similar structure (1, 2). Both molecules bind to MHC class II. LAG-3 binds to MHC class II with higher affinity compared to CD4. Both LAG-3 and CD4 genes are located on the distal part of the short arm of chromosome 12. LAG-3 is an activation-induced molecule, expressed on activated T cells and NK cells, but not on resting T cells. Studies using LAG-3 -/- mice have shown significant delay of T cell apoptosis following antigen stimulation and increased size of memory T cells pool following infection (3, 4). It also has been reported that anti-LAG-3 antibodies up-regulate T cell activation by blocking interaction of LAG-3 and MHC class II. The study has demonstrated that LAG-3 is selectively expressed on activated CD4+CD25+ TReg cells and plays a role in their suppressive activity (5). This evidence indicated, unlike the interaction of CD4 with MHC class II that plays a positive role in T cell activation, LAG-3 binds to MHC class II and negatively regulates T cell activation through LAG-3 signaling. On the other hand, studies have shown that binding of LAG-3 to MHC class II molecules on antigen presenting cells induce maturation of dendritic cells and cytokine secretion by monocytes through MHC class II signal transduction (6). Taken together, LAG-3 may have two major functions, it negatively regulates T cells activation through LAG-3 signaling and stimulates antigen presenting cells which express MHC class II.

References

  1. Triebel, F. et al. (1990) J. Exp. Med. 171:1393.
  2. Baixeras, E. et al. (1992) J. Exp. Med 176:327.
  3. Workman, C.J. and D.A. Vignali (2003) Eur. J. Immunol. 33:970.
  4. Workman, C.J. et al. (2004) J. Immunol. 172:5450.
  5. Huang, C.T. et al. (2004) Immunity 21:503.
  6. Andreae, S. et al. (2003) Blood 102:2130.

Long Name

Lymphocyte-activation Gene 3

Alternate Names

CD223, LAG3

Entrez Gene IDs

3902 (Human); 16768 (Mouse); 297596 (Rat); 102122272 (Cynomolgus Monkey)

Gene Symbol

LAG3

UniProt

P18627
