Human/Mouse ERK5/BMK1 Antibody

Catalog # Availability Size / Price Qty
Detection of Human/Mouse ERK5/BMK1 by Western Blot.
2 Images
Product Details
Citations (4)
Supplemental Products
Reviews (1)

Human/Mouse ERK5/BMK1 Antibody Summary

Species Reactivity
Human, Mouse
Detects human and mouse ERK5/BMK1 in Western blots.
Polyclonal Goat IgG
Antigen Affinity-purified
E. coli-derived recombinant human ERK5/BMK1
Accession # Q13164
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.


Recommended Concentration
Western Blot
1 µg/mL
See below
10-25 µg/mL
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Western Blot Detection of Human/Mouse ERK5/BMK1 antibody by Western Blot. View Larger

Detection of Human/Mouse ERK5/BMK1 by Western Blot. Western blot shows lysates of MDA-MB-468 human breast cancer cell line, Raji human Burkitt's lymphoma cell line, and Neuro-2A mouse neuroblastoma cell line. PVDF membrane was probed with 1 µg/mL of Goat Anti-Human/Mouse ERK5/BMK1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2848) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). A specific band was detected for ERK5/BMK1 at approximately 115 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Immunocytochemistry ERK5/BMK1 antibody in HeLa Human Cell Line by Immunocytochemistry (ICC). View Larger

ERK5/BMK1 in HeLa Human Cell Line. ERK5/BMK1 was detected in immersion fixed HeLa human cervical epithelial carcinoma cell line using Goat Anti-Human/Mouse ERK5/BMK1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2848) at 15 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm and nuclei. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

Reconstitute at 0.2 mg/mL in sterile PBS.
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: ERK5/BMK1

Extracellular signal-regulated kinase 5 (ERK5), also known as big mitogen-activated protein kinase 1 (BMK1) and MAPK7, is activated by a several mechanisms, including receptor tyrosine kinases, G protein-coupled receptors, and osmotic stress. Like ERK1 and ERK2, ERK5 contains the conserved Thr-Glu-Tyr activation motif in its activation loop. Unlike these ERKs, however, ERK5 contains a unique C-terminal domain that regulates its activation and nuclear translocation. ERK5’s upstream MAPK kinase has been identified as MEK5.

Long Name
Extracellular Signal-regulated Kinase 5
Entrez Gene IDs
5598 (Human); 23939 (Mouse)
Alternate Names
Big MAP kinase 1; BMK1 kinase; BMK1; BMK-1; BMK1EC; EC 2.7.11; ERK5; ERK-5; ERK5MAPK 7; Extracellular signal-regulated kinase 5; extracellular-signal-regulated kinase 5; MAP kinase 7; MAPK7; mitogen-activated protein kinase 7; PRKM7ERK4

Product Datasheets

You must select a language.


Citations for Human/Mouse ERK5/BMK1 Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

4 Citations: Showing 1 - 4
Filter your results:

Filter by:

  1. Memantine protects against ischemia/reperfusion-induced brain endothelial permeability
    Authors: Y Liu, Y Huang, Y Xu, P Qu, M Wang
    IUBMB Life, 2018-03-15;0(0):.
    Species: Human
    Sample Types: Cell Lysates
    Applications: Western Blot
  2. Statin regulated ERK5 stimulates tight junction formation and reduces permeability in human cardiac endothelial cells
    Authors: Emma L. Wilkinson, James E. Sidaway, Michael J. Cross
    Journal of Cellular Physiology
  3. Erk5 is a mediator to TGFbeta1-induced loss of phenotype and function in human podocytes.
    Authors: Badshah I, Baines D, Dockrell M
    Front Pharmacol, 2014-04-21;5(0):71.
    Species: Human
    Sample Types: Whole Cells
    Applications: ICC
  4. TGF-beta activates ERK5 in human renal epithelial cells.
    Authors: Browne JA, Pearson AL, Zahr RA, Niculescu-Duvaz I, Baines DL, Dockrell ME
    Biochem. Biophys. Res. Commun., 2008-06-25;373(3):440-4.
    Species: Human
    Sample Types: Whole Cells
    Applications: ICC


No product specific FAQs exist for this product, however you may

View all Antibody FAQs

Reviews for Human/Mouse ERK5/BMK1 Antibody

Average Rating: 5 (Based on 1 Review)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Human/Mouse ERK5/BMK1 Antibody?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Human/Mouse ERK5/BMK1 Antibody

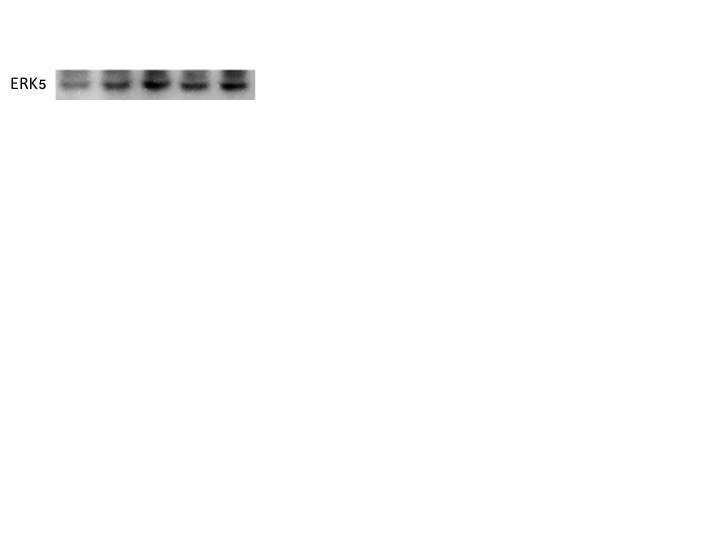

By Anonymous on 07/21/2018
Application: WB Sample Tested: HEK293 human embryonic kidney cell line Species: Human
