CD200, also known as OX-2, is a 45 kDa transmembrane immunoregulatory protein that belongs to the immunoglobulin superfamily (1, 2). The human CD200 cDNA encodes a 278 amino acid (aa) precursor that includes a 30 aa signal sequence, a 202 aa extracellular domain (ECD), a 27 aa transmembrane segment, and a 19 aa cytoplasmic domain. The ECD is composed of one Ig-like V-type domain and one Ig-like C2-type domain (3). A splice variant of CD200 has been described and has a truncated cytoplasmic tail. Within the ECD, human CD200 shares 76% aa sequence identity with mouse and rat CD200. CD200 is widely but not ubiquitously expressed (4). Its receptor (CD200R) is restricted primarily to mast cells, basophils, macrophages, and dendritic cells, which suggests myeloid cell regulation as the major function of CD200 (5-7). CD200 knockout mice are characterized by increased macrophage number and activation and are predisposed to autoimmune disorders (8). CD200 and CD200R associate via their respective N-terminal Ig-like domains (9). In myeloid cells, CD200R initiates inhibitory signals following receptor‑ligand contact (6, 7, 10). In T cells, however, CD200 functions as a costimulatory molecule independent of the CD28 pathway (11). Several additional CD200R-like molecules have been identified in human and mouse, but their capacity to interact with CD200 is controversial (12, 13). Several viruses encode CD200 homologs which are expressed on infected cells during the lytic phase (14, 15). Like CD200 itself, viral CD200 homologs also suppress myeloid cell activity, enabling increased viral propagation (5, 14-16).
Human/Mouse/Rat CD200 Antibody
R&D Systems | Catalog # AF2724
Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Gln31-Gly232
Accession # P41217
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human/Mouse/Rat CD200 Antibody
Detection of Human, Mouse, and Rat CD200 by Western Blot.
Western blot shows lysates of human, mouse, and rat brain (cortex) tissue, human tonsil tissue, and human dendritic cells (mature). PVDF membrane was probed with 0.5 µg/mL of Goat Anti-Human/Mouse/Rat CD200 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2724) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band was detected for CD200 at approximately 42 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
CD200 in Human Placenta.
CD200 was detected in immersion fixed paraffin-embedded sections of human placenta using Goat Anti-Human/Mouse/Rat CD200 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2724) at 15 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Goat HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS008) and counterstained with hematoxylin (blue). View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

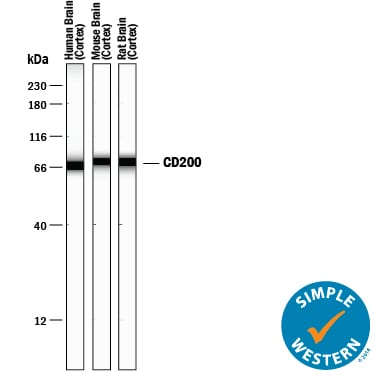

Detection of Human, Mouse, and Rat CD200 by Simple WesternTM.
Simple Western lane view shows lysates of human, mouse, and rat brain (cortex) tissue, loaded at 0.2 mg/mL. A specific band was detected for CD200 at approximately 70-75 kDa (as indicated) using 10 µg/mL of Goat Anti-Human/Mouse/Rat CD200 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2724) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.
Detection of CD200 by Western Blot
Characteristics of captured exosomes. A) A representative Western blot profile of the captured CD34+ exosomes and of non-captured CD34neg exosomes which were isolated by ultracentrifugation from the same AML plasma sample. B) After co-incubation of NK cells with CD34+ exosomes captured directly from AML plasma or CD34neg exosomes as described in materials and Methods, NKG2D expression (in MFI) was found to be down-regulated only with CD34+ exosomes (red) compared to CD34neg exosomes (green) or control without exosomes (blue). The gray peak denotes isotype control. In contrast, NKp46 expression was down-regulated by co-incubation with CD34neg exosomes. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/25093329), licensed under a CC-BY license. Not internally tested by R&D Systems.Detection of CD200 by Western Blot

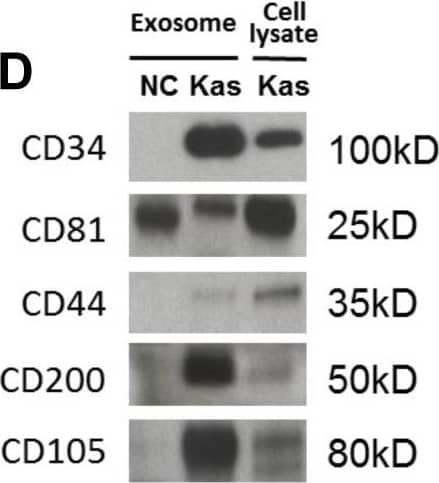

Studies with the Kasumi-1 cell line and with exosomes derived from Kasumi-1 culture supernatants. A) Flow cytometry of Kasumi-1 cells shows expression of blast markers, CD34, CD117 and CD33 and of CD81 (tetraspanin). Dotted lines indicate isotype controls. B) Kasumi-1 exosomes were separated on a continuous sucrose density gradient, and the collected gradient fractions were tested in Western blots for CD34 and CD81. CD34+ and CD81+ exosomes were recovered at the density of 1.10–1.14. C) An electron microscope image of isolated and negatively stained Kasumi-1 exosomes. D) Western blots of isolated Kasumi-1 exosomes (Kas) and of exosomes isolated from plasma of a normal donor (NC). Each lane was loaded with 10 µg exosomal protein. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/25093329), licensed under a CC-BY license. Not internally tested by R&D Systems.Applications for Human/Mouse/Rat CD200 Antibody
CyTOF-ready
Flow Cytometry
Sample: Human whole blood CD19+ B cells
Immunohistochemistry
Sample: Immersion fixed paraffin-embedded sections of human placenta
Simple Western
Sample: Human, mouse, and rat brain (cortex) tissue
Western Blot
Sample: Human, mouse, and rat brain (cortex) tissue, human tonsil tissue, and human dendritic cells (mature)
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: CD200
References
- Gorczynski, R.M. (2005) Curr. Opin. Invest. Drugs 6:483.
- Barclay, A.N. et al. (2002) Trends Immunol. 23:285.
- McCaughan, G.W. et al. (1987) Immunogenetics 25:329.
- Wright, G.J. et al. (2001) Immunology 102:173.
- Shiratori, I. et al. (2005) J. Immunol. 175:4441.
- Cherwinski, H.M. et al. (2005) J. Immunol. 174:1348.
- Fallarino, F. et al. (2004) J. Immunol. 173:3748.
- Hoek, R.M. et al. (2000) Science 290:1768.
- Hatherley, D. and A.N. Barclay (2004) Eur. J. Immunol. 34:1688.
- Jenmalm, M.C. et al. (2006) J. Immunol. 176:191.
- Borriello, F. et al. (1997) J. Immunol. 158:4548.
- Gorczynski, R. et al. (2004) J. Immunol. 172:7744.
- Hatherley, D. et al. (2005) J. Immunol. 175:2469.
- Foster-Cuevas, M. et al. (2004) J. Virol. 78:7667.
- Cameron, C.M. et al. (2005) J. Virol. 79:6052.
- Langlais, C.L. et al. (2006) J. Virol. 80:3098.
