VSIG1 (V-set and Ig domain-containing protein 1; also Glycoprotein A34) is a variably glycosylated 55‑70 kDa member of the JAM family of proteins. It has restricted expression, being limited to testicular germ cells plus pancreatic duct and gastric epithelium. VSIG1 is likely to serve as an adhesion molecule. Mature human VSIG1 is 366 amino acids (aa) in length. It is a type I transmembrane glycoprotein that contains a 211 aa extracellular domain (ECD). The ECD contains one V-type (aa 22‑132) and one C2-type Ig-like domain (aa 140‑227). Over aa 22‑234, human VSIG1 is 83% aa identical to both mouse and canine VSIG1. At least one potential splice variant exists in human. It shows an insertion of 36 aa after Ser72 and a deletion of aa 133‑387.
Human VSIG1 Antibody
R&D Systems | Catalog # MAB48181
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Val22-Gly234
Accession # Q86XK7
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human VSIG1 Antibody
Detection of Human VSIG1 by Western Blot.
Western blot shows lysates of human stomach tissue and human testis tissue. PVDF membrane was probed with 0.5 µg/mL of Rabbit Anti-Human VSIG1 Monoclonal Antibody (Catalog # MAB48181) followed by HRP-conjugated Anti-Rabbit IgG Secondary Antibody (Catalog # HAF008). Specific bands were detected for VSIG1 at approximately 55-75 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

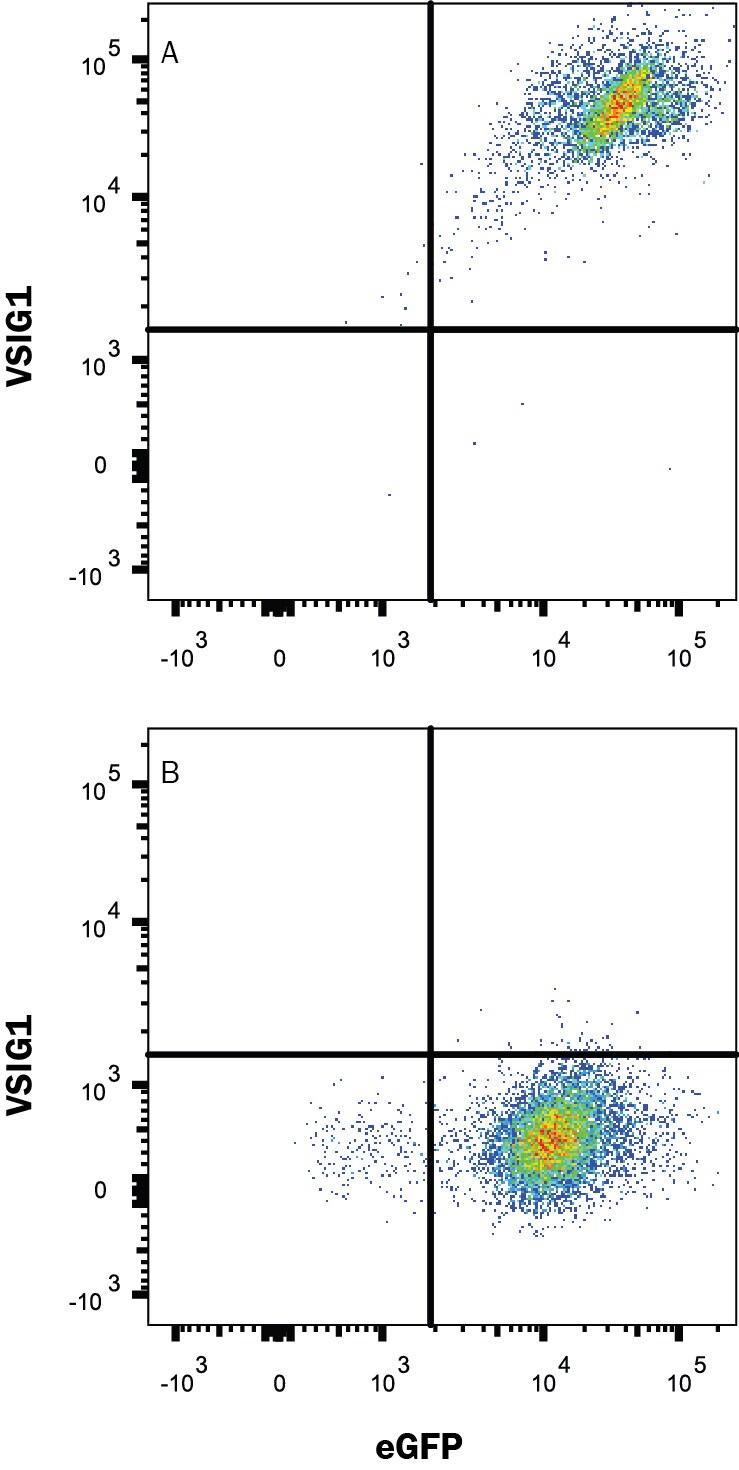

Detection of VSIG1 in HEK293 Human Cell Line Transfected with Human VSIG1 and eGFP by Flow Cytometry.
HEK293 human embryonic kidney cell line transfected with either (A) human VSIG1 or (B) irrelevant transfectants and eGFP was stained with Rabbit Anti-Human VSIG1 Monoclonal Antibody (Catalog # MAB48181) followed by Allophycocyanin-conjugated Anti-Rabbit IgG Secondary Antibody (Catalog # F0111). Quadrant markers were set based on control antibody staining (Catalog # MAB1050). View our protocol for Staining Membrane-associated Proteins.
VSIG1 in Human Testis.
VSIG1 was detected in immersion fixed paraffin-embedded sections of human testis using Rabbit Anti-Human VSIG1 Monoclonal Antibody (Catalog # MAB48181) at 1 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Rabbit IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC003). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (Catalog # CTS013). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to cell membrane and cytoplasm. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.
Applications for Human VSIG1 Antibody
CyTOF-ready
Flow Cytometry
Sample: HEK293 Human Cell Line Transfected with Human VSIG1 and eGFP
Immunohistochemistry
Sample: Immersion fixed paraffin-embedded sections of human testis
Western Blot
Sample: Human stomach tissue and Human testis tissue
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: VSIG1
Long Name
Alternate Names
Gene Symbol
UniProt
Additional VSIG1 Products
Product Documents for Human VSIG1 Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human VSIG1 Antibody
For research use only
