Key Product Details

Species Reactivity

Validated:

Mouse

Cited:

Human, Mouse, Rat, Transgenic Mouse

Applications

Validated:

Immunohistochemistry, Western Blot, Simple Western

Cited:

Immunohistochemistry, Immunohistochemistry-Paraffin, Immunohistochemistry-Frozen, Western Blot, Flow Cytometry, Immunocytochemistry, Immunodepletion

Label

Unconjugated

Antibody Source

Polyclonal Goat IgG
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant mouse DPPIV/CD26
Ser29-His760
Accession # P28843

Specificity

Detects mouse DPPIV/CD26 in direct ELISAs and Western blots. In direct ELISAs, less than  20% cross‑reactivity with recombinant human DPPIV/CD26 is observed.

Clonality

Polyclonal

Host

Goat

Isotype

IgG

Scientific Data Images for Mouse DPPIV/CD26 Antibody

Detection of Mouse and Rat DPPIV/CD26 antibody by Western Blot.

Detection of Mouse and Rat DPPIV/CD26 by Western Blot.

Western blot shows lysates of mouse thymus tissue and rat lung tissue. PVDF membrane was probed with 0.25 µg/mL of Goat Anti-Mouse DPPIV/CD26 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF954) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF019). A specific band was detected for DPPIV/CD26 at approximately 100-110 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

DPPIV/CD26 antibody in Mouse Thymus by Immunohistochemistry (IHC-Fr).

DPPIV/CD26 in Mouse Thymus.

DPPIV/CD26 was detected in immersion fixed frozen sections of mouse thymus using Goat Anti-Mouse DPPIV/CD26 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF954) at 1.7 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Goat HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS008) and counterstained with hematoxylin (blue). Specific staining was localized to lymphocytes. View our protocol for Chromogenic IHC Staining of Frozen Tissue Sections.

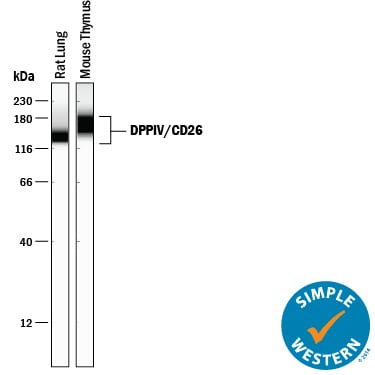

Detection of Mouse and Rat DPPIV/CD26 antibody by Simple WesternTM.

Detection of Mouse and Rat DPPIV/CD26 by Simple WesternTM.

Simple Western lane view shows lysates of rat lung tissue and mouse thymus tissue, loaded at 0.2 mg/mL. A specific band was detected for DPPIV/CD26 at approximately 144-169 kDa (as indicated) using 5 µg/mL of Goat Anti-Mouse DPPIV/CD26 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF954) followed by 1:50 dilution of HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Detection of DPPIV/CD26 by Western Blot

Detection of DPPIV/CD26 by Western Blot

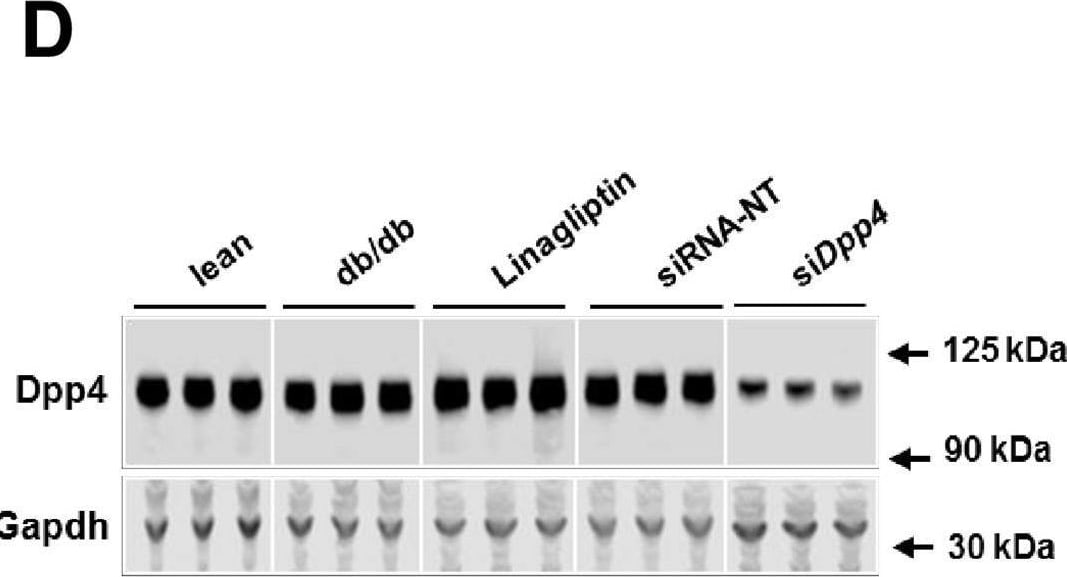

siRNA-mediated knock-down of hepatic dpp4 in db/db mice.(A) Schematic illustration of the study design. (B, C and D) Liver samples were taken after study termination at day 30. (B) dpp4 mRNA expression was analyzed by real-time PCR after indicated treatment. (C) Quantification of dpp4 protein abundance. (D) Representative Western Blot images show dpp4 protein levels after indicated treatment. (E) Circulating dpp4 protein levels as well as (F) circulating dpp4 activity was measured three days after last dosing at day 30. (G) Quantification of active GLP-1 and (H) GIP at day 30. Data are mean values ± SEM, n = 6–8, *p<0.05, **p<0.005 and ***p<0.0001 as indicated (ANOVA, Tukey's multiple comparisons test). FC = fold change. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/31794591), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of DPPIV/CD26 by Western Blot

Detection of DPPIV/CD26 by Western Blot

Linagliptin promotes NO-mediated endothelial-cardiomyocyte communication. (A) Immunoblotting showing absence of DPP-4 in primary cultured mouse cardiomyocytes (mouse duodenum = positive control). (B) Immunoblotting C166 endothelial cell lysates for DPP-4 (1 and 2 are replicates). (C and D) Immunoblotting C166 mouse endothelial cells for phospho-Akt (Ser473) (C) or phospho-eNOS (Ser1177) (D) after incubation with 9 nmol/L linagliptin for 5 min (control, n = 8, linagliptin, n = 6). (E) Immunoblotting adult mouse cardiomyocytes for PLN(Ser16) after exposure to 100 µmol/L S-nitroso-N-acetylpenicillamine (SNAP) for 5 min (vehicle, n = 6; SNAP, n = 7). (F) cGMP concentration in adult mouse cardiomyocytes under control conditions or after incubation with 9 nmol/L linagliptin for 5 min (n = 4/condition). (G) (Left) Co-culture experiment in which adult mouse cardiomyocytes were cultured in the presence of C166 endothelial cells in cell culture inserts before the addition of linagliptin. (Right) cGMP concentration in adult mouse cardiomyocytes co-cultured with C166 endothelial cells under control conditions or after incubation with 9 nmol/L linagliptin for 5 min. Values are mean ± S.D.. * p < 0.05, ** p < 0.01 by the two-tailed Student’s t-test. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/32796688), licensed under a CC-BY license. Not internally tested by R&D Systems.
Detection of DPPIV/CD26 by Immunohistochemistry

Detection of DPPIV/CD26 by Immunohistochemistry

At human Cmax equivalent, linagliptin indirectly increases Ser16 phosphorylation of the Ca2+ handling protein phospholamban in cardiomyocytes. (A) Immunoblotting for serine 16 phosphorylated phospholamban (PLN(Ser16)) in heart homogenates of young, non-diabetic adult mice perfused with Krebs Henseleit buffer (KHB) or KHB supplemented with 9 nmol/L linagliptin and subjected to 20 min no-flow ischemia followed by 40 min reperfusion (n = 6/group). (B) Immunoblotting primary cultured mouse cardiomyocytes for PLN(Ser16) under control conditions or after incubation with 9 nmol/L linagliptin for 5 min (n = 13/condition). (C) Serial cut sections from a C57BL/6 mouse heart immunostained for DPP-4 or CD31 showing predominant DPP-4 expression in CD31+ cells indicative of endothelial expression (n = 4). Scale bar = 50 µm. (D–F) Volcano plots of differentially expressed genes determined by RNA sequencing of adult mouse cardiomyocytes derived from young, non-diabetic, non-high fat diet-fed mice (D; n = 5/condition) or aged, diabetic, high fat diet-fed (DM-HFD) mice (E; n = 3/condition) exposed to linagliptin (9 nmol/L) or vehicle for 24 h. (F) Volcano plot of differentially expressed genes in vehicle-treated cardiomyocytes derived from DM-HFD mice (n = 3) and control mice (n = 5). Values are mean ± S.D.. *p < 0.05 by two-tailed Student’s t-test. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/32796688), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Mouse DPPIV/CD26 Antibody

Application
Recommended Usage

Immunohistochemistry

5-15 µg/mL
Sample: Immersion fixed frozen sections of mouse thymus

Simple Western

5 µg/mL
Sample: Rat lung tissue and mouse thymus tissue

Western Blot

.25 µg/mL
Sample: Mouse thymus tissue and rat lung tissue

Reviewed Applications

Read 2 reviews rated 5 using AF954 in the following applications:

Formulation, Preparation, and Storage

Purification

Antigen Affinity-purified

Reconstitution

Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.


Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: DPPIV/CD26

DPPIV/CD26 (EC 3.4.14.5) is a serine exopeptidase that releases Xaa-Pro dipeptides from the N-terminus of oligo- and polypeptides (1, 2). It is a type II membrane protein consisting of a short cytoplasmic tail, a transmembrane domain, and a long extracellular domain (3‑5). The extracellular domain contains glycosylation sites, a cysteine-rich region and the catalytic active site (Ser, Asp and His charge relay system). The amino acid sequence of the mouse DPPIV/CD26 extracellular domain is 84% and 91% identical to the human and rat counterparts, respectively. In the native state, DPPIV/CD26 is present as a noncovalently linked homodimer on the cell surface of a variety of cell types. The soluble form is also detectable in human serum and other body fluids, the levels of which may have clinical significance in patients with cancer, liver and kidney diseases, and depression.

DPPIV/CD26 plays an important role in many biological and pathological processes. It functions as T cell-activating molecule (THAM). It serves as a co‑factor for entry of HIV in CD4+ cells (6). It binds adenosine deaminase, the deficiency of which causes severe combined immunodeficiency disease in humans (7). It cleaves chemokines such as stromal-cell-derived factor 1 alpha and macrophage-derived chemokine (8, 9). It degrades peptide hormones such as glucagon (10). It truncates procalcitonin, a marker for systemic bacterial infections with elevated levels detected in patients with thermal injury, sepsis and severe infection, and in children with bacterial meningitis (11).

References

  1. Misumi, Y. and Y. Ikehara (2004) in Handbook of Proteolytic Enzymes. Barrett, A.J. et al. (eds), p. 1905, Elsevier, London.
  2. Ikehara, Y. et al. (1994) Methods Enzymol. 244:215.
  3. Marguet, D. et al. (1992) J. Biol. Chem. 267:2200.
  4. Bernard, A.M. et al. (1994) Biochemistry 33:15204.
  5. Vivier, I. et al. (1991) J. Immunol. 147:447.
  6. Callebaut, C. et al. (1993) Science 262:2045.
  7. Kameoka, J. et al. (1993) Science 261:466.
  8. Ohtsuki, T. et al. (1998) FEBS Lett. 431:236.
  9. Proost, P. et al. (1999) J. Biol. Chem. 274:3988.
  10. Hinke, S.A. et al. (2000) J. Biol. Chem. 275:3827.
  11. Wrenger, S. et al. (2000) FEBS Lett. 466:155.

Long Name

Dipeptidyl-peptidase IV

Alternate Names

CD26, DPP4

Entrez Gene IDs

1803 (Human); 13482 (Mouse); 397492 (Porcine); 102133935 (Cynomolgus Monkey)

Gene Symbol

DPP4

UniProt

Additional DPPIV/CD26 Products

Product Documents for Mouse DPPIV/CD26 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Mouse DPPIV/CD26 Antibody

For research use only

Citations for Mouse DPPIV/CD26 Antibody

Customer Reviews for Mouse DPPIV/CD26 Antibody (2)

5 out of 5
2 Customer Ratings
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Mouse DPPIV/CD26 Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 2 of 2 reviews Showing All
Filter By:
  • Mouse DPPIV/CD26 Antibody
    Name: Anonymous
    Application: Immunocytochemistry/Immunofluorescence
    Sample Tested: mesenchymal cells
    Species: Human
    Verified Customer | Posted 10/18/2016
    Mouse DPPIV/CD26 Antibody AF954
  • Mouse DPPIV/CD26 Antibody
    Name: Anonymous
    Application: Immunoprecipitation
    Sample Tested: Heparin Plasma
    Species: Mouse
    Verified Customer | Posted 08/11/2016

There are no reviews that match your criteria.

Showing  1 - 2 of 2 reviews Showing All

Protocols

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
