SLC39A4 (Solute carrier family 39 member 4; also Zip-4) is a 75-90 kDa member of the ZIP transporter family of proteins. It is expressed by select cell types, including pancreatic beta -cells plus epithelium of the choroid plexus and intestine. SLC39A4 is part of a zinc-sensitive cell cycling system. When extracellular zinc levels are high, SLC39A4 is generally found internally associated with endosomes, and is unavailable at the cell membrane to transport zinc into the cell. Under low zinc conditions, SLC39A4 generally appears in the plasma membrane to ensure adequate zinc uptake in the face of limited zinc availability. Mouse SLC39A4 is a 660 amino acid (aa) six transmembrane (TM) glycoprotein. It contains a long N-terminal extracellular region (aa 1-337) followed by six TM segments (aa 338-651) and a short C-terminal nine aa extracellular tail (aa 652-660). There is one splice variant that shows a 16 aa substitution for aa 1-63. SLC39A4 undergoes cell-specific proteolytic processing in response to low zinc concentrations. Cleavage occurs in the N-terminal extracellular region to generate a soluble 35 kDa polypeptide and a 37 kDa six TM integral membrane protein. This does not appear to be an inactivating mechanism. Over aa 1-337, mouse SLC39A4 shares 84% and 59% aa sequence identity with rat and human SLC39A4, respectively.
Mouse SLC39A4 Antibody
R&D Systems | Catalog # AF7315
Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Met1-Tyr337
Accession # Q78IQ7
Specificity
Clonality
Host
Isotype
Scientific Data Images for Mouse SLC39A4 Antibody
Detection of Mouse SLC39A4 by Western Blot.
Western blot shows lysates of Hepa 1-6 mouse hepatoma cell line and D3 mouse embryonic stem cell line. PVDF membrane was probed with 1 µg/mL of Goat Anti-Mouse SLC39A4 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7315) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band was detected for SLC39A4 at approximately 80 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

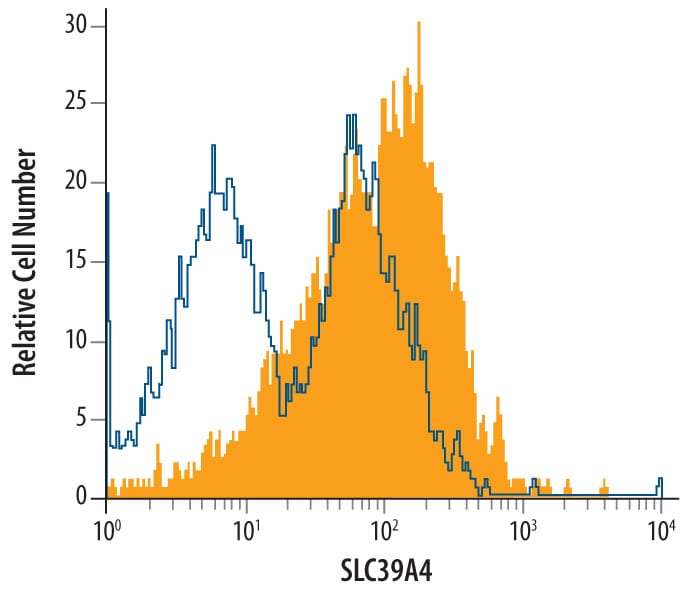

Detection of SLC39A4 in Hepa 1‑6 Mouse Cell Line by Flow Cytometry.
Hepa 1-6 mouse hepatoma cell line was stained with Goat Anti-Mouse SLC39A4 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7315, filled histogram) or control antibody (Catalog # AB-108-C, open histogram), followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0108).
SLC39A4 in Mouse Small Intestine.
SLC39A4 was detected in immersion fixed frozen sections of adult mouse small intestine using Goat Anti-Mouse SLC39A4 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7315) at 10 µg/mL overnight at 4 °C. Tissue was stained using the NorthernLights™ 557-conjugated Anti-Goat IgG Secondary Antibody (red; Catalog # NL001) and counterstained with DAPI (blue). Specific staining was localized to intestinal epithelial cells. View our protocol for Fluorescent IHC Staining of Frozen Tissue Sections.
Applications for Mouse SLC39A4 Antibody
CyTOF-ready
Flow Cytometry
Sample: Hepa 1‑6 mouse hepatoma cell line
Immunohistochemistry
Sample: Immersion fixed frozen sections of adult mouse small intestine
Western Blot
Sample: Hepa 1‑6 mouse hepatoma cell line and D3 mouse embryonic stem cell line
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
