Mouse TNF‑ alpha PE‑conjugated Antibody

Name: Mouse TNF‑ alpha PE‑conjugated Antibody
Brand: R&D Systems
SKU: IC410P
Price: 399 USD
Availability: InStock

R&D Systems | Catalog # IC410P

Submit a review

Citations (2)

Product Documents

View Available Conjugates

100% Guarantee

Product Specifications
Scientific Data
Applications
Spectra Viewer
Flow Cytometry
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas
Related Blogs

Key Product Details

Validated by

Biological Validation

Species Reactivity

Validated:

Mouse

Cited:

Mouse

Applications

Validated:

Intracellular Staining by Flow Cytometry

Cited:

Flow Cytometry

Label

Phycoerythrin (Excitation = 488 nm, Emission = 565-605 nm)

Antibody Source

Monoclonal Rat IgG₁ Clone # MP6-XT22

View all TNF-alpha Primary Antibodies »

Product Specifications

Immunogen

Mouse TNF-alpha

Specificity

Detects mouse TNF-alpha in flow cytometry.

Clonality

Monoclonal

Host

Rat

Isotype

IgG₁

Scientific Data Images for Mouse TNF‑ alpha PE‑conjugated Antibody

Detection of TNF-alpha in Mouse Splenocytes by Flow Cytometry.

Mouse splenocytes (A) treated with PMA (50 ng/mL), Ca2+ Ionomycin (200 ng/mL) and Brefeldin A (5 μg/mL) for 4 hours or (B) untreated, were stained with Rat Anti-Mouse TNF-alpha PE-conjugated Monoclonal Antibody (Catalog # IC410P) and Rat anti-Mouse CD3 APC-conjugated Monoclonal Antibody (FAB4841A). Quadrant markers were set based on isotype control antibody (IC005P). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (FC005). Staining was performed using our protocol for Staining Intracellular Molecules.

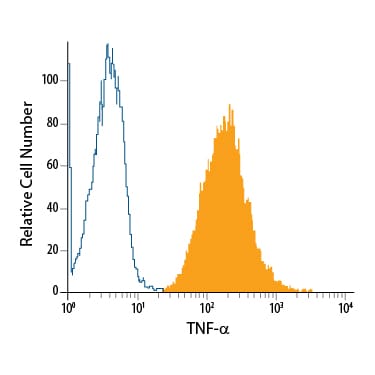

Detection of TNF‑ alpha in EL‑4 Mouse Cell Line by Flow Cytometry.

EL-4 mouse lymphoblast cell line treated with anti-CD3/anti-CD28, PMA, and Calcium Ionomycin was stained with Rat Anti-Mouse TNF-a PE-conjugated Monoclonal Antibody (Catalog # IC410P, filled histogram) or isotype control antibody (IC005P, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (FC005). View our protocol for Staining Intracellular Molecules.

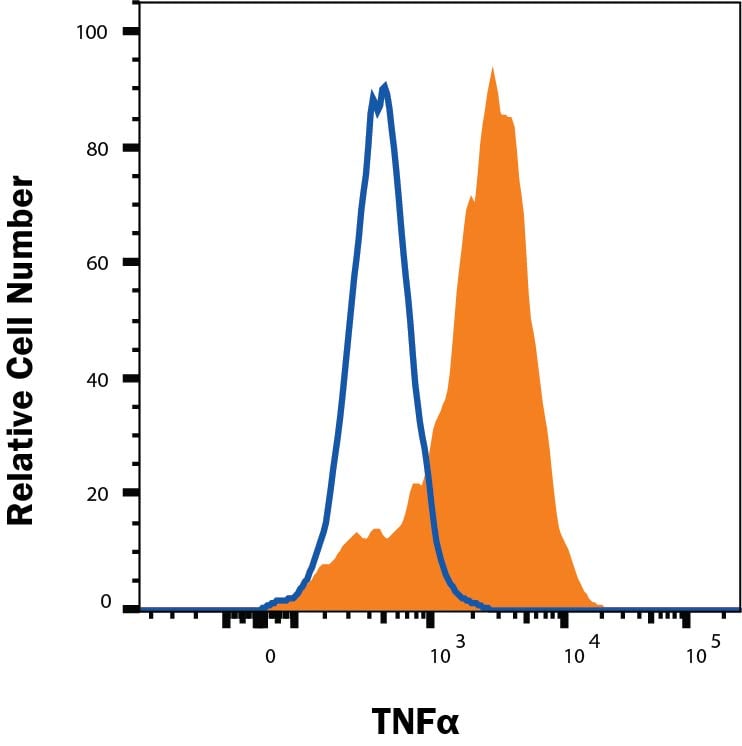

Detection of TNF‑ alpha in Raw264.7 cells by Flow Cytometry.

Raw264.7 cells treated with 1 μg/mL LPS overnight were stained with Rat Anti-Mouse TNF‑ alpha PE‑conjugated Monoclonal Antibody (Catalog # IC410P, filled histogram) or isotype control antibody (Catalog # IC005P, open histogram). To facilitate intracellular staining, cells were fixed with FC012 and permeabilized with FoxP3 Perm. View our protocol for Staining Intracellular Molecules.

Applications for Mouse TNF‑ alpha PE‑conjugated Antibody

Application

Recommended Usage

Intracellular Staining by Flow Cytometry

10 µL/10⁶ cells
Sample: EL‑4 mouse lymphoblast cell line treated with anti-CD3/anti-CD28, PMA, Calcium Ionomycin and mouse splenocytes treated with PMA and Ca2+ ionomycin fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer I (Catalog # FC005), and RAW 264.7 mouse monocyte/macrophage cell line

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
Spillover Popups - Visualize the spectra of individual fluorochromes
Antigen Density Selector - Match fluorochrome brightness with antigen density

Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8° C. Do not use past expiration date. Protect from light.

Background: TNF-alpha

Tumor necrosis factor alpha (TNF-alpha, TNF- alpha, TNFA ), also known as Cachectin and TNFSF2, is the prototypic ligand of the TNF superfamily. It is a pleiotropic molecule that plays a central role in inflammation, immune system development, apoptosis, and lipid metabolism. TNF-alpha is produced by several lymphoid cells as well as by astrocytes, endothelial cells, and smooth muscle cells. Mouse TNF-alpha consists of a 35 amino acid (aa) cytoplasmic domain, a 21 aa transmembrane segment, and a 179 aa extracellular domain (ECD). Within the ECD, mouse TNF-alpha shares 94% aa sequence identity with rat and 70%-77% with bovine, canine, cotton rat, equine, feline, human, porcine, and rhesus TNF-alpha. TNF-alpha is produced by a wide variety of immune, epithelial, endothelial, and tumor cells. TNF-alpha is assembled intracellularly to form a noncovalently linked homotrimer which is expressed on the cell surface. Cell surface TNF-alpha can induce the lysis of neighboring tumor cells and virus infected cells, and it can generate its own downstream cell signaling following ligation by soluble TNFR I. Shedding of membrane bound TNF-alpha by TACE/ADAM17 releases the bioactive cytokine, a 55 kDa molecular weight soluble trimer of the TNF-alpha extracellular domain. TNF-alpha binds the ubiquitous 55-60 kDa TNF RI and the hematopoietic cell-restricted 80 kDa TNF RII, both of which are also expressed as homotrimers present on virtually all cell types. Both type I and type II receptors bind TNF-alpha with comparable affinity, although only TNF RI contains a cytoplasmic death domain which triggers the activation of apoptosis. Soluble forms of both types of receptors are released and can neutralize the biological activity of TNF-alpha.

Long Name

Tumor Necrosis Factor alpha

Alternate Names

Cachetin, DIF, TNF, TNF-A, TNFA, TNFalpha, TNFG1F, TNFSF1A, TNFSF2

Entrez Gene IDs

7124 (Human); 21926 (Mouse); 24835 (Rat); 397086 (Porcine); 280943 (Bovine); 403922 (Canine); 102139631 (Cynomolgus Monkey); 100033834 (Equine); 493755 (Feline); 100009088 (Rabbit)
