Proteome Profiler Human Cell Stress Array Kit

Contains 4 membranes - each spotted in duplicate with 26 different cell stress antibodies
  (3 citations)
Datasheet / CoA / SDS
Product Details
Citations (3)
Supplemental Products
Kit Summary

A membrane-based antibody array for the parallel determination of the relative levels of selected human cell stress-related proteins. Validated for analyte detection in cell and tissue lysates.

Troubleshooting Guide

Key Benefits

  • Detects 26 human cell stress-related proteins simultaneously
  • Requires no specialized equipment

Principle of the Array

The Proteome Profiler Human Cell Stress Array Kit is a membrane-based sandwich immunoassay. Samples are mixed with a cocktail of biotinylated detection antibodies (Step 1) and then incubated with the array membrane which is spotted in duplicate with capture antibodies to specific target proteins (Step 2). Captured proteins are visualized using chemiluminescent detection reagents (Step 3). The signal produced is proportional to the amount of analyte bound.

Why Use an Antibody Array to Detect Cell Stress-Related Proteins?

Determining the expression of multiple cell stress-related proteins in a single sample can be expensive, time consuming and can require specialized equipment. Performing multiple immunoprecipitations and Western blots requires time, labor, and reagents. The use of a multiplex antibody array to detect multiple proteins in a single sample can be cost-effective and also save time and sample.


Kit Contents
  • 4 Array Membranes
  • 4-Well Multi-dish
  • Array Buffers
  • Lysis Buffer
  • Wash Buffer
  • Detection Antibody Cocktail
  • Streptavidin-HRP
  • Chemiluminescent Detection Reagents
  • Transparency Overlay Template
  • Detailed Protocol

For a complete list of the kit contents and necessary materials, please see the Materials Provided/Other Supplies Required sections of the product datasheet.

Stability and Storage

Store the unopened kit at 2 °C to 8 °C. Do not use past kit expiration date.


Simultaneously detect the levels of these cell stress-related proteins in a single sample.
ADAMTS1 HIF-2 alpha Phospho-p38 alpha (T180/Y182)
Bcl-2 Phospho-HSP27 (S78/S82) Phospho-p53 (S46)
Carbonic Anhydrase IX HSP60 PON1
Cited-2 HSP70 PON2
Cytochrome c Phospho-JNK Pan (T183/Y185) Thioredoxin-1
Dkk-4 NFkappaB1 SIRT2
HIF-1 alpha p27/Kip1


Assays for analytes represented in the Human Cell Stress Array Kit

Analyte Quantkine® ELISA Kits DuoSet® ELISA Development Reagents DuoSet® IC ELISA Development Reagents Surveyor IC ELISA Kits Cell-Based ELISA Kits
ADAMTS1   DY2197
Bcl-2     DYC827B
Carbonic Anhydrase IX DCA900 DY2188
COX-2     DYC4198
Cytochrome c DCTC0
Dkk-4   DY1269
FABP1/L-FABP Z-007
HIF-1 alpha     DYC1935
HIF-2 alpha
Phospho-HSP27 (S78/S82)     DYC2314
HSP60     DYC1800
HSP70     DYC1663 DYC1663
Phospho-JNK Pan (T183/Y185)     DYC1387
p21/CIP1     DYC1047
p27/Kip1     DYC2256
Phospho-p38 alpha (T180/Y182)     DYC869B SUV869B
Phospho-p53 (S46)     DYC1489
PON1     DYC5816
PON2     DYC4344
PON3     DYC4345
SOD2     DYC3419


Data Examples
HeLa human cervical epithelial carcinoma cells
View Larger Image

Figure 1: HeLa human cervical epithelial carcinoma cells were either untreated or exposed to 150 J/m2 of UV light followed by a 30 minute recovery period before lysis.

The Human Cell Stress Array
View Larger Image

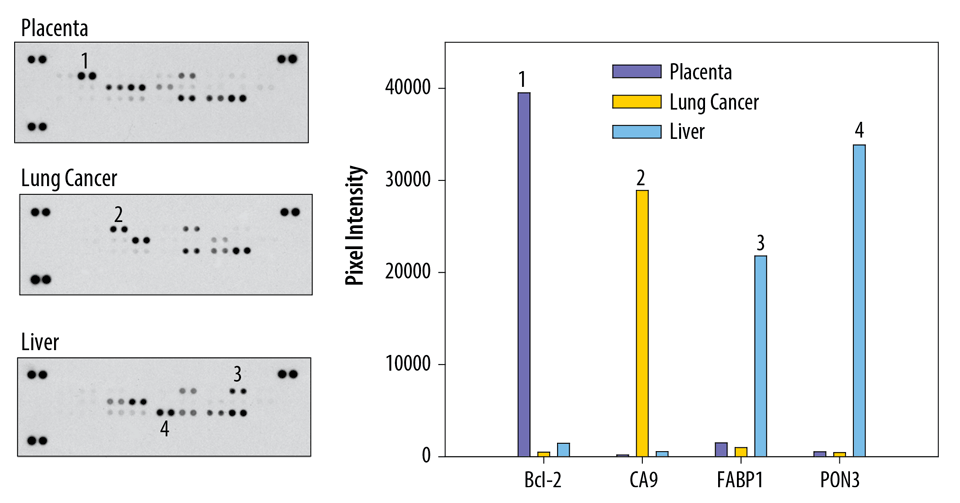

Figure 2: The Human Cell Stress Array detects multiple analytes in tissue lysates. 300 µg of tissue lysate was run on each array. Data shown are from a 5 minute exposure to X-ray film.

Product Datasheets

Certificate of Analysis Lookup

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Certificate of Analysis Lookup

Certificate of Analysis Request Form

To download a Certificate of Analysis, please enter the catalog and lot numbers in the search box below.

Note: Certificate of Analysis not available for kit components.

Preparation and Storage
  • Stability & Storage
    Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: Cell Stress Array Kits
Protein kinases are the largest class of enzymes in the human genome. These enzymes regulate almost all cellular processes by adding phosphate groups to proteins, thereby modifying the activity, localization, and overall function of their targets. Consequently, abnormal activity of kinases underlies many diseases including cancer.
  • Alternate Names:
    Cell Stress Array Kits

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

3 Citations: Showing 1 - 3
Filter your results:

Sample Type
  1. Dexamethasone downregulates expression of carbonic anhydrase IX via HIF-1? and NF-?B-dependent mechanisms
    Int J Oncol, 2016;0(0):.  2016
  2. Profiling of cell stress protein expression in cardiac tissue of cardiosurgical patients undergoing remote ischemic preconditioning: implications for thioredoxin in cardioprotection.
    Authors: Zitta K, Meybohm P, Gruenewald M, Cremer J, Zacharowski K, Scholz J, Steinfath M, Albrecht M
    J Transl Med, 2015;13(0):34.  2015
  3. Changes and regulation of the C5a receptor on neutrophils during septic shock in humans.
    Authors: Unnewehr H, Rittirsch D, Sarma J, Zetoune F, Flierl M, Perl M, Denk S, Weiss M, Schneider M, Monk P, Neff T, Mihlan M, Barth H, Gebhard F, Ward P, Huber-Lang M
    J Immunol, 2013;190(8):4215-25.  2013
