The gamma chain of the high affinity functional human IL-2 receptor complex belongs to the hematopoietin receptor family. IL-2 R gamma is a 369 amino acid residue protein consisting of a 22 residue signal sequence, a 232 residue extracellular domain, a 29 residue transmembrane domain and an 86 residue cytoplasmic domain. Although IL-2 R gamma by itself does not bind IL-2 with any appreciable affinity, it is required for IL-2 receptor signaling. Besides IL-2, the gamma chain has been shown to be a component of the functional receptor complexes for IL-4, IL-7, IL-9 and IL-15. It has been proposed that IL-2 R gamma be designated the common gamma chain ( gamma c). The site of molecular defects in X-linked SCID (severe combined immunodeficiency) has now been mapped to the IL-2 R gamma gene. Our Avi-tag Biotinylated IL-2 R gamma features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.
Recombinant Human Common gamma Chain Avi-tag His Protein, CF
R&D Systems | Catalog # AVI384
His-tag
Loading...
Key Product Details
- R&D Systems CHO-derived Recombinant Human Common gamma Chain Avi-tag His Protein (AVI384)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
CHO
Accession Number
Structure / Form
Biotinylated via Avi-tag
Conjugate
Biotin
Applications
Bioactivity
Loading...
Product Specifications
Source
Chinese Hamster Ovary cell line, CHO-derived human Common gamma Chain/IL-2 R gamma protein
Leu23-Asn254 with a C-terminal Avi-tag & 6-His tag
Leu23-Asn254 with a C-terminal Avi-tag & 6-His tag
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Leu23
Predicted Molecular Mass
32 kDa
SDS-PAGE
60-67 kDa, under reducing conditions.
Activity
Measured by its binding ability in a functional ELISA.
Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag binds to Recombinant Human CD25/IL-2R alpha Protein (Catalog # 223-2A), Recombinant Human IL-2R beta Protein (Catalog # 224-2B), and Recombinant Human IL-2 Protein (Catalog # 202-IL) with an ED50 of 0.100-1.00 μg/mL.
Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag binds to Recombinant Human CD25/IL-2R alpha Protein (Catalog # 223-2A), Recombinant Human IL-2R beta Protein (Catalog # 224-2B), and Recombinant Human IL-2 Protein (Catalog # 202-IL) with an ED50 of 0.100-1.00 μg/mL.
Scientific Data Images for Recombinant Human Common gamma Chain Avi-tag His Protein, CF
Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag Protein Binding Activity.
Measured by its binding ability in a functional ELISA. Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag (Catalog # AVI384) binds to Recombinant Human CD25/IL-2R alpha Protein (223-2A), Recombinant Human IL-2R beta Protein (224-2B) and Recombinant Human IL-2 Protein (202-IL) with an ED50 of 0.100-1.00 μg/mL.Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag Protein SDS-PAGE.

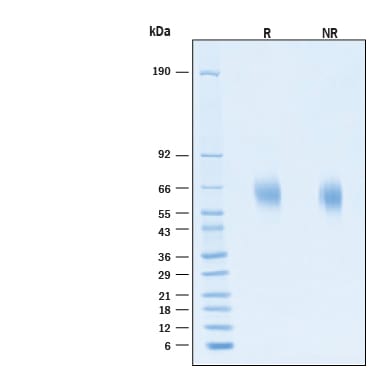

2 μg/lane of Biotinylated Recombinant Human Common gamma Chain Avi-tag His-tag Protein (Catalog # AVI384) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 60‑67 kDa, under reducing conditions.Formulation, Preparation, and Storage
AVI384
| Formulation | Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. |
| Reconstitution | Reconstitute at 500 μg/mL in PBS. |
| Shipping | The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Calculators
Background: Common gamma Chain/IL-2 R gamma
References
- Minami, Y. et al. (1993) Annu. Rev. Immunol. 11:245.
- Noguchi, M. et al. (1993) Science 262:1877.
Long Name
IL-2 Receptor gamma
Alternate Names
CD132, IL-2 R gamma, IL2R gamma, IL2RG
Gene Symbol
IL2RG
UniProt
