The Interleukin 1 receptor family (IL-1 R) comprises at least eleven members including IL-1 RI (IL-1 R1), IL-1 RII (IL-1 R2), IL-1 RAcP (IL-1 R3), ST2 (T1/IL-1 R4), IL‑18 R alpha (IL-1 Rrp/IL-1 R5), IL-1 Rrp2 (IL-1 RL2/IL-1 R6), IL‑18 R beta (AcPL/IL-1 R7), IL1RAPL1 (TIGIRR-2/IL-1 R8), and IL1RAPL2 (TIGIRR-1/IL-1 R9) (1). All family members possess three immunoglobulin (Ig)-like domains in their extracellular region. Most members also have an intracellular TIR (Toll-like receptor/IL-1 receptor signaling) domain that is also conserved in the Toll-like receptor family. Related proteins, SIGIRR (single Ig domain-containing IL-1 R-related molecule) and IL‑18BP, differ from the other members by having only one Ig domain (1). IL-1 receptor accessory protein-like 2 (IL-1 RAPL2) is alternately known as IL-1 R9 and three immunoglobulin domain containing IL-1 receptor-related molecule 1 (TIGIRR-1) and is expressed in the brain (2). Its sequence predicts an 686 amino acid (aa) residue type I transmembrane glycoprotein with a 17 aa signal peptide, a 339 aa extracellular region containing three Ig-like domains, an 18 aa transmembrane domain and a 312 aa cytoplasmic tail (3). By comparison to other IL-1 receptor family proteins, IL1RAPL2 has a C-terminal cytoplasmic extension beyond the TIR domain that is found in IL1RAPL1 and SIGIRR but not other family members (3). Human and mouse IL1RAPL2 share approximately 95% aa sequence identity. Human IL1RAPL2 is most homologous (63%) to IL1RAPL1, a receptor protein that is highly expressed in hippocampus and is involved in X-linked mental retardation (4, 5). Genes for both have been localized to human chromosome Xq22. A ligand for IL1RAPL2 has not been identified (1).
Key Product Details
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Thr17-Glu356
Accession # Q9NP60
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human IL1RAPL2 Antibody
Detection of IL1RAPL2 in HepG2 Human Cell Line by Flow Cytometry.
HepG2 human hepatocellular carcinoma cell line was stained with Goat Anti-Human IL1RAPL2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1007, filled histogram) or control antibody (AB-108-C, open histogram), followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (F0108).

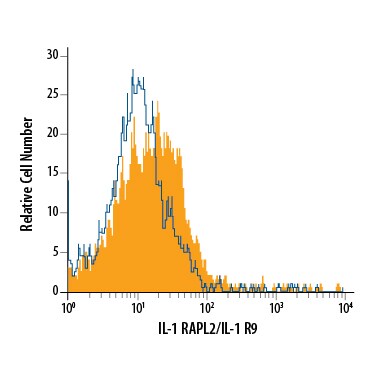

Detection of IL1RAPL2 in Hepa 1‑6 Mouse Cell Line by Flow Cytometry.
Hepa 1-6 mouse hepatoma cell line was stained with Goat Anti-Human IL1RAPL2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1007, filled histogram) or control antibody (AB-108-C, open histogram), followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (F0108).
IL1RAPL2 in Human Skin.
IL1RAPL2 was detected in immersion fixed paraffin-embedded sections of human skin using Goat Anti-Human IL1RAPL2 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1007) at 3 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Goat IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC004). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using VisUCyte Antigen Retrieval Reagent-Basic (Catalog # VCTS021). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to endotheliam cells in vasculature. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.
Applications for Human IL1RAPL2 Antibody
CyTOF-ready
Flow Cytometry
Sample: HepG2 human hepatocellular carcinoma cell line and Hepa 1‑6 mouse hepatoma cell line
Immunohistochemistry
Sample: Immersion fixed paraffin-embedded sections of human liver and skin
Western Blot
Sample: Recombinant Human IL1RAPL2 Fc Chimera (Catalog # 1007-MR)
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: IL1RAPL2
References
- Boraschi, D. and A. Tagliabue (2006) Vitam. Horm. 74:229.
- Andre, R. et al. (2005) J. Neurochem. 95:324.
- Born, T.L. et al. (2000) J. Biol. Chem. 275:29946.
- Jin, H. et al. (2000) Eur. J. Hum. Genet. 8:87.
- Carrie, A. et al. (1999) Nat. Genet. 23:25.
Long Name
Alternate Names
Gene Symbol
UniProt
