TH (Tyrosine 3-hydroxylase; also tyrosine 3-monooxygenase) is a 60-62 kDa member of the biopterin-dependent aromatic amino acid hydroxylase family of molecules. It is expressed by neurons of the dopamine and autonomic nervous system, plus the neuroendocrine cells of the adrenal medulla. TH is considered the rate limiting enzyme for catecholamine synthesis, and serves to catalyze the hydroxylation of L-tyrosine. It maintains stores of catecholamines following secretion, and its activity is regulated by targeted site phosphorylation. Human TH is 528 amino acids (aa) in length. It contains an N-terminal ACT domain (aa 69-190) that binds small molecules and regulates enzyme activity, and a C-terminal enzymatic region (aa 196-493). There are three significant utilized phosphorylation sites. Two at Ser31 and Ser40 increase enzyme activity, while phosphorylation at Ser19 promotes subsequent Ser40 phosphorylation. TH functions as a 240 kDa noncovalent homotetramer. There are four potential splice variants. One shows a deletion of aa 31-34, a second shows a deletion of aa 31-61, while a third contains a Met substitution for aa 1-34. A fourth isoform variant shows a deletion of aa 35-61. Over aa 278-401, human TH shares 94% aa sequence identity with mouse TH, a molecule that most closely resembles the fourth human isoform variant described above.
Human/Mouse/Rat Tyrosine Hydroxylase Antibody
R&D Systems | Catalog # AF7566
Key Product Details
Species Reactivity
Human, Mouse, Rat
Applications
Immunohistochemistry, Western Blot, Immunocytochemistry, Simple Western
Label
Unconjugated
Antibody Source
Polyclonal Sheep IgG
Loading...
Product Specifications
Immunogen
E. coli-derived recombinant human Tyrosine Hydroxylase
Ala278-Tyr401, predicted
Accession # P07101
Ala278-Tyr401, predicted
Accession # P07101
Specificity
Detects human, mouse and rat Tyrosine Hydroxylase in Western blots.
Clonality
Polyclonal
Host
Sheep
Isotype
IgG
Scientific Data Images for Human/Mouse/Rat Tyrosine Hydroxylase Antibody
Detection of Human, Mouse, and Rat Tyrosine Hydroxylase by Western Blot.
Western blot shows lysates of human adrenal gland tissue, mouse adrenal gland tissue, and PC-12 rat adrenal pheochromocytoma cell line. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Human Tyrosine Hydroxylase Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7566) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). Specific bands were detected for Tyrosine Hydroxylase at approximately 56-60 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Tyrosine Hydroxylase in D3 Mouse Embryonic Stem Cells.
Tyrosine Hydroxylase was detected in immersion fixed D3 mouse embryonic stem cells using Sheep Anti-Human Tyrosine Hydroxylase Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7566) at 10 µg/mL for 3 hours at room temperature. Cells were differentiated into dopaminergic neurons using R&D Systems Human/Mouse Dopaminergic Neuron Differentiation Kit (SC001B). Cells were stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; NL010) and counterstained with DAPI (blue). Specific staining was localized to dopaminergic neurons. View our protocol for Fluorescent ICC Staining of Cells on Coverslips.Tyrosine Hydroxylase in Human Brain (Medulla).
Tyrosine Hydroxylase was detected in immersion fixed paraffin-embedded sections of human brain (medulla) using Sheep Anti-Human/Mouse/Rat Tyrosine Hydroxylase Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7566) at 15 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Sheep IgG VisUCyte™ HRP Polymer Antibody (VC006). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (CTS013). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to cytoplasm in neurons. Staining was performed using our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.Detection of Rat Tyrosine Hydroxylase by Simple WesternTM.

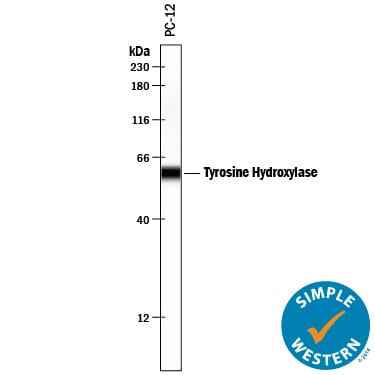

Simple Western lane view shows lysates of PC-12 rat adrenal pheochromocytoma cell line, loaded at 0.2 mg/mL. A specific band was detected for Tyrosine Hydroxylase at approximately 59 kDa (as indicated) using 10 µg/mL of Sheep Anti-Human/Mouse/Rat Tyrosine Hydroxylase Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7566) followed by 1:50 dilution of HRP-conjugated Anti-Sheep IgG Secondary Antibody (HAF016). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.Applications for Human/Mouse/Rat Tyrosine Hydroxylase Antibody
Application
Recommended Usage
Immunocytochemistry
5-15 µg/mL
Sample: Immersion fixed D3 mouse embryonic stem cells differentiated into dopaminergic neurons using R&D Systems Human/Mouse Dopaminergic Neuron Differentiation Kit (Catalog # SC001B)
Sample: Immersion fixed D3 mouse embryonic stem cells differentiated into dopaminergic neurons using R&D Systems Human/Mouse Dopaminergic Neuron Differentiation Kit (Catalog # SC001B)
Immunohistochemistry
5-15 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human brain (medulla)
Sample: Immersion fixed paraffin-embedded sections of human brain (medulla)
Simple Western
10 µg/mL
Sample: PC‑12 rat adrenal pheochromocytoma cell line
Sample: PC‑12 rat adrenal pheochromocytoma cell line
Western Blot
1 µg/mL
Sample: Human adrenal gland tissue, mouse adrenal gland tissue, and PC‑12 rat adrenal pheochromocytoma cell line
Sample: Human adrenal gland tissue, mouse adrenal gland tissue, and PC‑12 rat adrenal pheochromocytoma cell line
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Tyrosine Hydroxylase
Alternate Names
TH, TYH
Gene Symbol
TH
UniProt
Additional Tyrosine Hydroxylase Products
Product Documents for Human/Mouse/Rat Tyrosine Hydroxylase Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human/Mouse/Rat Tyrosine Hydroxylase Antibody
For research use only
Citations for Human/Mouse/Rat Tyrosine Hydroxylase Antibody
Customer Reviews for Human/Mouse/Rat Tyrosine Hydroxylase Antibody
There are currently no reviews for this product. Be the first to review Human/Mouse/Rat Tyrosine Hydroxylase Antibody and earn rewards!
Have you used Human/Mouse/Rat Tyrosine Hydroxylase Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
