Human TLR5 Antibody

Name: Human TLR5 Antibody
Brand: R&D Systems
SKU: MAB6704
Price: 489 USD
Availability: InStock

R&D Systems | Catalog # MAB6704

Submit a review

Citations (4)

Product Documents

View Available Conjugates

100% Guarantee

Product Specifications
Scientific Data
Applications
Flow Cytometry
Preparation & Storage
Calculators
Background
Product Documents
Specific Notices
Research Areas
Related Blogs

Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human

Applications

Validated:

Immunohistochemistry, Flow Cytometry, CyTOF-ready

Cited:

Flow Cytometry

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG₁ Clone # 624915

View all TLR5 Primary Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant human TLR5
Ile21-Phe115
Accession # O60602

Specificity

Detects human TLR5 in direct ELISAs and Western blots. In Western blots, less than 5% cross-reactivity with recombinant human (rh) TLR1, 2, 3, 4, 7, 8, recombinant mouse TLR5, 6, or rhTIRAP is observed.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG₁

Scientific Data Images for Human TLR5 Antibody

TLR5 in Human Intestine.

TLR5 was detected in immersion fixed paraffin-embedded sections of human intestine using Mouse Anti-Human TLR5 Monoclonal Antibody (Catalog # MAB6704) at 15 µg/mL overnight at 4 °C. Tissue was stained using the Anti-Mouse HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS002) and counterstained with hematoxylin (blue). Lower panels show a lack of labeling when primary antibodies are omitted and tissue is stained only with secondary antibody followed by incubation with detection reagents. Specific staining was localized to cell surfaces and cytoplasm. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

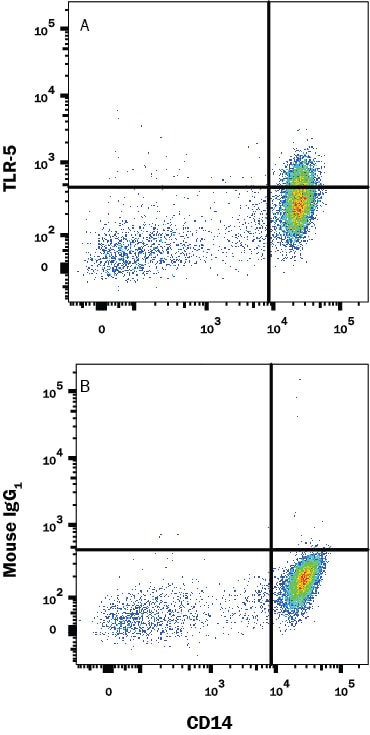

Detection of TLR5 in Human Human Peripheral Blood Monocytes by Flow Cytometry.

Human Human Peripheral Blood Monocytes were stained with (A) Mouse Anti-Human TLR5 Monoclonal Antibody (Catalog # MAB6704) or (B) isotype control antibody (Catalog # MAB002), followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B) and Mouse anti-Human CD14 PE-conjugated Monoclonal Antibody (Catalog # FAB3832P). View our protocol for Staining Membrane-associated Proteins.

Applications for Human TLR5 Antibody

Application

Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/10⁶ cells
Sample: Human peripheral blood monocytes

Immunohistochemistry

8-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human intestine

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
Spillover Popups - Visualize the spectra of individual fluorochromes
Antigen Density Selector - Match fluorochrome brightness with antigen density

Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Sterile PBS to a final concentration of 0.5 mg/mL. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

Volume (to add to vial)

Mass (in vial)

Desired Reconstitution Concentration

Background: TLR5

TLR5 is an ~100 kDa type I transmembrane glycoprotein of the Toll-like receptor family. It is expressed on mucosal epithelia in the gastrointestinal tract, airways, and other areas of potential bacterial contact and recognizes bacterial flagellin. Expression is also reported on monocytes, immature dendritic cells, and CD4⁺ T lymphocytes. The region of human TLR5 used as an immunogen includes the first 2 of 16 leucine-rich repeats and shares 72% amino acid identity with mouse and rat TLR5. This region is outside of the flagellin binding region. Flagellin engagement induces dimerization and intracellular signaling via MyD88.
