Key Product Details

Species Reactivity

Rat

Applications

Western Blot, Flow Cytometry, Simple Western, CyTOF-ready

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Mouse IgG2B Clone # 96009R
Loading...

Product Specifications

Immunogen

Mouse myeloma cell line NS0-derived recombinant rat Neuropilin‑2
Gln23-Asp857 (Val809-Asp825 del)
Accession # O35276

Specificity

Detects rat Neuropilin-2 in direct ELISAs.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Rat Neuropilin‑2 Antibody

Detection of Rat Neuropilin-2 antibody by Western Blot.

Detection of Rat Neuropilin‑2 by Western Blot.

Western blot shows lysates of C6 rat glioma cell line and Rat-2 rat embryonic fibroblast cell line. PVDF membrane was probed with 1 µg/mL of Mouse Anti-Rat Neuropilin-2 Monoclonal Antibody (Catalog # MAB567R) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for Neuropilin-2 at approximately 110 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

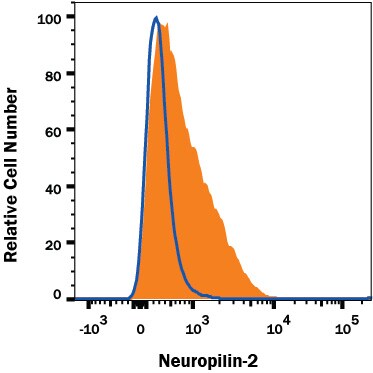

Detection of Neuropilin-2 antibody in C6 Rat Cell Line antibody by Flow Cytometry.

Detection of Neuropilin-2 in C6 Rat Cell Line by Flow Cytometry.

C6 Rat glial tumor cell line was stained with Mouse Anti-Rat Neuropilin-2 Monoclonal Antibody (Catalog # MAB567R, filled histogram) or isotype control antibody (Catalog # MAB0041, open histogram), followed by Allophycocyanin-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B). View our protocol for Staining Membrane-associated Proteins.

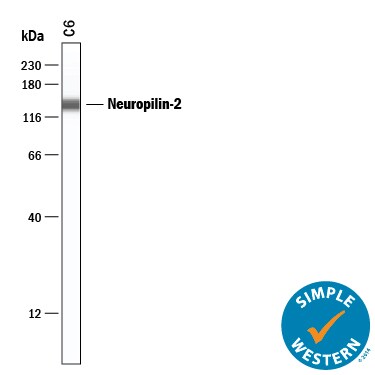

Detection of Rat Neuropilin-2 antibody by Simple WesternTM.

Detection of Rat Neuropilin‑2 by Simple WesternTM.

Simple Western lane view shows lysates of C6 rat glioma cell line, loaded at 0.2 mg/mL. A specific band was detected for Neuropilin‑2 at approximately 138 kDa (as indicated) using 50 µg/mL of Mouse Anti-Rat Neuropilin‑2 Monoclonal Antibody (Catalog # MAB567R). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.

Applications for Rat Neuropilin‑2 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Flow Cytometry

0.25 µg/106 cells
Sample: C6 Rat Cell Line

Simple Western

50 µg/mL
Sample: C6 rat glioma cell line

Western Blot

1 µg/mL
Sample: C6 rat glioma cell line and Rat‑2 rat embryonic fibroblast cell line

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A or G purified from cell culture supernatant

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.


Loading...

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: Neuropilin-2

Neuropilin-1 (Npn-1, previously known as neuropilin) and Npn-2 (previously known as Npn-1-related molecule) are type I transmembrane proteins that bind members of the class III secreted semaphorin subfamily which are implicated in repulsive axon guidance. The extracellular domain of these proteins is composed of two N-terminal CUB (complement-binding) domains (domains a1 and a2), two domains with homology to coagulation factors V and VIII (domains b1 and b2) and a MAM (meprin) domain (domain c). In the absence of ligands, neuropilins can form homo- and hetero-oligomers via homophilic interactions of their MAM domains. At the amino acid sequence level, Npn-1and Npn-2 share 44% identity. Npn-1 and Npn-2 show different binding specificities for different members of the semaphorin family. The expression patterns of Npn-1 and Npn-2 in developing neurons of the central and peripheral nervous systems are largely, though not completely non-overlapping. Npn‑1 and Npn-2 are also expressed by endothelial and tumor cells and have been shown to be isoform-specific receptors for VEGF165. Npn-1 was also reported to bind PlGF-2 and the VEGF-like protein from of virus NZ2.

References

  1. Fujisawa, H. and T. Kitsukawa (1998) Curr. Opin. Neurobiol. 8:587.
  2. Neufeld, G. et al. (1999) FASEB J. 13:9.
  3. Poltorak, Z. et al. (2000) J. Biol. Chem. 275:18040.

Alternate Names

Neuropilin2

Entrez Gene IDs

8828 (Human); 18187 (Mouse); 81527 (Rat)

Gene Symbol

NRP2

UniProt

Additional Neuropilin-2 Products

Product Documents for Rat Neuropilin‑2 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Rat Neuropilin‑2 Antibody

For research use only
