OSM R beta is a 150‑180 kDa member of the IL-6 receptor family. It associates with gp130 to form the type II OSM receptor that is responsive to OSM. The gp130 subunit is shared by other IL-6 family cytokine receptors (1, 2, 3, 4), and OSM R beta associates with gp130-like receptor (GPL) to form a receptor complex responsive to IL-31 (5, 6). The human OSM R beta cDNA encodes a 979 amino acid (aa) precursor that includes a 27 aa signal sequence, a 712 aa extracellular domain (ECD), a 22 aa transmembrane segment, and a 218 aa cytoplasmic domain. The ECD contains one partial and one complete hematopoietin domain, an Ig-like domain, and three fibronectin type-III domains. The cytoplasmic domain contains box1, 2, and 3 motifs (7). Within the ECD, human OSM R beta shares 55%, 58%, 61%, and 72% aa sequence identity with mouse, rat, bovine, and canine OSM R beta, respectively. It also shares 31% aa sequence identity with human LIF R, but less than 20% aa sequence identity with human CNTF R alpha, G-CSF R, IL-6 R, IL-11 R alpha, and TCCR. OSM R beta does not bind cytokines directly, but increases the affinity of gp130 for OSM, and GPL for IL-31 (7, 8). OSM R beta, gp130, and GPL each initiate signaling events following ligand stimulation (9, 10). Jak/STAT and MAPK pathways are activated by OSM R beta -containing receptors (9, 11, 12, 13), including STAT5b and SHC which are not activated by other IL-6 family receptors (10, 13). In mice, the loss of OSM R beta expression blocks erythroid progenitor development in bone marrow, and dramatically reduces the number of circulating platelets and erythrocytes (14). The type II OSM receptor is the only IL-6 family receptor that promotes osteoblast differentiation in calvaria cell cultures (15).
Human OSMR beta Antibody
R&D Systems | Catalog # MAB4389
Key Product Details
Validated by
Species Reactivity
Applications
Label
Antibody Source
Product Specifications
Immunogen
Glu28-Ser739
Accession # Q99650
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human OSMR beta Antibody
Detection of OSM R beta in HeLa Human Cell Line by Flow Cytometry.

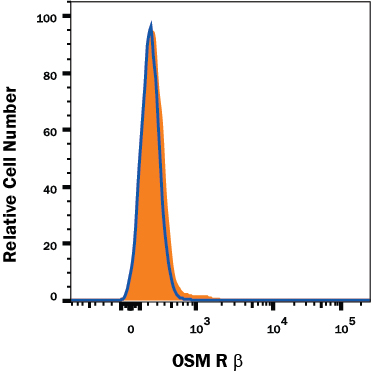

HeLa human cervical epithelial carcinoma cell line was stained with Mouse Anti-Human OSM R beta Monoclonal Antibody (Catalog # MAB4389, filled histogram) or isotype control antibody (Catalog # MAB002, open histogram), followed by Allophycocyanin-conjugated Anti-Mouse IgG F(ab')2Secondary Antibody (Catalog # F0101B).OSM R beta Specificity is Shown by Flow Cytometry in Knockout Cell Line.
OSM R beta knockout HeLa human cervical carcinoma cell line was stained with Mouse Anti-Human OSM R beta Monoclonal Antibody (Catalog # MAB4389, filled histogram) or isotype control antibody (Catalog # MAB002, open histogram) followed by APC-conjugated Goat anti-Mouse IgG Secondary Antibody (Catalog # F0101B). No staining in the OSM R beta knockout HeLa cell line was observed. View our protocol for Staining Membrane-associated Proteins.Western Blot Shows Human OSM R beta Specificity by Using Knockout Cell Line.

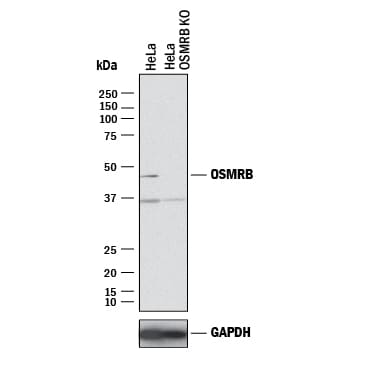

Western blot shows lysates of HeLa human cervical epithelial carcinoma parental cell line and OSM R beta knockout HeLa cell line (KO). PVDF membrane was probed with 2 µg/mL of Mouse Anti-Human OSM R beta Monoclonal Antibody (Catalog # MAB4389) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for OSM R beta at approximately 45 kDa (as indicated) in the parental HeLa cell line, but is not detectable in knockout HeLa cell line. GAPDH (Catalog # MAB5718) is shown as a loading control. This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Applications for Human OSMR beta Antibody
CyTOF-ready
ELISA
This antibody functions as an ELISA detection antibody when paired with Mouse Anti-Human OSM R beta Monoclonal Antibody (Catalog # MAB43891).
This product is intended for assay development on various assay platforms requiring antibody pairs.
Flow Cytometry
Sample: HeLa human cervical epithelial carcinoma cell line
Knockout Validated
Western Blot
Sample: Recombinant Human OSM R beta (Catalog # 4389-OR) under non-reducing conditions only
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: OSMR beta
References
- Chen, S.-H. and E.N. Benveniste (2004) Cytokine Growth Factor Rev. 15:379.
- Heinrich, P.C. et al. (2003) Biochem. J. 374:1.
- Tanaka, M. and A. Miyajima (2003) Rev. Physiol. Biochem. Pharmacol. 149:39.
- Gearing, D.P. et al. (1992) Science 255:1434.
- Dillon, S.R. et al. (2004) Nat. Immunol. 5:752.
- Diveu, C. et al. (2003) J. Biol. Chem. 278:49850.
- Mosley, B. et al. (1996) J. Biol. Chem. 271:32635.
- Diveu, C. et al. (2004) Eur. Cytokine Netw. 15:291.
- Dreuw, A. et al. (2004) J. Biol. Chem. 279:36112.
- Wang, Y. et al. (2000) J. Biol. Chem. 275:25273.
- Hermanns, H.M. et al. (2000) J. Biol. Chem. 275:40742.
- Kuropatwinski, K.K. et al. (1997) J. Biol. Chem. 272:15135.
- Auguste, P. et al. (1997) J. Biol. Chem. 272:15760.
- Tanaka, M. et al. (2003) Blood 102:3154.
- Malaval, L. et al. (2005) J. Cell. Physiol. 204:585.
