Myoglobin is a 17KDa cytoplasmic oxygen-binding protein encoded by the MB gene and expressed in myocytes of the heart and skeletal muscle. Its name derives from its structural and functional similarity to hemoglobin, the oxygen binding protein found in red blood cells. Functions of myoglobin include oxygen storage and transport, as well as scavenging of NO and reactive oxygen species. Myoglobin also serves as a sensitive marker for muscle injury resulting from cardiac infarction. Myoglobin was the first protein to have its three-dimensional structure determined by X-ray crystallography.
Key Product Details
Species Reactivity
Human, Rat
Applications
Immunohistochemistry, Western Blot, Simple Western
Label
Unconjugated
Antibody Source
Monoclonal Mouse IgG2A Clone # 974102
Loading...
Product Specifications
Immunogen
Purified human cardiac Myoglobin antigen from human heart
Accession # P02144
Accession # P02144
Specificity
Detects human Myoglobin in direct ELISAs. Detects human and rat Myoglobin in Western blots. In Western blots, no detection of mouse myglobin was observed.
Clonality
Monoclonal
Host
Mouse
Isotype
IgG2A
Scientific Data Images for Human/Rat Myoglobin Antibody
Detection of Human and Rat Myoglobin by Western Blot.
Western blot shows lysates of human heart tissue, mouse heart tissue (negative control), rat heart tissue, and human liver tissue (negative control). PVDF membrane was probed with 0.05 µg/mL of Mouse Anti-Human/Rat Myoglobin Monoclonal Antibody (Catalog # MAB9720) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for Myoglobin at approximately 18 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Myoglobin in Human Heart.
Myoglobin was detected in immersion fixed paraffin-embedded sections of human heart using Mouse Anti-Human/Rat Myoglobin Monoclonal Antibody (Catalog # MAB9720) at 1.7 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Mouse IgG VisUCyte™ HRP Polymer Antibody (Catalog # VC001). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to sarcoplasm. View our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.

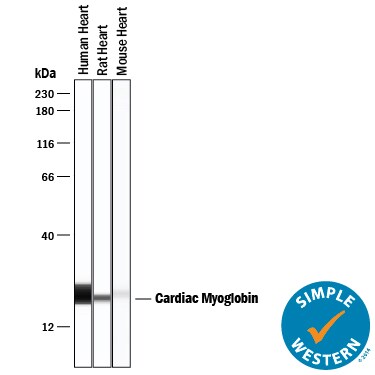

Detection of Human and Rat Myoglobin by Simple WesternTM.
Simple Western lane view shows lysates of human heart tissue, rat heart tissue, and mouse heart tissue, loaded at 0.5 mg/mL. A specific band was detected for Myoglobin at approximately 22 kDa (as indicated) using 10 µg/mL of Mouse Anti-Human/Rat Myoglobin Monoclonal Antibody (Catalog # MAB9720). This experiment was conducted under reducing conditions and using the 12-230 kDa separation system.Applications for Human/Rat Myoglobin Antibody
Application
Recommended Usage
Immunohistochemistry
1-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human heart
Sample: Immersion fixed paraffin-embedded sections of human heart
Simple Western
10 µg/mL
Sample: Human heart tissue and Rat heart tissue
Sample: Human heart tissue and Rat heart tissue
Western Blot
0.05 µg/mL
Sample: Human Heart Tissue and Rat Heart Tissue
Sample: Human Heart Tissue and Rat Heart Tissue
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: Myoglobin
Alternate Names
MB
Gene Symbol
MB
UniProt
Additional Myoglobin Products
Product Documents for Human/Rat Myoglobin Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human/Rat Myoglobin Antibody
For research use only
Customer Reviews for Human/Rat Myoglobin Antibody
There are currently no reviews for this product. Be the first to review Human/Rat Myoglobin Antibody and earn rewards!
Have you used Human/Rat Myoglobin Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
