Key Product Details

Species Reactivity

Human

Applications

Immunohistochemistry, Intracellular Staining by Flow Cytometry, CyTOF-ready

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG2B Clone # 815039
View all ZnT-8 Primary Antibodies »

Product Specifications

Immunogen

E. coli-derived recombinant human ZnT‑8
Lys268-Pro359
Accession # Q8IWU4

Specificity

Detects human ZnT‑8 in ELISAs.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human ZnT‑8 Antibody

ZnT-8 antibody in Human Pancreas by Immunohistochemistry (IHC-P).

ZnT‑8 in Human Pancreas.

ZnT-8 was detected in immersion fixed paraffin-embedded sections of human pancreas using Mouse Anti-Human ZnT-8 Monoclonal Antibody (Catalog # MAB7936) at 15 µg/mL overnight at 4 °C. Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (Catalog # CTS013). Tissue was stained using the Anti-Mouse HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS002) and counter-stained with hematoxylin (blue). Specific staining was localized to cytoplasm of islet cells. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

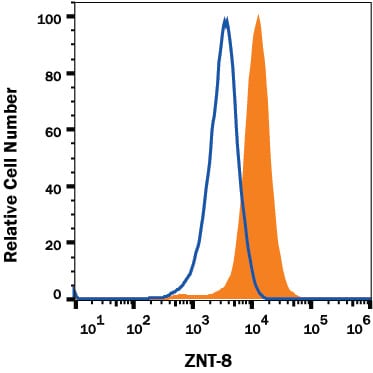

Detection of ZNT-8 antibody in PANC-1 Human Cell Line antibody by Flow Cytometry.

Detection of ZNT-8 in PANC-1 Human Cell Line by Flow Cytometry.

PANC-1 human cell line was stained with Mouse Anti-Human ZNT-8 Monoclonal Antibody (Catalog # MAB7936, filled histogram) or isotype control antibody (Catalog # MAB0041, open histogram), followed by APC-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # F0101B). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3/Transcription Factor Fixation & Perm Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.

Applications for Human ZnT‑8 Antibody

Application
Recommended Usage

CyTOF-ready

Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.

Immunohistochemistry

8-25 µg/mL
Sample: Immersion fixed paraffin-embedded sections of human pancreas

Intracellular Staining by Flow Cytometry

0.25 µg/106 cells
Sample: PANC-1 human cell line fixed and permeabilized with FlowX FoxP3/Transcription Factor Fixation & Perm Buffer Kit (Catalog # FC012)

Reviewed Applications

Read 3 reviews rated 4.3 using MAB7936 in the following applications:

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Reconstitution

Sterile PBS to a final concentration of 0.5 mg/mL. For liquid material, refer to CoA for concentration.

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Shipping

Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: ZnT-8

ZnT-8 (Zinc Transporter 8; also SLC30A8) is a 35-40 kDa member of the SLC (solute carrier)-30A subfamily, CDF family of proteins. It is expressed by pancreatic beta ‑cells and alpha -cells, B cells, and adipocytes and is known to play a role in Zn transport. In particular, ZnT-8 appears to transport zinc from the cytosol into secretory vesicles which, in the case of beta -cells, provides a necessary component for proper insulin processing and granule storage. Furthermore, it appears to facilitate glucose‑mediated insulin release. Human ZnT-8 is a multipass transmembrane (TM) protein that is 369 amino acids (aa) in length. It contains an N-terminal cytoplasmic region (aa 1-79) followed by six TM segments (aa 80-266) and a 103 aa C-terminal cytoplasmic tail. There is a key His-rich motif in the second cytoplasmic loop (aa 197‑205). ZnT-8 forms homodimers and possibly oligomers. There is one alternative start site at Met50. Over aa 268-359, human ZnT-8 shares 79% aa sequence identity with mouse ZnT-8.

Long Name

Zinc Transporter 8

Alternate Names

SLC30A8, ZnT8

Entrez Gene IDs

169026 (Human); 239436 (Mouse); 299903 (Rat)

Gene Symbol

SLC30A8

UniProt

Q8IWU4 (Human)

Additional ZnT-8 Products

Product Documents for Human ZnT‑8 Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human ZnT‑8 Antibody

For research use only

Related Research Areas

Diabetes
Glucose Homeostasis

Customer Reviews for Human ZnT‑8 Antibody (3)

4.3 out of 5
3 Customer Ratings
5 Stars
33%
4 Stars
67%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Human ZnT‑8 Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 3 of 3 reviews Showing All
Filter By:
Clear Filters X
  • Human ZnT-8 Antibody
    Name: Anonymous
    Application: Microarray
    Sample Tested: EDTA Plasma
    Species: Human
    Verified Customer | Posted 12/06/2019
    Antibody was printed on custom arrays and incubated with fluorescently labeled human EDTA plasma
    Human ZnT‑8 Antibody MAB7936
  • Human ZnT-8 Antibody
    Name: Anonymous
    Application: ELISA
    Sample Tested: Serum and Plasma
    Species: Human and Mouse
    Verified Customer | Posted 11/07/2018
  • Human ZnT-8 Antibody
    Name: Anonymous
    Application: Immunocytochemistry/Immunofluorescence
    Sample Tested: THP-1 human acute monocytic leukemia cell line
    Species: Human
    Verified Customer | Posted 08/31/2018
    Human ZnT‑8 Antibody MAB7936

There are no reviews that match your criteria.

Showing  1 - 3 of 3 reviews Showing All

Protocols

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
