The T cell receptor (TCR)/CD3 complex consists of two variable antigen-recognition receptor chains (TCR-alpha/TCR-beta or TCR-gamma/TCR-delta) that are non-covalently linked to at least four different invariant chains: CD3 gamma, CD3 delta, CD3 epsilon, and the CD3 zeta chain that exists as either a homodimer or as a heterodimer with its splice-variant the CD3 eta chain. The CD3 complex functions to transduce intracellular signals during TCR antigen recognition. CD3 is expressed early in thymocyte development, and on a subset of NK cells. CD3 epsilon is one of at least three invariant proteins that associate with the variable antigen recognition chains of the T cell receptor and function in signal transduction.
Mouse CD3 Antibody (17A2) [Biotin]
R&D Systems | Catalog # BAM4841
Key Product Details
Species Reactivity
Validated:
Mouse
Cited:
Mouse
Applications
Validated:
Immunohistochemistry, Flow Cytometry, Immunocytochemistry, Immunoprecipitation
Cited:
Immunohistochemistry
Label
Biotin
Antibody Source
Monoclonal Rat IgG2B Clone # 17A2
Loading...
Product Specifications
Immunogen
T cell hybridoma D1
Specificity
Detects mouse CD3. Recognizes mouse T cell receptor-associated CD3 complex that is expressed on thymocytes and mature T cells.
Clonality
Monoclonal
Host
Rat
Isotype
IgG2B
Scientific Data Images for Mouse CD3 Antibody (17A2) [Biotin]
Detection of CD3 in Mouse Splenocytes by Flow Cytometry.
Mouse splenocytes were stained with (A) Rat Anti-Mouse Biotinylated CD3 Monoclonal Antibody (Catalog # BAM4841) or (B) Rat IgG2B Biotinylated isotype control antibody (Catalog # IC013B) followed by Streptavidin-Phycoerythrin (Catalog # F0040) and Rat Anti-Mouse B220/CD45R APC-conjugated Monoclonal Antibody (Catalog # FAB1217A). View our protocol for Staining Membrane-associated Proteins.
CD3 in Mouse Splenocytes.
CD3 was detected in immersion fixed mouse splenocytes using Rat Anti-Mouse CD3 Biotinylated Monoclonal Antibody (Catalog # BAM4841) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Streptavidin (yellow; Catalog # NL999) and counterstained with DAPI (blue). View our protocol for Fluorescent ICC Staining of Non-adherent Cells.Applications for Mouse CD3 Antibody (17A2) [Biotin]
Application
Recommended Usage
Flow Cytometry
0.25 µg/106 cells
Sample: Mouse splenocytes
Sample: Mouse splenocytes
Immunocytochemistry
8-25 µg/mL
Sample: Immersion fixed mouse splenocytes
Sample: Immersion fixed mouse splenocytes
Immunohistochemistry
Miescher, G.C. et al. (1989) Immunol. Lett. 23:113.
Immunoprecipitation
Miescher, G.C. et al. (1989) Immunol. Lett. 23:113.
Reviewed Applications
Read 1 review rated 5 using BAM4841 in the following applications:
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with BSA as a carrier protein.
Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: CD3
References
- Miescher, G.C. et al. (1989) Immunol. Lett. 23:113.
Alternate Names
CD_antigen: CD3e, CD3 antigen, delta subunit, CD3d antigen, CD3d antigen, delta polypeptide (TiT3 complex), CD3d molecule, delta (CD3-TCR complex), CD3-DELTA, CD3e, CD3e antigen, CD3e antigen, epsilon polypeptide (TiT3 complex), CD3e molecule, epsilon (CD3-TCR complex), CD3-epsilon, CD3G, CD3g antigen, CD3g antigen, gamma polypeptide (TiT3 complex), CD3g molecule, epsilon (CD3-TCR complex), CD3g molecule, gamma (CD3-TCR complex), CD3-GAMMA, FLJ17620, FLJ17664, FLJ18683, FLJ79544, FLJ94613, IMD18, MGC138597, T3DOKT3, delta chain, T3E, T-cell antigen receptor complex, epsilon subunit of T3, T-cell receptor T3 delta chain, T-cell surface antigen T3/Leu-4 epsilon chain, T-cell surface glycoprotein CD3 delta chain, T-cell surface glycoprotein CD3 epsilon chain, TCRE
Gene Symbol
CD3E
Additional CD3 Products
Product Documents for Mouse CD3 Antibody (17A2) [Biotin]
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Mouse CD3 Antibody (17A2) [Biotin]
For research use only
Related Research Areas
Citations for Mouse CD3 Antibody (17A2) [Biotin]
Powered by Bioz
Customer Reviews for Mouse CD3 Antibody (17A2) [Biotin] (1)
5 out of 5
1 Customer Rating
Have you used Mouse CD3 Antibody (17A2) [Biotin]?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
Customer Images
![Mouse CD3 Antibody (17A2) [Biotin] BAM4841](https://resources.rndsystems.com/images/reviews/review_bam4841_75036.jpg)
Showing
1
-
1 of
1 review
Showing All
Filter By:
-

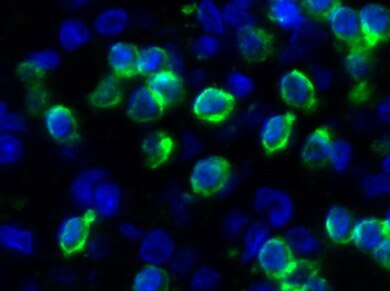

Application: Immunocytochemistry/ImmunofluorescenceSample Tested: SplenocytesSpecies: MouseVerified Customer | Posted 09/16/2022
