Mouse PD-L1/B7-H1 Antibody

(10 citations)
(3 Reviews)

  • Species Reactivity
    Mouse
  • Specificity
    Detects mouse PD-L1/B7-H1 in direct ELISAs and Western blots. In direct ELISAs, approximately 20% cross-reactivity with recombinant human PD-L1/B7-H1 is observed.
  • Source
    Polyclonal Goat IgG
  • Purification
    Antigen Affinity-purified
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant mouse PD-L1/B7-H1
    Phe19-Thr238
    Accession # Q9EP73
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Label
    Unconjugated
Applications
  •
    Recommended
    Concentration
    Sample
  • Western Blot
    0.5 µg/mL
    See below
  • Flow Cytometry
    0.25 µg/106 cells
    See below
  • Immunohistochemistry
    5-15 µg/mL
    Perfusion fixed frozen sections of mouse small intestine (Peyer's patch) and thymus
  • CyTOF-ready
    Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples
Detection of Mouse PD-L1/B7-H1 by Western Blot. Western blot shows lysates of RAW 264.7 mouse monocyte/macrophage cell line untreated (-) or treated (+) with
10 μg/mL LPS for 4 hours. PVDF membrane was probed with 0.5 µg/mL of Goat Anti-MousePD-L1/B7-H1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1019) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF017). A specific band was detected for PD-L1/B7-H1 at approximately 50-55 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

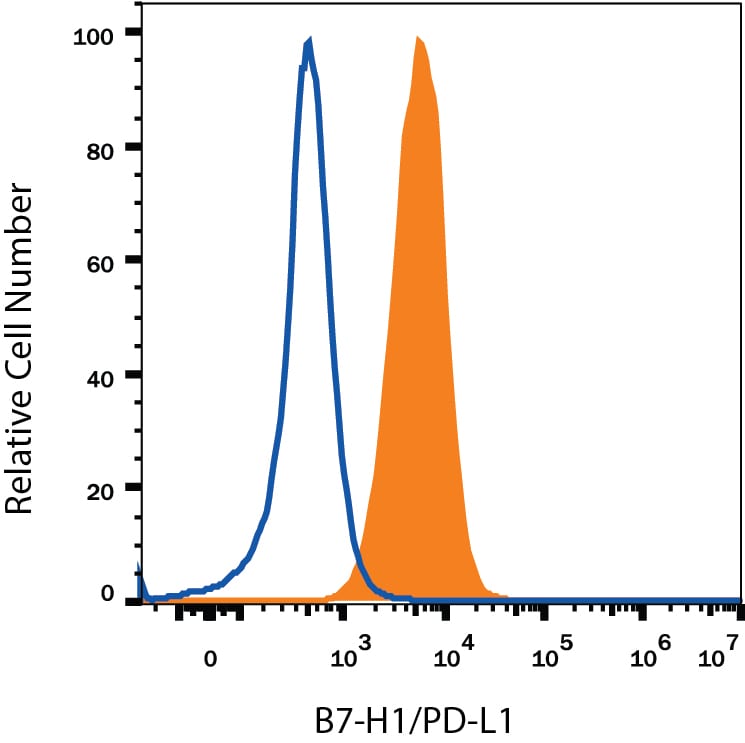

Detection of PD-L1/B7-H1 in RAW 264.7 Mouse Cell Line by Flow Cytometry. RAW 264.7 mouse monocyte/macrophage cell line either treated with LPS overnight (filled histogram) or untreated (open histogram) was stained with Goat Anti-Mouse PD-L1/B7-H1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1019), followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0108). View our protocol for Staining Membrane-associated Proteins.

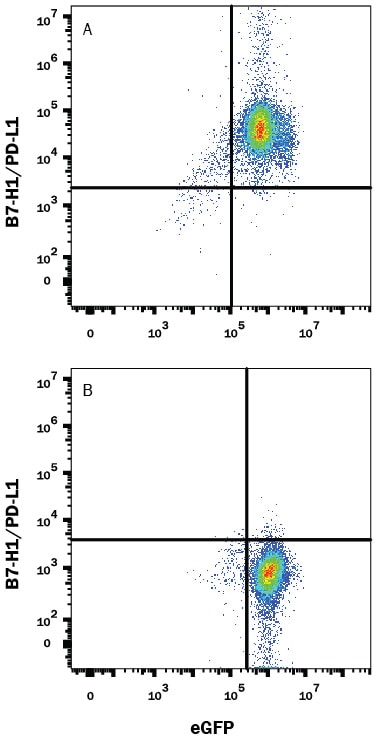

Detection ofPD-L1/B7-H1 in HEK293 Human Cell Line Transfected with Mouse PD-L1/B7-H1 and eGFP by Flow Cytometry. HEK293 human embryonic kidney cell line transfected with either (A) mouse PD-L1/B7-H1 or (B) irrelevant transfectants and eGFP was stained with Goat Anti-Mouse PD-L1/B7-H1 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1019) followed by Allophycocyanin-conjugated Anti-Goat IgG Secondary Antibody (Catalog # F0108). Quadrant markers were set based on control antibody staining (Catalog # AB-108-C). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Reconstitution
    Reconstitute at 0.2 mg/mL in sterile PBS.
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: PD-L1/B7-H1

Mouse B7 homolog 1(B7-H1), also called programmed death ligand 1 (PD-L1) and programmed cell death 1 ligand 1 (PDCD1L1), is a member of the B7 family of proteins that provide signals for regulating T-cell activation and tolerance (1‑4). Other family members include B7-1, B7-2, B7-H2, B7-H3 and PD-L2. B7 proteins are immunoglobulin (Ig) superfamily members with extracellular Ig-V-like and Ig-C-like domains and a short cytoplasmic region. Among the family members, they share from 20‑40% amino acid (aa) sequence identity. The cloned mouse B7-H1/PD-L1 cDNA encodes a 290 aa type I membrane precursor protein with a putative 18 aa signal peptide, a 220 aa extracellular region containing one V-like and one C-like Ig domain, a 22 aa transmembrane region, and a 30 aa cytoplasmic domain. Mouse and human B7-H1/PD-L1 share approximately 70% aa sequence identity. B7-H1/PD-L1 is one of two ligands for programmed death-1 (PD-1), a member of the CD28 family of immunoreceptors. The other identified ligand is PD-L2. Mouse B7-H1/PD-L1 and PD-L2 share approximately 34% aa sequence identity and have similar functions. B7-H1/PD-L1 is constitutively expressed in various lymphoid and non-lymphoid organs including placenta, heart, pancreas, lung, liver, and endothelium (1‑4). The expression of B7-H1/PD-L1 is detected on B cells, T cells, monocytes, dendritic cells and thymic epithelial cells. IFN-gamma treatment induces B7‑H1/PD‑L1 expression in monocytes, dendritic cells, and endothelial cells. B7-H1/PD-L1 expression is also upregulated in a variety of tumor cell lines. On previously activated T cells, B7-H1/PD-L1 interaction with PD-1 inhibits TCR-mediated proliferation and cytokine production, suggesting an inhibitory role in regulating immune responses. In contrast, a costimulatory function for the PD-1 ligands on resting T cells has also been reported (1‑4).

  • References:
    1. Tamura, H. et al. (2001) Blood 97:1809.
    2. Freeman, G. et al. (2000) J. Exp. Med. 192:1027.
    3. Sharpe, A.H. and G. J. Freeman (2002) Nat. Rev. Immunol. 2:116.
    4. Coyle, A. and J. Gutierrez-Ramos (2001) Nat. Immunol. 2:203.
  • Long Name:
    B7 Homolog 1
  • Entrez Gene IDs:
    29126 (Human); 60533 (Mouse); 499342 (Rat); 484186 (Canine); 102145573 (Cynomolgus Monkey)
  • Alternate Names:
    B7-H; B7H1; B7-H1; B7H1PDCD1L1; CD274 antigenMGC142294; CD274 molecule; CD274; PDCD1L1; PDCD1LG1; PDCD1LG1MGC142296; PDL1; PD-L1; PD-L1B7 homolog 1; PDL1PDCD1 ligand 1; programmed cell death 1 ligand 1; Programmed death ligand 1
Related Research Areas
Citations:

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

10 Citations: Showing 1 - 10
Filter your results:

Species
Applications
Sample Type
  1. Dependence of Glomerulonephritis Induction on Novel Intraglomerular Alternatively Activated Bone Marrow-Derived Macrophages and Mac-1 and PD-L1 in Lupus-Prone NZM2328 Mice
    Authors: SJ Sung, Y Ge, C Dai, H Wang, SM Fu, R Sharma, YS Hahn, J Yu, TH Le, MD Okusa, WK Bolton, JR Lawler
    J. Immunol, 2017;0(0):.
    Species: Mouse
    Sample Type: Whole Cells
    Application: Flow
  2. Tumor localized secretion of soluble PD1 enhances oncolytic virotherapy
    Authors: MY Bartee, KM Dunlap, E Bartee
    Cancer Res, 2017;0(0):.
    Species: Mouse
    Sample Type: Cell Lysates
    Application: WB
  3. PD-1/PD-L1 blockade enhances T cell activity and antitumor efficacy of imatinib in gastrointestinal stromal tumors
    Clin Cancer Res, 2016;0(0):.
    Species: Mouse
    Sample Type: Whole Tissue
    Application: IHC - Paraffin embedded
  4. Cell autonomous or systemic EGFR blockade alters the immune-environment in squamous cell carcinomas
    Int J Cancer, 2016;0(0):.
    Species: Mouse
    Sample Type: Whole Tissue
    Application: IHC - Paraffin embedded
  5. beta-Cell-targeted blockage of PD1 and CTLA4 pathways prevents development of autoimmune diabetes and acute allogeneic islets rejection.
    Authors: El Khatib M, Sakuma T, Tonne J, Mohamed M, Holditch S, Lu B, Kudva Y, Ikeda Y
    Gene Ther, 2015;22(5):430-8.
    Species: Human
    Sample Type: Cell Lysates
    Application: WB
  6. IFN-gamma from lymphocytes induces PD-L1 expression and promotes progression of ovarian cancer.
    Authors: Abiko K, Matsumura N, Hamanishi J, Horikawa N, Murakami R, Yamaguchi K, Yoshioka Y, Baba T, Konishi I, Mandai M
    Br J Cancer, 2015;112(9):1501-9.
  7. Endogenous retinoids in the pathogenesis of alopecia areata.
    Authors: Duncan F, Silva K, Johnson C, King B, Szatkiewicz J, Kamdar S, Ong D, Napoli J, Wang J, King L, Whiting D, McElwee K, Sundberg J, Everts H
    J Invest Dermatol, 2013;133(2):334-43.
    Species: Mouse
    Sample Type: Whole Tissue
    Application: IHC - Not specified
  8. Anti-programmed cell death 1 antibody reduces CD4+PD-1+ T cells and relieves the lupus-like nephritis of NZB/W F1 mice.
    Authors: Kasagi S, Kawano S, Okazaki T, Honjo T, Morinobu A, Hatachi S, Shimatani K, Tanaka Y, Minato N, Kumagai S
    J. Immunol., 2010;184(5):2337-47.
    Species: Mouse
    Sample Type: Whole Tissue
    Application: IHC Frozen
  9. Altered availability of PD-1/PD ligands is associated with the failure to control autoimmunity in NOD mice.
    Authors: Yadav D, Hill N, Yagita H, Azuma M, Sarvetnick N
    Cell. Immunol., 2009;258(2):161-71.
    Species: Mouse
    Sample Type: Whole Tissue
    Application: IHC Paraffin-embedded
  10. Establishment of NOD-Pdcd1-/- mice as an efficient animal model of type I diabetes.
    Authors: Wang J, Yoshida T, Nakaki F, Hiai H, Okazaki T, Honjo T
    Proc. Natl. Acad. Sci. U.S.A., 2005;102(33):11823-8.
    Species: Mouse
    Sample Type: Whole Cells
    Application: ICC
Cell and Tissue Staining Kits
Description Application Cat# Citations Images

Anti-Goat HRP-DAB Cell & Tissue Staining Kit

CTS008 13
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....
Immunohistochemistry Reagents
Description Application Cat# Citations Images

Antigen Retrieval Reagent-Universal

CTS015 10
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Antigen Retrieval Reagent-Basic

CTS013 4
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Mounting Medium

CTS011 4
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Antigen Retrieval Reagent Sampler (50 mL each)

CTS016
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Antigen Retrieval Reagent-Acidic

CTS014
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

NorthernLights Guard Mounting Media

NL996
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

VisUCyte Antigen Retrieval Reagent-Universal

VCTS023
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

VisUCyte Antigen Retrieval Reagent-Basic

VCTS021
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

VisUCyte Antigen Retrieval Reagent-Acidic

VCTS022
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....
Isotype Controls
Description Application Cat# Citations Images

Normal Goat IgG Control

Ctrl AB-108-C 191
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....
Secondary Antibodies
Description Application Cat# Citations Images

Goat IgG HRP-conjugated Antibody

WB, Simple Western HAF109 19
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Goat IgG HRP-conjugated Antibody

WB HAF017 15
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Goat IgG (H+L) PE-conjugated Antibody

Flow F0107 4
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Donkey Anti-Goat IgG NorthernLights™ NL557-conjugated Antibody

Flow, IHC, ICC NL001 8
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Donkey Anti-Goat IgG NorthernLights™ NL493-conjugated Antibody

Flow, IHC, ICC NL003 5
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Goat IgG (H+L) APC-conjugated Antibody

Flow F0108 6
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Goat IgG Horseradish Peroxidase-conjugated Antibody

WB HAF019 6
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Donkey Anti-Goat IgG Antibody

WB AF109 6
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Donkey Anti-Goat IgG Biotinylated Antibody

WB BAF109 3
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Goat IgG VisUCyte HRP Polymer

IHC VC004
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Goat IgG (H+L) Fluorescein-conjugated Antibody

Flow F0109 2
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Donkey Anti-Goat IgG NorthernLights™ NL637-conjugated Antibody

Flow, IHC, ICC NL002
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Rabbit Anti-Goat IgG Biotinylated Antibody

WB BAF017
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Chicken Anti-Goat IgG Biotinylated Antibody

WB BAF019
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Rabbit Anti-Goat IgG (H+L) Affinity Purified PAb, X Absorbed

WB, ELISA R-401-C-ABS
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....

Donkey Anti-Goat IgG (H+L) PerCP-conjugated Antibody

Flow F0124
View Sizes & Prices
Catalog# Size Price Stock Quantity
Loading Information....
Average Rating: 3.7 (Based on 3 reviews)

Have you used Mouse PD-L1/B7-H1 Antibody?

Submit a review and receive a $25US/€18/£15/$25CAN amazon gift card if you include an image - $10US/€7/£6/$10CAN Amazon card for reviews without an image. Limited to verified customers in USA, Canada and Europe.

Read what people are saying who have used Mouse PD-L1/B7-H1 Antibody.

We have 3 reviews tested in 1 species: Mouse.
We have 3 reviews tested in 2 applications: Western Blot, Immunohistochemistry.

Filter by Ratings
Excellent
(1)
Very Good
(1)
BelowAverage
(1)
All Ratings
Filter by Applications
WB
(2)
IHC
(1)
All Applications
Filter by Species
Mouse
(3)
All Species

Images Ratings Applications Species Reviewed By Date Details
Western Blot Mouse PD-L1/B7-H1 Antibody AF1019
Enlarge
BelowAverage
 WB Mouse Anonymous 11/26/2017
Show
Image Details

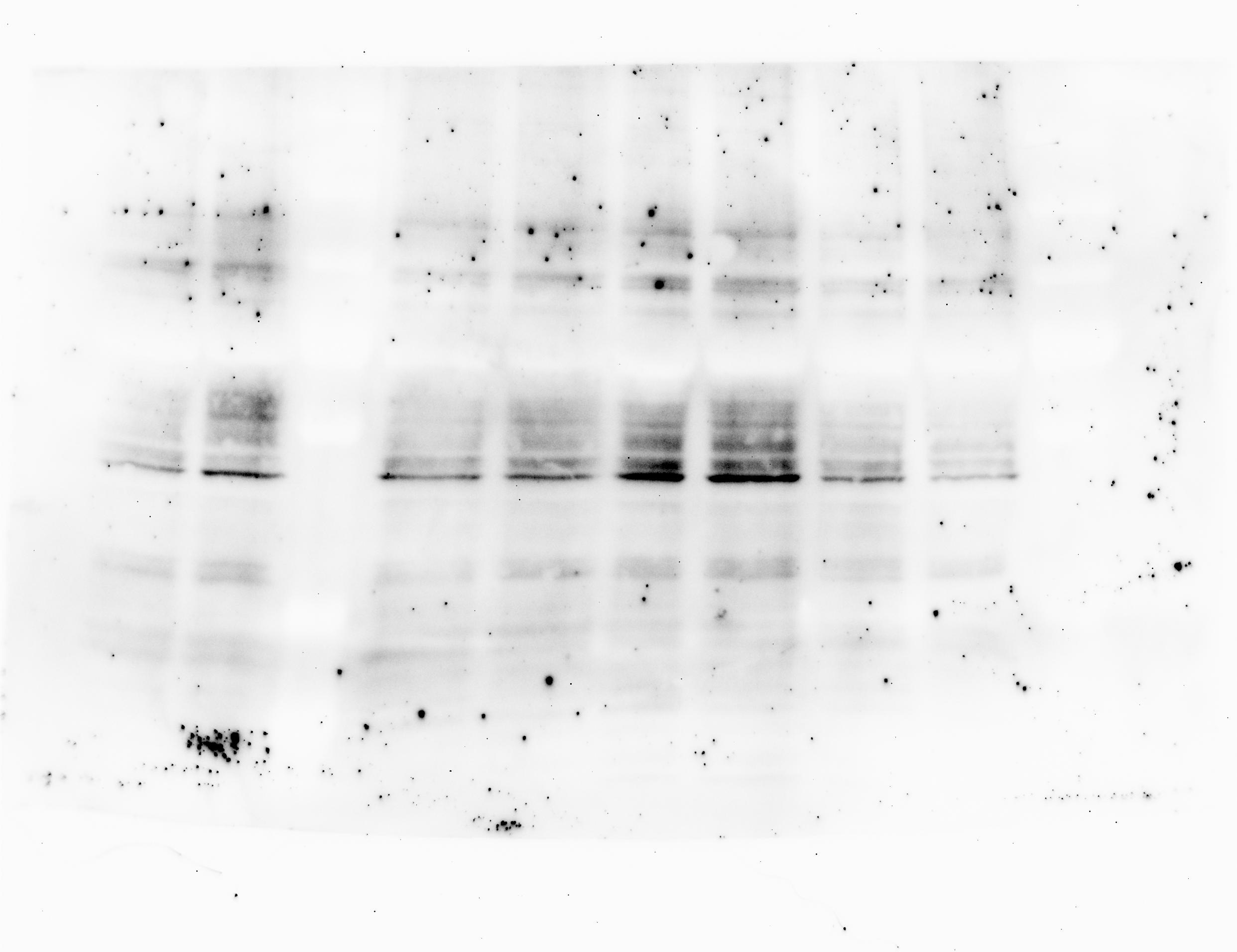

Western Blot Mouse PD-L1/B7-H1 Antibody AF1019
Western Blot: Mouse PD-L1/B7-H1 Antibody [AF1019]

Summary

ApplicationWestern Blot
Sample Testedcultured mouse mammary gland tumor,mouse mammary gland tumor cells
SpeciesMouse

Other Experimental Details

Other Experimental DetailsTechnical Service will be following up with the customer.
Immunohistochemistry Mouse PD-L1/B7-H1 Antibody AF1019
Enlarge
Excellent
 IHC Mouse Anonymous 10/17/2017
Show
Image Details
Immunohistochemistry Mouse PD-L1/B7-H1 Antibody AF1019
Immunohistochemistry: Mouse PD-L1/B7-H1 Antibody [AF1019]

Summary

ApplicationImmunohistochemistry
Sample TestedPancreas tissue
SpeciesMouse
  Very Good
 WB Mouse Anonymous 10/26/2015
Show

Summary

ApplicationWestern Blot
Sample TestedMouse lymphocytes
SpeciesMouse

Other Experimental Details

Other Experimental DetailsBuffer: tbst
Dilution: 1/1000
