SIRP family of immune checkpoint proteins

SIRP family of immune checkpoint blockade proteins

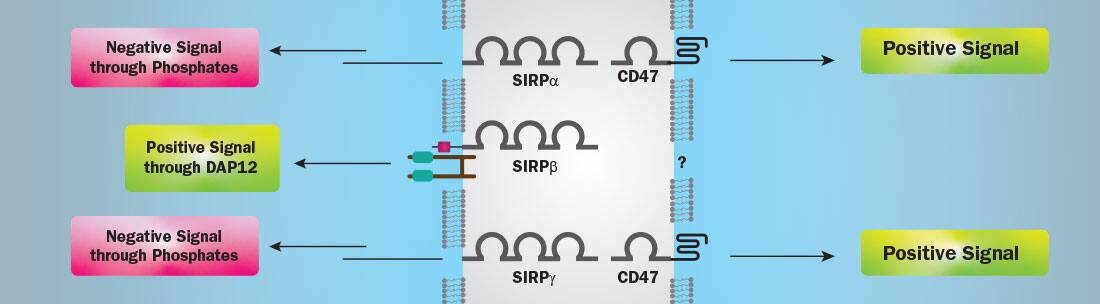

SIRPs are paired receptors, with similar extracellular domains but different transmembrane and cytoplasmic regions which result in opposing signals, either activating or inhibitory. The best studied SIRP family member is SIRP alpha. SIRP alpha expression is restricted to myeloid cells while its binding partner CD47 is expressed on T cells. Reagents blocking the SIRP-alpha/CD47 interaction could activate macrophages or dendritic cells to stimulate phagocytosis and to eliminate tumor cells. Preclinical studies have suggested that SIRP alpha or CD47 blockade may have synergistic antitumor effects in combination with other immune checkpoint inhibitors that target the adaptive immune system. SIRP gamma also binds to CD47, albeit with lower affinity than SIRP alpha. While a SIRP beta ligand remains unknown, SIRP beta has been shown to associate with the adaptor protein DAP12 via a basic amino acid motif in its cytoplasmic region leading to activation phagocytosis by macrophages.

Proteins Species Source Tag Catalog #  Bioactivity
SIRP alpha/CD172a Human CHO Fc 4546-SA Supports adhesion of human red blood cells
Human CHO Fc, Biotin BT4546
Human CHO His 9378-SA Binds CD47 Fc (Catalog #4670-CD)
Cynomolgus Monkey NS0 His 9519-SA
Rhesus Monkey   His Available upon request New
Mouse NS0 Fc 7154-SA Supports adhesion of mouse red blood cells
Rat NS0 Fc 7307-SA
SIRP beta 1 Human   HA Coming Soon
SIRP beta 2 Human HEK293 Fc 9998-SB New! Binds CD300b/LMIR5 Fc (Catalog # 1522-LM)
SIRP gamma Human CHO Fc 4486-SBB  Inhibits anti-CD3-induced T cell proliferation
Human HEK293 His 9999-SB New! Binds CD47 Fc (Catalog #4670-CD)
CD47 Human NS0 Fc 4670-CD Binds SIRP alpha Fc (Catalog #4546-SA)
Human NS0 His 9396-CD
Mouse NS0 Fc 1866-CD Binds mouse SIRP alpha Fc (Catalog #7154-SA)

SIRP alpha bioactivity QC testing

Recombinant SIRP alpha protein
Biotinylated and Unlabeled Human SIRP α Support the Adhesion of Red Blood Cells. Red blood cells from human whole blood were incubated with the indicated concentrations of immobilized Recombinant Human SIRPα/CD172a Fc (Catalog # 4546-SA) or Biotinylated Recombinant Human SIRPα/CD172a Fc (Catalog # BT4546). The similarity in activity highlights that biotinylation does not affect the specificity.
Recombinant SIPR alpha protein
Recombinant Human SIRP alpha Binds the Receptor CD47 in an ELISA Binding Assay. When Recombinant Human SIRP alpha /CD172a His-tag (Catalog # 9378-SA) is coated at 0.5 μg/mL, 100 μL/well, Recombinant Human CD47 Fc Chimera (Catalog # 4670-CD) binds with an ED50 of 0.04-0.24 μg/mL.
Recombinant SIRP alpha protein
Recombinant Mouse SIRP alpha Activity is Suppressed by a Soluble Version of the CD47 Receptor. Mouse red blood cells incubated with Mouse SIRP alpha Fc (Catalog # 7154-SA) promotes cell adhesion (green line). When Recombinant Mouse SIRP alpha Fc is immobilized at 2 µg/mL, cell adhesion can be antagonized by the addition of soluble Recombinant Mouse CD47 Fc (Catalog # 1866-CD; blue line).
