Interleukin 23 (IL-23) is a heterodimeric cytokine composed of two disulfide-linked subunits, a p19 subunit that is unique to IL-23, and a p40 subunit that is shared with IL-12. The p19 subunit has homology to the p35 subunit of IL-12, as well as to other single chain cytokines such as IL-6 and IL-11. The p40 subunit is homologous to the extracellular domains of the hematopoietic cytokine receptors. Human p19 cDNA encodes a 189 amino acid residue (aa) precursor protein with a putative 19 aa signal peptide and 170 aa mature protein. Human and mouse p19 share 70% aa sequence identity. Although p19 is expressed by activated macrophages, dendritic cells, T cells, and endothelial cells, only activated macrophages and dendritic cells express p40 concurrently to produce IL-23. The functional IL-23 receptor complex consists of two receptor subunits, the IL-12 receptor beta 1 subunit (IL-12 R beta 1) and the IL-23-specific receptor subunit (IL-23 R). IL-23 has biological activities that are similar to, but distinct from IL-12. Both IL-12 and IL-23 induce proliferation and IFN-gamma production by human T cells. While IL-12 acts on both naïve and memory human T cells, the effects of IL-23 is restricted to memory T cells. In mouse, IL-23 but not IL-12, has also been shown to induce memory T cells to secret IL-17, a potent proinflammatory cytokine. IL-12 and IL-23 can induce IL-12 production from mouse splenic DC of both the CD8- and CD8+ subtypes, however only IL-23 can act directly on CD8+ DC to mediate immunogenic presentation of poorly immunogenic tumor/self peptide.
Human IL‑23 p19 Antibody
R&D Systems | Catalog # AF1716
Loading...
Key Product Details
Species Reactivity
Validated:
Human
Cited:
Human
Applications
Validated:
Western Blot, Neutralization
Cited:
Immunohistochemistry-Frozen, Neutralization, ELISA Development
Label
Unconjugated
Antibody Source
Polyclonal Goat IgG
Loading...
Product Specifications
Immunogen
E. coli-derived recombinant human IL‑23 p19
Arg20-Pro189
Accession # AAG37232
Arg20-Pro189
Accession # AAG37232
Specificity
Detects human IL‑23 p19 in direct ELISA and Western blot. In direct ELISA, approximately 50% cross-reactivity with recombinant canineIL-23p19, less then 25% cross-reactivity with recombinant feline IL-23p19, less than 5% cross-reactivity with recombinant mouse IL-23p19, recombinant human IL-12p40, and recombinant rat IL-23p40 is observed.
Clonality
Polyclonal
Host
Goat
Isotype
IgG
Endotoxin Level
<0.10 EU per 1 μg of the antibody by the LAL method.
Scientific Data Images for Human IL‑23 p19 Antibody
IL‑17 Secretion Induced by IL‑23 and Neutralization by Human IL‑23 Antibody.
In the presence of Recombinant Mouse IL-2 (10 ng/mL, Catalog # 402-ML), Recombinant Human IL-23 (Catalog # 1290-IL) stim-ulates IL-17 secretion in mouse splenocytes in a dose-dependent manner (orange line), as measured by the Mouse IL-17 Quantikine ELISA Kit (Catalog # M1700). Under these conditions, IL-17 secretion elicited by Recombinant Human IL-23 (0.75 ng/mL) is neutralized (green line) by increasing concentrations of Goat Anti-Human IL-23 p19 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1716). The ND50 is typically 0.2-0.8 µg/mL.Detection of human IL‑23 p19 by Western Blot.

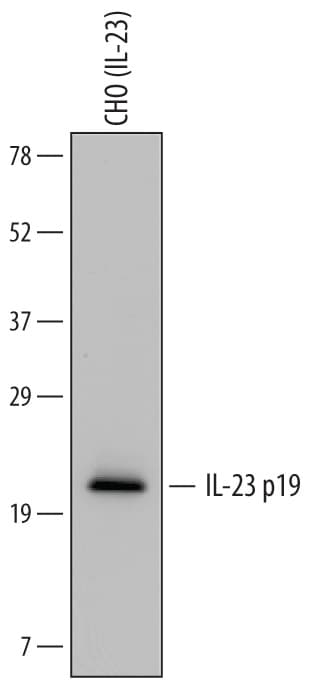

Western blot shows lysates of a CHO cell line transfected with human IL-23. A PVDF membrane was probed with 1 µg/mL of Goat Anti-Human IL-23 p19 Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1716) followed by HRP-conjugated Anti-Goat IgG Secondary Antibody (Catalog # HAF109). A specific band was detected for IL-23 p19 at approximately 21 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.Applications for Human IL‑23 p19 Antibody
Application
Recommended Usage
Western Blot
1 µg/mL
Sample: CHO Chinese hamster ovary cell line transfected with human IL-23
Sample: CHO Chinese hamster ovary cell line transfected with human IL-23
Neutralization
Measured by its ability to neutralize IL‑23-induced IL‑17 secretion in mouse splenocytes. Aggarwal, S. et al. (2003) J. Biol. Chem. 278:1910. The Neutralization Dose (ND50) is typically 0.2-0.8 µg/mL in the presence of 0.75 ng/mL Recombinant Human IL‑23 and 10 ng/mL Recombinant Mouse IL‑2.
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: IL-23
Long Name
Interleukin 23
Alternate Names
IL-23 p19/IL-12 p40, IL-23p19/IL-12p40, IL23, SGRF
Gene Symbol
IL23A
UniProt
Additional IL-23 Products
Product Documents for Human IL‑23 p19 Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human IL‑23 p19 Antibody
For research use only
