HIV-1 Gag p24 Antibody

Name: HIV-1 Gag p24 Antibody
Brand: R&D Systems
SKU: MAB73601-SP
Rating: 5 (1 reviews)

Catalog #: MAB73601 1 Review Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
MAB73601-100
MAB73601-SP

Request a Quote Bulk Orders

Detection of HIV‑1 Gag p24 by Western Blot.

2 Images

Product Details

FAQs

Supplemental Products

Reviews (1)

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

HIV-1 Gag p24 Antibody Summary

Species Reactivity

Viral

Specificity

Detects viral HIV-1 Gag p24 in direct ELISAs.

Source

Monoclonal Mouse IgG_2A Clone # 749138

Purification

Protein A or G purified from hybridoma culture supernatant

Immunogen

E. coli-derived recombinant viral HIV-1 Gag p24
Pro149-Gly354
Accession # Q77YG1_9HIV1

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Label

Unconjugated

Applications

Recommended Concentration

Sample

Western Blot

0.1 µg/mL

See below

ELISA

This antibody functions as an ELISA capture antibody when paired with Mouse Anti-Viral HIV‑1 Gag p24 Monoclonal Antibody (Catalog # MAB73602).

This product is intended for assay development on various assay platforms requiring antibody pairs. We recommend the HIV-1 Gag p24 DuoSet ELISA Kit (Catalog # DY7360-05) for convenient development of a sandwich ELISA or the HIV-1 Gag p24 Quantikine ELISA Kit (Catalog # DHP240) for a complete optimized ELISA.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Western Blot

View Larger

Detection of HIV‑1 Gag p24 by Western Blot. Western blot shows lysates of recombinant HIV-1 Gag p24. PVDF membrane was probed with 0.1 µg/mL of Mouse Anti- HIV-1 Gag p24 Monoclonal Antibody (Catalog # MAB73601) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (Catalog # HAF018). A specific band was detected for HIV-1 Gag p24 at approximately 23 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

ELISA

View Larger

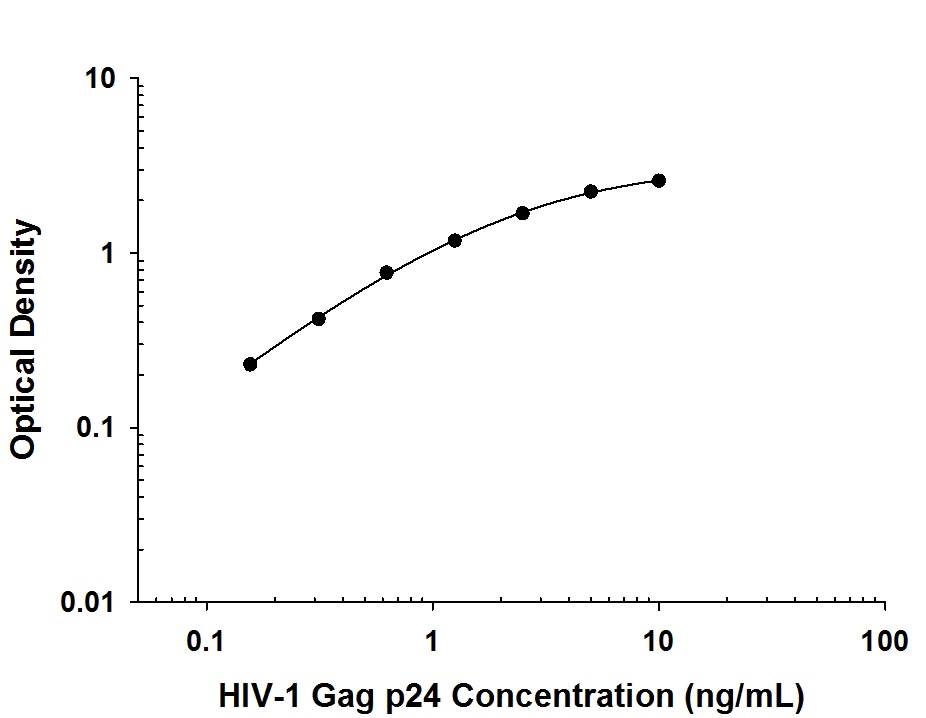

Viral HIV‑1 Gag p24 ELISA Standard Curve. Recombinant Viral HIV-1 Gag p24 protein was serially diluted 2-fold and captured by Mouse Anti-Viral HIV-1 Gag p24 Monoclonal Antibody (Catalog # MAB73601) coated on a Clear Polystyrene Microplate (Catalog # DY990). Mouse Anti-Viral HIV-1 Gag p24 Monoclonal Antibody (Catalog # MAB73602) was biotinylated and incubated with the protein captured on the plate. Detection of the standard curve was achieved by incubating Streptavidin-HRP (Catalog # DY998) followed by Substrate Solution (Catalog # DY999) and stopping the enzymatic reaction with Stop Solution (Catalog # DY994).

Reconstitution Calculator

Preparation and Storage

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS.

Reconstitution Buffer Available

Reconstitution Buffer 1 (PBS)

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: HIV-1 Gag p24

The gag gene of human immunodeficiency virus 1 (HIV-1) encodes a precursor protein known as Pr55Gag. The viral protease PR cleaves this precursor to generate p17, p24, p7, and p6 proteins which are required for virus particle assembly. p24 is a major viral core structural protein. Its measurement is commonly used as an indicator of HIV-1 infection and viral load.

Long Name

Human Immunodeficiency Virus Type 1 GAG/Group-specific Antigen core protein of 24 kDa

Entrez Gene IDs

155030 (Viral)

Alternate Names

CA; Capsid Protein; HIV1 Gag p24; HIV-1 Gag p24; Pr55(Gag)
