SARS-CoV-2 Nucleocapsid Antibody

Catalog # Availability Size / Price Qty
MAB104742-100
MAB104742-SP
SARS-CoV-2 Nucleocapsid Antibody in Data
3 Images
Product Details
FAQs
Supplemental Products
Reviews

SARS-CoV-2 Nucleocapsid Antibody Summary

Species Reactivity
SARS-CoV-2
Specificity
Detects SARS-CoV-2 Nucleocapsid in ELISAs.
Source
Monoclonal Mouse IgG2B Clone # 1035143
Purification
Protein A or G purified from hybridoma culture supernatant
Immunogen
Spodoptera frugiperda, Sf 21-derived SARS-CoV-2 Nucleocapsid
Met1-Ala419
Accession # YP_009724397.2
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
Label
Unconjugated

Applications

Recommended Concentration
Sample
Western Blot
2 µg/mL
Recombinant SARS-CoV-2 Nucleocapsid protein
Simple Western
20 µg/mL
 Recombinant SARS-CoV-2 Nucleocapsid protein
ELISA

This antibody functions as an ELISA detection antibody when paired with Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (Catalog # MAB104741).

This product is intended for assay development on various assay platforms requiring antibody pairs.



Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Examples

Western Blot View Larger

Detection of SARS-CoV-2 Nucleocapsid by Western Blot. Western blot shows recombinant SARS-CoV-2 Nucleocapsid protein. PVDF membrane was probed with 2 µg/mL of Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (Catalog # MAB104742) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (HAF018). A specific band was detected for Nucleocapsid at approximately 52 kDa (as indicated). This experiment was conducted under reducing conditions and using Western Blot Buffer Group 1.

Simple Western View Larger

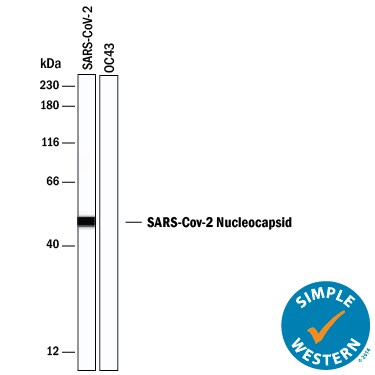

Detection of SARS-CoV-2 Nucleocapsid by Simple WesternTM. Simple Western lane view shows recombinant SARS-CoV-2 Nucleocapsid (positive sample) and OC43 coronavirus lysate (negative control), loaded at 0.2 mg/mL. A specific band was detected for Nucleocapsid at approximately 50 kDa (as indicated) using 20 µg/mL of Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (Catalog # MAB104742). This experiment was conducted under non-reducing conditions and using the 12-230 kDa separation system.

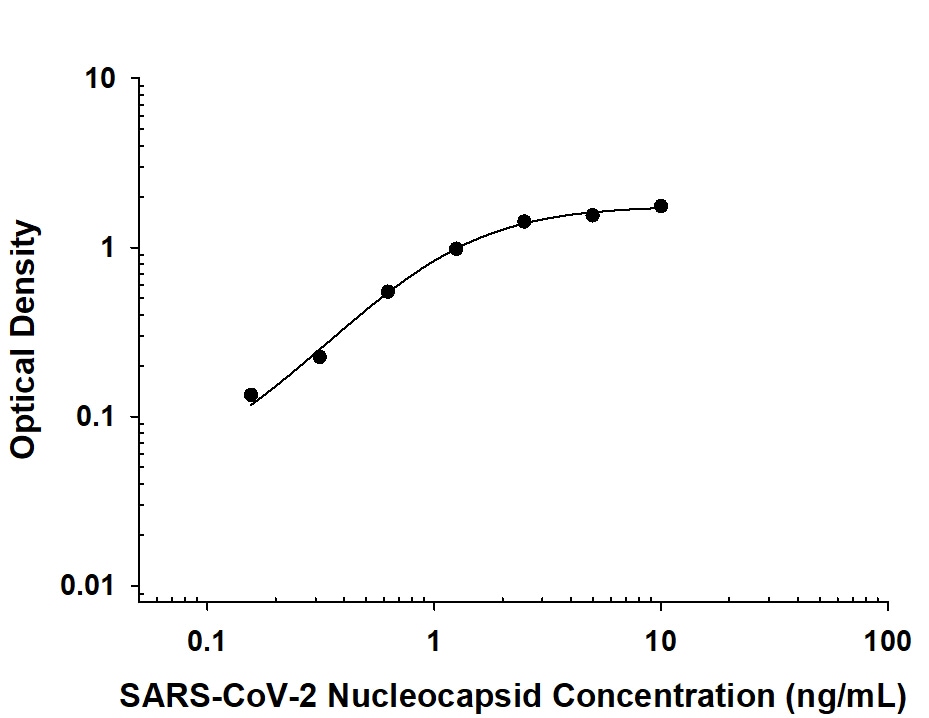

SARS-CoV-2 Nucleocapsid ELISA Standard Curve. Recombinant SARS-CoV-2 Nucleocapsid protein was serially diluted 2-fold and captured by Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (MAB104741) coated on a Clear Polystyrene Microplate (DY990). Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (Catalog # MAB104742) was biotinylated and incubated with the protein captured on the plate. Detection of the standard curve was achieved by incubating Streptavidin-HRP (DY998) followed by Substrate Solution (DY999) and stopping the enzymatic reaction with Stop Solution (DY994).

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS.
Reconstitution Buffer Available
Reconstitution Buffer 1 (PBS)
Catalog #
Availability
Size / Price
Qty
RB01
Shipping
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Nucleocapsid

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M), and Nucleocapsid protein (N) (1).  While the S, E and M proteins build up the viral envelop, the N protein is involved transcription, replication and packaging of the viral RNA genome into a helical ribonucleocapsid (RNP) (2, 3).  The SARS-CoV-2 N protein is a ~45 kDa protein composed of two independent structural domains connected by a linker region. The N-terminal region contains an RNA binding domain, the linker region interacts with the M protein and the C-terminal region contains a self-association domain (2,3). The SARS-CoV2 N protein shares 91% and 47% amino acid sequence identity with SARS-CoV-1 and MERS N protein, respectively.  The SARS-CoV-2 N protein displays VSR (viral suppressor of RNA interference) activity in mammalian cells (4). In addition, the N protein is an abundant protein during coronavirus infection and displays high immunogenic activity (5, 6), so it has been used to develop serological diagnostic kit for Covid-19 IgM and IgG antibody tests (7).

References
  1. Wu, F. et al. (2020) Nature 579:265.
  2. Chang, C. K. et al. (2006) J. Biomed. Sci. 13:59.
  3. Hurst, K. R. et al. (2009) J. Virol. 83:7221.
  4. Mu, J. et al. (2020) Sci. China Life Sci. doi: 10.1007/s11427-020-1692-1.
  5. Che, X. Y. et al. (2004) J. Clin. Microbiol. 42:2629.
  6. Guan, M. et al. (2004) Clin. Diagn. Lab. Immunol. 11:287.
  7. Liu, W. et al. (2020) J. Clin. Microbiol. doi: 10.1128/JCM.00461-20.
Long Name
Nucleocapsid Protein
Entrez Gene IDs
918763 (HCoV-229E); 3200423 (HCoV-HKU1); 2943504 (HCoV-NL63); 39105221 (HCoV-OC43); 1489678 (SARS-CoV); 43740575 (SARS-CoV-2)
Alternate Names
N Protein; Nucleocapsid
