SARS-CoV-2 Nucleocapsid Antibody

MAB104741 Datasheet / COA / SDS

Catalog #	Availability	Size / Price	Qty
MAB104741-100
MAB104741-SP

Request a Quote Bulk Orders

Detection of SARS-CoV-2 Nucleocapsid by Western Blot.

3 Images

Product Details

Supplemental Products

Reviews

Summary Data Examples Preparation and Storage Reconstitution Calculator Background Product Datasheets Related Research Areas

SARS-CoV-2 Nucleocapsid Antibody Summary

Species Reactivity

SARS-CoV-2

Specificity

Detects SARS-CoV-2 Nucleocapsid in ELISAs and Western blots. No cross-reactivity with MERS Nucleocapsid is observed in Western blots.

Source

Monoclonal Mouse IgG₁ Clone # 1035145

Purification

Protein A or G purified from hybridoma culture supernatant

Immunogen

Spodoptera frugiperda, Sf 21-derived SARS-CoV-2 Nucleocapsid protein
Met1-Ala419
Accession # YP_009724397.2

Formulation

Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.

Label

Unconjugated

Applications

Recommended Concentration

Sample

Western Blot

2 µg/mL

Recombinant SARS-CoV-2 Nucleocapsid protein

ELISA

This antibody functions as an ELISA capture antibody when paired with Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (Catalog # MAB104742).

This product is intended for assay development on various assay platforms requiring antibody pairs.

Immunohistochemistry

5-25 µg/mL

Immersion fixed paraffin-embedded sections of SARS-CoV-2 infected human lung

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Examples

Western Blot

View Larger

Detection of SARS-CoV-2 Nucleocapsid by Western Blot. Western blot shows recombinant SARS-CoV-2 Nucleocapsid protein. PVDF membrane was probed with 2 µg/mL of Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (Catalog # MAB104741) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (HAF018). A specific band was detected for SARS-CoV-2 Nucleocapsid at approximately 50 kDa (as indicated). This experiment was conducted under reducing conditions and using Western Blot Buffer Group 1.

ELISA

View Larger

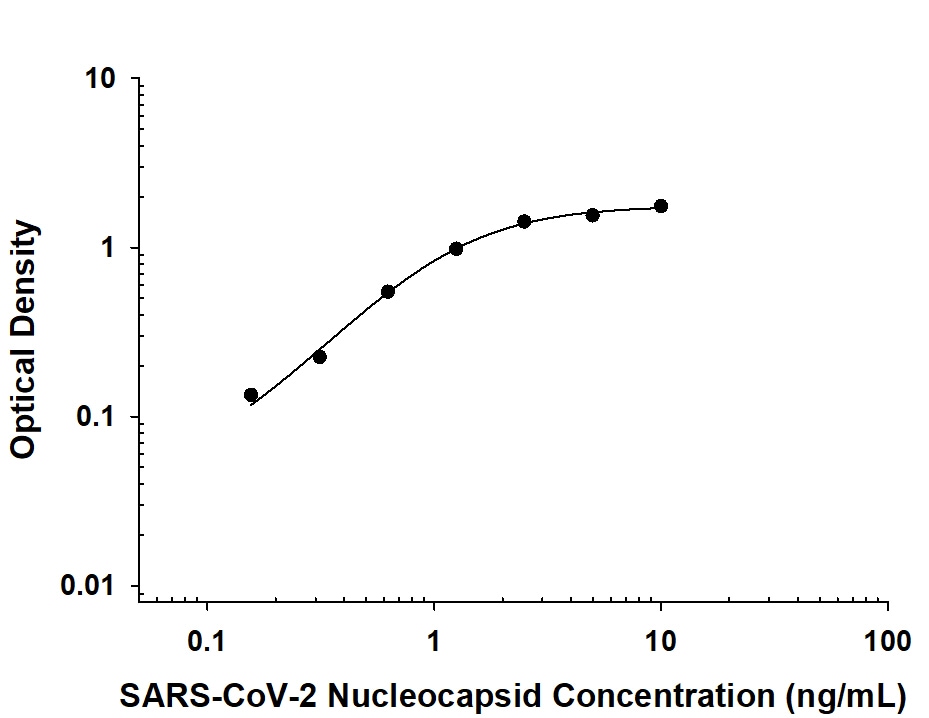

SARS-CoV-2 Nucleocapsid ELISA Standard Curve. Recombinant SARS-CoV-2 Nucleocapsid protein was serially diluted 2-fold and captured by Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (Catalog # MAB104741) coated on a Clear Polystyrene Microplate (DY990). Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (MAB104742) was biotinylated and incubated with the protein captured on the plate. Detection of the standard curve was achieved by incubating Streptavidin-HRP (DY998) followed by Substrate Solution (DY999) and stopping the enzymatic reaction with Stop Solution (DY994).

Immunohistochemistry

View Larger

SARS-Cov-2 Nucleocapsid in SARS-CoV-2 Infected Human Lung. SARS-CoV-2 Nucleocapsid was detected in immersion fixed paraffin-embedded sections of SARS-CoV-2 infected human lung (left, positive staining) and normal human lung (right, negative control) using Mouse Anti-SARS-CoV-2 Nucleocapsid Monoclonal Antibody (Catalog # MAB104741) at 5 µg/mL for 1 hour at room temperature followed by incubation with the Anti-Mouse IgG VisUCyte™ HRP Polymer Antibody (VC001). Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (CTS013). Tissue was stained using DAB (brown) and counterstained with hematoxylin (blue). Specific staining was localized to SARS-CoV-2 infected cells. Staining was performed using our protocol for IHC Staining with VisUCyte HRP Polymer Detection Reagents.

Reconstitution Calculator

Preparation and Storage

Reconstitution

Reconstitute at 0.5 mg/mL in sterile PBS.

Reconstitution Buffer Available

Reconstitution Buffer 1 (PBS)

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C

Stability & Storage

Use a manual defrost freezer and avoid repeated freeze-thaw cycles.

12 months from date of receipt, -20 to -70 °C as supplied.
1 month, 2 to 8 °C under sterile conditions after reconstitution.
6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: Nucleocapsid

SARS-CoV-2, which causes the global pandemic coronavirus disease 2019 (Covid-19), belongs to a family of viruses known as coronaviruses that are commonly comprised of four structural proteins: Spike protein (S), Envelope protein (E), Membrane protein (M), and Nucleocapsid protein (N) (1). While the S, E and M proteins build up the viral envelop, the N protein is involved transcription, replication and packaging of the viral RNA genome into a helical ribonucleocapsid (RNP) (2, 3). The SARS-CoV-2 N protein is a ~45 kDa protein composed of two independent structural domains connected by a linker region. The N-terminal region contains an RNA binding domain, the linker region interacts with the M protein and the C-terminal region contains a self-association domain (2,3). The SARS-CoV2 N protein shares 91% and 47% amino acid sequence identity with SARS-CoV-1 and MERS N protein, respectively. The SARS-CoV-2 N protein displays VSR (viral suppressor of RNA interference) activity in mammalian cells (4). In addition, the N protein is an abundant protein during coronavirus infection and displays high immunogenic activity (5, 6), so it has been used to develop serological diagnostic kit for Covid-19 IgM and IgG antibody tests (7).
