Human CHMP2B Antibody

Catalog # Availability Size / Price Qty

SAVE +FREE SHIPPING with ACADEMIA23 (See Promo Details)

Detection of Human CHMP2B by Western Blot.
3 Images
Product Details
Citations (2)
Supplemental Products

Human CHMP2B Antibody Summary

Species Reactivity
Detects human CHMP2B in direct ELISAs and Western blots
Monoclonal Mouse IgG2B Clone # 791521
Protein A or G purified from hybridoma culture supernatant
E. coli-derived recombinant human CHMP2B
Accession # Q9UQN3
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.


Recommended Concentration
Western Blot
2 µg/mL
See below
8-25 µg/mL
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Western Blot Detection of Human CHMP2B antibody by Western Blot. View Larger

Detection of Human CHMP2B by Western Blot. Western blot shows lysates of human placenta tissue. PVDF membrane was probed with 2 µg/mL of Mouse Anti-Human CHMP2B Monoclonal Antibody (Catalog # MAB7509) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody (HAF018). A specific band was detected for CHMP2B at approximately 30 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.

Immunohistochemistry CHMP2B antibody in Human Brain by Immunohistochemistry (IHC-P). View Larger

CHMP2B in Human Brain. CHMP2B was detected in immersion fixed paraffin-embedded sections of human brain (medulla) using Mouse Anti-Human CHMP2B Monoclonal Antibody (Catalog # MAB7509) at 3 µg/mL overnight at 4 °C. Before incubation with the primary antibody, tissue was subjected to heat-induced epitope retrieval using Antigen Retrieval Reagent-Basic (CTS013). Tissue was stained using the Anti-Mouse HRP-DAB Cell & Tissue Staining Kit (brown; Catalog # CTS002) and counterstained with hematoxylin (blue). Staining is shown at both high (upper panel) and low (lower panel) magnification, and specific staining was localized to neuronal cytoplasm. View our protocol for Chromogenic IHC Staining of Paraffin-embedded Tissue Sections.

Knockout Validated View Larger

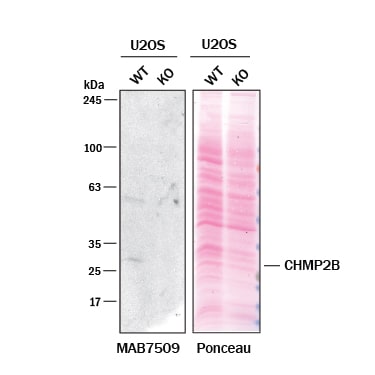

Western Blot Shows Human CHMP2B Specificity Using Knockout Cell Line. Western blot shows lysates of U2OS human osteosarcoma cell line and CHMP2B knockout U2OS cell line (KO). Nitrocellulose membrane was probed with 1.25 µg/mL of Mouse Anti-Human CHMP2B Monoclonal Antibody (Catalog # MAB7509) followed by HRP-conjugated Anti-Mouse IgG Secondary Antibody. A specific band was detected for CHMP2B at approximately 28 kDa (as indicated) in the parental U2OS cell line, but is not detectable in knockout U2OS cell line. The Ponceau stained transfer of the blot is shown. This experiment was conducted under reducing conditions. Image, protocol, and testing courtesy of YCharOS Inc. See for additional details.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

Sterile PBS to a final concentration of 0.5 mg/mL.
Reconstitution Buffer Available
Reconstitution Buffer 1 (PBS)
Catalog #
Size / Price
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CHMP2B

CHMP2B (CHarged Multivescular body Protein 2B; also Chromatin-Modifying Protein 2B and Vps2-2) is an approximately 35 kDa member of the SNF family of proteins. It is a cytosolic molecule that interacts with VPS4 and undergoes polymerization to form tubules that project plasma membrane outward, generating an environment conducive to membrane fission and budding. It also appears to participate in the formation of intraluminal vesicles associated with the lysosomal system. CHMP2B is found in striated muscle (heart and skeletal), and particularly in neurons of the CNS. Human CHMP2B is 213 amino acids (aa) in length. It contains one coiled-coil region (aa 25-55), an MIT (microtubule-interacting and trafficking) domain (aa 201-211) and a utilized phosphorylation site at Ser199. There is one alternative splice form that shows a deletion of aa 2-42. Full-length human CHMP2B shares 99% aa identity with mouse CHMP2B, but only 33% aa identity with human CHMP2A.

Long Name
Charged Multivesicular Body Protein 2B
Entrez Gene IDs
25978 (Human); 68942 (Mouse); 363720 (Rat)
Alternate Names
charged multivesicular body protein 2b; CHMP2.5; CHMP2.5VPS2BVPS2-2; CHMP2B; chromatin modifying protein 2B; Chromatin-modifying protein 2b; DKFZP564O123; DMT1; hVps2-2; Vacuolar protein sorting-associated protein 2-2; vacuolar protein-sorting-associated protein 2-2; VPS2 homolog B; Vps2-2; VPS2B

Product Datasheets

You must select a language.


Citations for Human CHMP2B Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

2 Citations: Showing 1 - 2
Filter your results:

Filter by:

  1. The identification of high-performing antibodies for Charged multivesicular body protein 2b for use in Western Blot, immunoprecipitation and immunofluorescence
    Authors: Alshafie, W;Fotouhi, M;Ayoubi, R;Shlaifer, I;Southern, K;McPherson, PS;Laflamme, C;NeuroSGC/YCharOS/EDDU collaborative group, ;
    Species: Human
    Sample Types: Cell Lysates
    Applications: Western Blot
  2. The ESCRT-Related ATPase Vps4 Is Modulated by Interferon during Herpes Simplex Virus 1 Infection
    Authors: JR Cabrera, R Manivanh, BJ North, DA Leib
    MBio, 2019-03-05;10(2):.
    Species: Mouse
    Sample Types: Cell Lysates
    Applications: Western Blot
