Proteome Profiler Rat Cytokine Array Kit, Panel A

Contains 4 membranes - each spotted in duplicate with 29 different cytokine antibodies
Catalog # Availability Size / Price Qty
The Rat Cytokine Array detects multiple analytes in cell culture supernates.
4 Images
Product Details
Citations (46)
Supplemental Products
Reviews (8)

Proteome Profiler Rat Cytokine Array Kit, Panel A Summary

Kit Summary

A membrane-based antibody array for the parallel determination of the relative levels of selected rat cytokines and chemokines. Validated for analyte detection in cell culture supernates, cell lysates, tissue lysates, serum, and plasma.

Troubleshooting Guide

Key Benefits

  • Detects 29 rat cytokines and chemokines simultaneously
  • Requires no specialized equipment
  • Compatible with LI-COR* and chemiluminescence detection
*If using a LI-COR, additional reagents and protocol modifications are required.  Refer to protocol.

Principle of the Assay

The Proteome Profiler Rat Cytokine Array Kit, Panel A is a membrane-based sandwich immunoassay. Samples are mixed with a cocktail of biotinylated detection antibodies (Step 1) and then incubated with the array membrane which is spotted in duplicate with capture antibodies to specific target proteins (Step 2). Captured proteins are visualized using chemiluminescent detection reagents (Step 3). The signal produced is proportional to the amount of analyte bound.

Why Use an Antibody Array to Detect Multiple Cytokines?

Determining the expression of multiple cytokines in a single sample can be expensive, time consuming and can require specialized equipment. Performing multiple immunoprecipitations and Western blots requires time, labor, and reagents. The use of a multiplex antibody array to detect multiple cytokines in a single sample can be cost-effective and also save time and sample.

Kit Contents
  • Rectangular 4-Well Multi-dish
  • 4 Rat Cytokine Array, Panel A nitrocellulose membranes spotted with 29 different antibodies to rat cytokines and chemokines
  • Array Buffer 4
  • Array Buffer 6
  • Chemi Reagent 1
  • Chemi Reagent 2
  • Detection Antibody Cocktail, Rat Cytokine Array, Panel A
  • Streptavidin-HRP
  • Transparency Overlay Template
  • Wash Buffer Concentrate (25X)

For a complete list of the kit contents and necessary materials, please see the Materials Provided/Other Supplies Required sections of the product datasheet.

Stability and Storage

Store the unopened kit at 2 °C to 8 °C. Do not use past kit expiration date.



Simultaneously detect the levels of these cytokines, chemokines, and acute phase proteins in a single sample.
CXCL1/CINC-1 IL-1ra/IL-1F3 L-Selectin
CXCL3/CINC-2 alpha/beta IL-2 CXCL9/MIG
CXCL2/CINC-3 IL-3 CCL3/MIP-1 alpha
CNTF IL-4 CCL20/MIP-3 alpha
Fractalkine/CXC3CL1 IIL-6 CCL5/RANTES
GM-CSF IL-10 CXCL7/Thymus Chemokine
IFN-gamma IL-17 TNF-alpha
IL-1 alpha/IL-1F1 CXCL10/IP-10 VEGF
IL-1 beta/IL-1F2 LIX


Assays for Analytes represented in the Rat Cytokine Array Kit, Panel A

Analyte Quantikine® ELISA Kits DuoSet® ELISA Development Systems


CXCL3/CINC-2 alpha/beta RCN200 DY516
CNTF   DY557
Fractalkine/CX3CL1 MCX310 DY537
GM-CSF   DY518
ICAM-1 RIC100 DY583
IFN-gamma RIF00 DY585
IL-1 alpha RRA00 DY500
IL-1 beta RLB00 DY501
IL-2 R2000 DY502
IL-4 R4000 DY504
IL-6 R6000B DY506
IL-10 R1000 DY522
LIX   DY543
L-Selectin   DY1534
CCL3/MIP-1 alpha
CCL20/MIP-3 alpha   DY540
CXCL7/Thymus Chemokine   DY1116
TIMP-1 RTM100 DY580
TNF-alpha RTA00 DY510


Shipping Conditions
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Product Datasheets

You must select a language.


Scientific Data

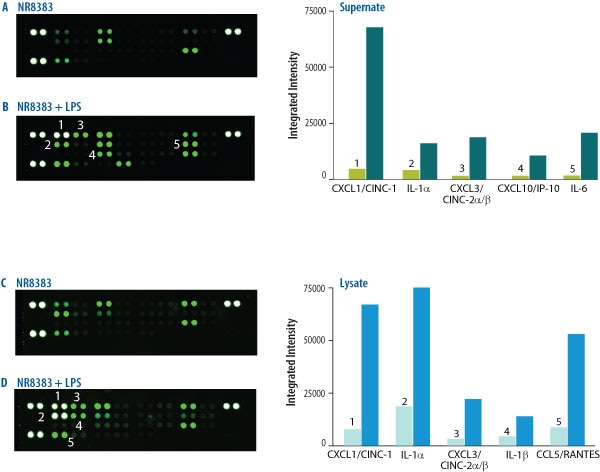

The Rat Cytokine Array detects multiple analytes in cell culture supernates. NR8383 rat alveolar macrophage cells were either untreated or treated as below. Data shown are from a two minute exposure to X-ray film. A, untreated. B, Treated with 100 ng/mL LPS for 24 hours. C, Pre-treated with 100 nM Dexamethasone for 72 hours followed by treatment with 100 ng/mL LPS for 24 hours.

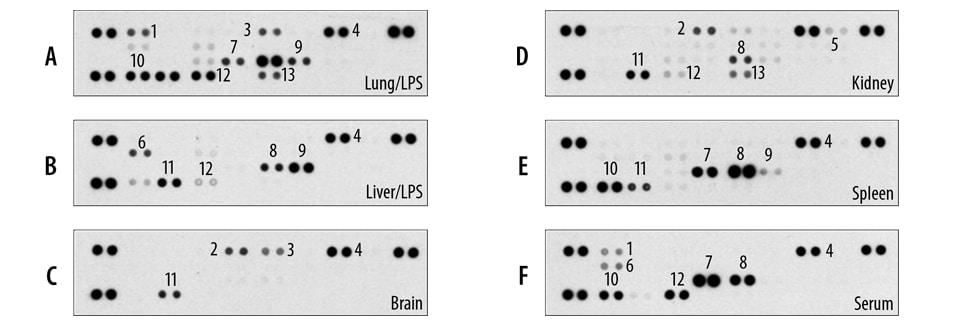

The Rat Cytokine Array detects multiple analytes in tissue lysates and serum. A rat was injected with 0.1 mg/kg LPS. After 24 hours, tissues were excised and prepared as described in the Sample Collection and Storage section. 400 µg of lysate was run on each array. Data shown are from a 7 minute exposure to X-ray film (Panels A-B). Tissues were excised from untreated rats and prepared as described in the Sample Collection and Storage section. 400 µg of lysate was run on each array. Data shown are from a 7 minute exposure to X-ray film (Panels C-E). Serum samples from 15 week old male rats were prepared as described in the Sample Collection and Storage section. 100 µL of serum was run on the array. Data shown are from a 5 minute exposure to X-ray film (Panel F).

The Rat Cytokine Array detects multiple analytes in cell culture supernates and lysates. (A. and B.) Supernates from NR8383 rat alveolar macrophage cell line untreated or treated with 50 ng/mL LPS for 24 hours. 500 μL of supernate was used for each array shown. (C. and D.) Lysates from NR8383 rat alveolar macrophage cell line untreated or treated with 50 ng/mL LPS for 24 hours. 200 μg of lysates was used for each array shown. Array images were collected and analyzed using the LI-COR Odyssey Infrared Imaging System.

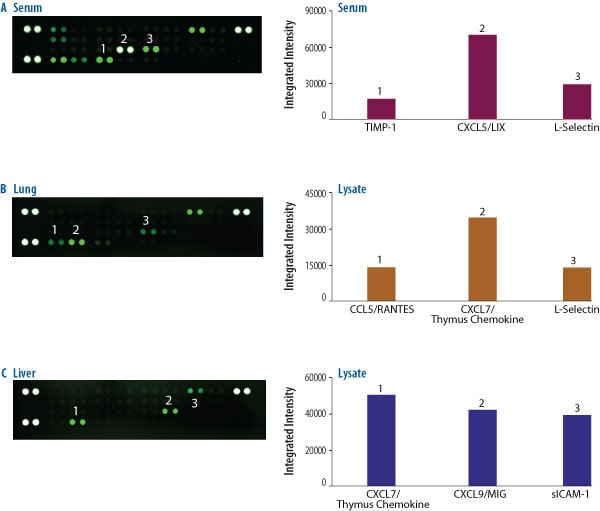

The Rat Cytokine Array detects cytokines present in serum and tissue. Representative membranes and selective quantification are shown for rat serum (A., 150 μL), lysates of rat lung tissue (B., 400 μg), and lysates of rat liver tissue (C., 400 μg). Array images were collected and analyzed using the LI-COR Odyssey Infrared Imaging System.

Citations for Proteome Profiler Rat Cytokine Array Kit, Panel A

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

46 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. Soft Tissue Manipulation Alters RANTES/CCL5 and IL-4 Cytokine Levels in a Rat Model of Chronic Low Back Pain
    Authors: Marciano, CL;Hiland, TA;Jackson, KL;Street, S;Maris, C;Ehrsam, A;Hum, JM;Loghmani, MT;Chu, TG;Kang, KS;Lowery, JW;
    International journal of molecular sciences  2023-09-21
  2. Identification of a Gene Signature Predicting (Nano)Particle-Induced Adverse Lung Outcome in Rats
    Authors: Valentino, SA;Seidel, C;Lorcin, M;Sébillaud, S;Wolff, H;Grossmann, S;Viton, S;Nunge, H;Saarimäki, LA;Greco, D;Cosnier, F;Gaté, L;
    International journal of molecular sciences  2023-06-29
  3. A nanofiber-hydrogel composite improves tissue repair in a rat model of Crohn's disease perianal fistulas
    Authors: L Li, ZC Yao, A Parian, YH Yang, J Chao, J Yin, KJ Salimian, SK Reddy, A Zaheer, SL Gearhart, HQ Mao, FM Selaru
    Science Advances, 2023-01-04;9(1):eade1067.  2023-01-04
  4. Adenine Nucleotide Translocase 1 Expression Modulates the Immune Response in Ischemic Hearts
    Authors: F Yergöz, J Friebel, N Kränkel, U Rauch-Kroe, HP Schultheis, U Landmesser, A Dörner
    Cells, 2021-08-19;10(8):.  2021-08-19
  5. RACK1 plays a critical role in mast cell secretion and Ca2+ mobilization by modulating F-actin dynamics
    Authors: EGF Filho, EZM da Silva, HL Ong, WD Swaim, IS Ambudkar, C Oliver, MC Jamur
    Journal of Cell Science, 2021-05-13;134(9):.  2021-05-13
  6. Transient Global Ischemia-Induced Brain Inflammatory Cascades Attenuated by Targeted Temperature Management
    Authors: DK Hong, YS Park, JS Woo, JH Kim, JH Beom, SP Chung, JS You, SW Suh
    International Journal of Molecular Sciences, 2021-05-12;22(10):.  2021-05-12
  7. Peripheral Macrophage-derived Exosomes promote repair after Spinal Cord Injury by inducing Local Anti-inflammatory type Microglial Polarization via Increasing Autophagy
    Authors: B Zhang, F Lin, J Dong, J Liu, Z Ding, J Xu
    International journal of biological sciences, 2021-03-30;17(5):1339-1352.  2021-03-30
  8. Effects of prenatal photobiomodulation treatment on neonatal hypoxic ischemia in rat offspring
    Authors: L Yang, Y Dong, C Wu, H Youngblood, Y Li, X Zong, L Li, T Xu, Q Zhang
    Theranostics, 2021-01-01;11(3):1269-1294.  2021-01-01
  9. Theta-burst transcranial magnetic stimulation promotes stroke recovery by vascular protection and neovascularization
    Authors: X Zong, Y Li, C Liu, W Qi, D Han, L Tucker, Y Dong, S Hu, X Yan, Q Zhang
    Theranostics, 2020-10-26;10(26):12090-12110.  2020-10-26
  10. Beneficial effects of IL-4 and IL-6 on rat neonatal target cardiac cells
    Authors: C Zogbi, NC Oliveira, D Levy, SP Bydlowski, V Bassaneze, EA Neri, JE Krieger
    Sci Rep, 2020-07-23;10(1):12350.  2020-07-23
  11. Impaired integrin &alpha5 /&beta1 -mediated hepatocyte growth factor release by stellate cells of the aged liver
    Authors: F Rohn, C Kordes, T Buschmann, D Reichert, M Wammers, G Poschmann, K Stühler, AS Benk, F Geiger, JP Spatz, D Häussinger
    Aging Cell, 2020-03-11;0(0):e13131.  2020-03-11
  12. Tspan8-Tumor Extracellular Vesicle-Induced Endothelial Cell and Fibroblast Remodeling Relies on the Target Cell-Selective Response
    Authors: W Mu, J Provaznik, T Hackert, M Zöller
    Cells, 2020-01-29;9(2):.  2020-01-29
  13. Recombinant Alkaline Phosphatase Prevents Acute on Chronic Liver Failure
    Authors: C Engelmann, D Adebayo, M Oria, F De Chiara, S Novelli, A Habtesion, N Davies, F Andreola, R Jalan
    Sci Rep, 2020-01-15;10(1):389.  2020-01-15
  14. Differences in pathological changes between two rat models of severe traumatic brain injury
    Authors: YM Song, Y Qian, WQ Su, XH Liu, JH Huang, ZT Gong, HL Luo, C Gao, RC Jiang
    Neural Regen Res, 2019-10-01;14(10):1796-1804.  2019-10-01
  15. Euphorbia bicolor (Euphorbiaceae) Latex Extract Reduces Inflammatory Cytokines and Oxidative Stress in a Rat Model of Orofacial Pain
    Authors: P Basu, RS Hornung, DL Averitt, C Maier
    Oxid Med Cell Longev, 2019-09-12;2019(0):8594375.  2019-09-12
  16. The effects of human immunoglobulin G on enhancing tissue protection and neurobehavioral recovery after traumatic cervical spinal cord injury are mediated through the neurovascular unit
    Authors: JCT Chio, J Wang, A Badner, J Hong, V Surendran, MG Fehlings
    J Neuroinflammation, 2019-07-09;16(1):141.  2019-07-09
  17. Dendrobium huoshanense polysaccharide regulates intestinal lamina propria immune response by stimulation of intestinal epithelial cells via toll-like receptor 4
    Authors: SZ Xie, ZZ Shang, QM Li, XQ Zha, LH Pan, JP Luo
    Carbohydr Polym, 2019-06-26;222(0):115028.  2019-06-26
  18. CGRP Induces Differential Regulation of Cytokines from Satellite Glial Cells in Trigeminal Ganglia and Orofacial Nociception
    Authors: S Afroz, R Arakaki, T Iwasa, M Oshima, M Hosoki, M Inoue, O Baba, Y Okayama, Y Matsuka
    Int J Mol Sci, 2019-02-07;20(3):.  2019-02-07
  19. Localized Intrathecal Delivery of Mesenchymal Stromal Cells Conditioned Medium Improves Functional Recovery in a Rat Model of Spinal Cord Injury
    Authors: D Cizkova, V Cubinkova, T Smolek, AN Murgoci, J Danko, K Vdoviakova, F Humenik, M Cizek, J Quanico, I Fournier, M Salzet
    Int J Mol Sci, 2018-03-15;19(3):.  2018-03-15
  20. Paclitaxel�treatment and PC1/3 knockdown in macrophages is a promising anti-glioma strategy as revealed by proteomics and cytotoxicity studies
    Authors: M Duhamel, M Rose, F Rodet, AN Murgoci, L Zografidou, A Régnier-Vi, F Vanden Abe, F Kobeissy, S Nataf, L Pays, M Wisztorski, D Cizkova, I Fournier, M Salzet
    Mol. Cell Proteomics, 2018-03-12;0(0):.  2018-03-12
  21. Sphingosine 1-phosphate receptors regulate TLR4-induced CXCL5 release from astrocytes and microglia
    Authors: SA O'Sullivan, C O'Sullivan, LM Healy, KK Dev, GK Sheridan
    J. Neurochem., 2018-02-21;0(0):.  2018-02-21
  22. EBI2 regulates pro-inflammatory signalling and cytokine release in astrocytes
    Authors: A Rutkowska, DR Shimshek, AW Sailer, KK Dev
    Neuropharmacology, 2018-01-31;133(0):121-128.  2018-01-31
  23. Immune tuning scaffold for the local induction of a pro-regenerative environment
    Authors: B Corradetti, F Taraballi, C Corbo, F Cabrera, L Pandolfi, S Minardi, X Wang, J Van Eps, G Bauza, B Weiner, E Tasciotti
    Sci Rep, 2017-12-05;7(1):17030.  2017-12-05
  24. Implication of Free Fatty Acids in Thrombin Generation and Fibrinolysis in Vascular Inflammation in Zucker Rats and Evolution with Aging
    Authors: J Lagrange, M Didelot, A Mohamadi, LA Walton, S Bloemen, B de Laat, H Louis, SN Thornton, B Derby, MJ Sherratt, B Fève, P Challande, R Akhtar, JK Cruickshan, P Lacolley, V Regnault
    Front Physiol, 2017-11-22;8(0):949.  2017-11-22
  25. Aged blood factors decrease cellular responses associated with delayed gingival wound repair
    Authors: MP Saldías, C Fernández, A Morgan, C Díaz, D Morales, F Jaña, A Gómez, A Silva, F Briceño, A Oyarzún, F Maldonado, O Cerda, PC Smith, M Cáceres
    PLoS ONE, 2017-09-12;12(9):e0184189.  2017-09-12
  26. Activation of NLRP3 inflammasome complex potentiates venous thrombosis in response to hypoxia
    Authors: N Gupta, A Sahu, A Prabhakar, T Chatterjee, T Tyagi, B Kumari, N Khan, V Nair, N Bajaj, M Sharma, MZ Ashraf
    Proc. Natl. Acad. Sci. U.S.A., 2017-04-18;0(0):.  2017-04-18
  27. Cytokine evaluation in untreated and radioimmunotherapy-treated tumors in an immunocompetent rat model
    Authors: E Elgström, TG Ohlsson, SE Eriksson
    Tumour Biol., 2017-04-01;39(4):1010428317697.  2017-04-01
  28. Adaptor protein-3: A key player in RBL-2H3 mast cell mediator release
    Authors: EZ da Silva, EG Freitas-Fi, DA de Souza-J, LL daSilva, MC Jamur, C Oliver
    PLoS ONE, 2017-03-08;12(3):e0173462.  2017-03-08
  29. Acute Mobilization and Migration of Bone Marrow-derived Stem Cells following Anterior Cruciate Ligament Rupture
    Authors: T Maerz, M Fleischer, MD Newton, A Davidson, M Salisbury, P Altman, MD Kurdziel, K Anderson, A Bedi, KC Baker
    Osteoarthr. Cartil, 2017-03-08;0(0):.  2017-03-08
  30. Neurotoxic reactive astrocytes are induced by activated microglia
    Authors: SA Liddelow, KA Guttenplan, LE Clarke, FC Bennett, CJ Bohlen, L Schirmer, ML Bennett, AE Mnch, WS Chung, TC Peterson, DK Wilton, A Frouin, BA Napier, N Panicker, M Kumar, MS Buckwalter, DH Rowitch, VL Dawson, TM Dawson, B Stevens, BA Barres
    Nature, 2017-01-18;541(7638):481-487.  2017-01-18
  31. Myelin phagocytosis by astrocytes after myelin damage promotes lesion pathology
    Authors: Gerald Ponath
    Brain, 2016-12-21;0(0):.  2016-12-21
  32. Aberrant cytokine secretion and zinc uptake in chronic cadmium-exposed lung epithelial cells
    Authors: Andy T Y Lau
    Proteomics Clin Appl, 2016-12-14;0(0):.  2016-12-14
  33. Ocular Delivery of PACAP1-27 Protects the Retina From Ischemic Damage in Rodents
    Invest. Ophthalmol. Vis. Sci, 2016-12-01;57(15):6683-6691.  2016-12-01
  34. Robot-assisted mechanical therapy attenuates stroke-induced limb skeletal muscle injury
    Authors: Chandan K Sen
    FASEB J, 2016-11-28;0(0):.  2016-11-28
  35. Tumor necrosis factor-Alpha stimulates cytokine expression and transient sensitization of trigeminal nociceptive neurons
    Authors: Paul L Durham
    Arch. Oral Biol., 2016-11-04;0(0):.  2016-11-04
  36. Nanoparticles Effectively Target Rapamycin Delivery to Sites of Experimental Aortic Aneurysm in Rats
    Authors: Takuro Shirasu
    PLoS ONE, 2016-06-23;11(6):e0157813.  2016-06-23
  37. FT011, a Novel Cardiorenal Protective Drug, Reduces Inflammation, Gliosis and Vascular Injury in Rats with Diabetic Retinopathy.
    Authors: Deliyanti D, Zhang Y, Khong F, Berka D, Stapleton D, Kelly D, Wilkinson-Berka J
    PLoS ONE, 2015-07-29;10(7):e0134392.  2015-07-29
  38. Novel mechanisms of sildenafil in pulmonary hypertension involving cytokines/chemokines, MAP kinases and Akt.
    Authors: Kiss T, Kovacs K, Komocsi A, Tornyos A, Zalan P, Sumegi B, Gallyas F, Kovacs K
    PLoS ONE, 2014-08-18;9(8):e104890.  2014-08-18
  39. Improving membrane based multiplex immunoassays for semi-quantitative detection of multiple cytokines in a single sample.
    Authors: Altara, Raffaele, Manca, Marco, Hessel, Marleen, Janssen, Ben J, Struijker-Boudier, Harry H, Hermans, Rob J J, Blankesteijn, W Matthi
    BMC Biotechnol, 2014-07-15;14(0):63.  2014-07-15
  40. Mesenchymal stem cells from rats with chronic kidney disease exhibit premature senescence and loss of regenerative potential.
    Authors: Klinkhammer B, Kramann R, Mallau M, Makowska A, van Roeyen C, Rong S, Buecher E, Boor P, Kovacova K, Zok S, Denecke B, Stuettgen E, Otten S, Floege J, Kunter U
    PLoS ONE, 2014-03-25;9(3):e92115.  2014-03-25
  41. A RHAMM mimetic peptide blocks hyaluronan signaling and reduces inflammation and fibrogenesis in excisional skin wounds.
    Authors: Tolg C, Hamilton S, Zalinska E, McCulloch L, Amin R, Akentieva N, Winnik F, Savani R, Bagli D, Luyt L, Cowman M, McCarthy J, Turley E
    Am J Pathol, 2012-08-11;181(4):1250-70.  2012-08-11
  42. Human embryonic mesenchymal stem cell-derived conditioned medium rescues kidney function in rats with established chronic kidney disease.
    Authors: van Koppen A, Joles JA, van Balkom BW, Lim SK, de Kleijn D, Giles RH, Verhaar MC
    PLoS ONE, 2012-06-19;7(6):e38746.  2012-06-19
  43. Treatment of experimental adjuvant arthritis with a novel folate receptor-targeted folic acid-aminopterin conjugate.
    Authors: Lu Y, Stinnette TW, Westrick E, Klein PJ, Gehrke MA, Cross VA, Vlahov IR, Low PS, Leamon CP
    Arthritis Res. Ther., 2011-04-04;13(2):R56.  2011-04-04
  44. A postweaning iron-adequate diet following neonatal iron deficiency affects iron homeostasis and growth in young rats.
    Authors: Hegde NV, Jensen GL, Unger EL
    J. Nutr., 2011-01-05;141(3):386-90.  2011-01-05
  45. Xanthine oxidoreductase promotes the inflammatory state of mononuclear phagocytes through effects on chemokine expression, peroxisome proliferator-activated receptor-gamma sumoylation, and HIF-1alpha.
    Authors: Gibbings S, Elkins ND, Fitzgerald H, Tiao J, Weyman ME, Shibao G, Fini MA, Wright RM
    J. Biol. Chem., 2010-11-08;286(2):961-75.  2010-11-08
  46. Construction and characterization of a novel DNA vaccine that is potent antigen-specific tolerizing therapy for experimental arthritis by increasing CD4+CD25+Treg cells and inducing Th1 to Th2 shift in both cells and cytokines.
    Authors: Song X, Liang F, Liu N, Luo Y, Xue H, Yuan F, Tan L, Sun Y, Xi C, Xi Y
    Vaccine, 2008-12-16;27(5):690-700.  2008-12-16


  1. Will the Array identification number stamped on the Array membrane interfere with detection if it is not cut-off before the membrane is blocked?

    • The dye used for printing the Array identification number on the membranes will fluoresce and interfere with the LI-COR detection. It is critical that the number is cut off before beginning the experiment.

View all Proteome Profiler Antibody Array FAQs

Reviews for Proteome Profiler Rat Cytokine Array Kit, Panel A

Average Rating: 4.5 (Based on 8 Reviews)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Proteome Profiler Rat Cytokine Array Kit, Panel A?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Proteome Profiler Rat Cytokine Array Kit, Panel A

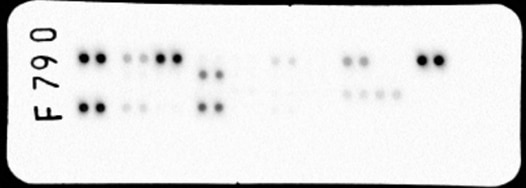

By Anonymous on 03/11/2021

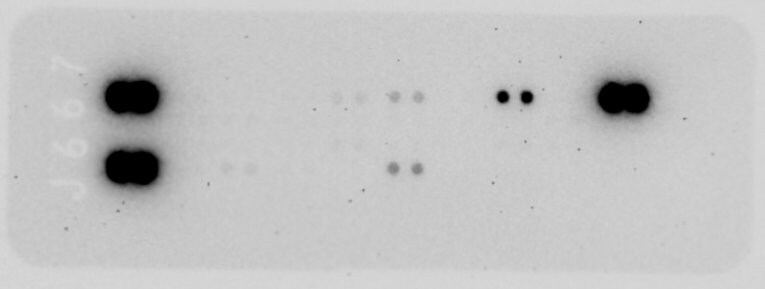

Proteome Profiler Rat Cytokine Array Kit, Panel A
By Reetu Singh on 11/15/2020

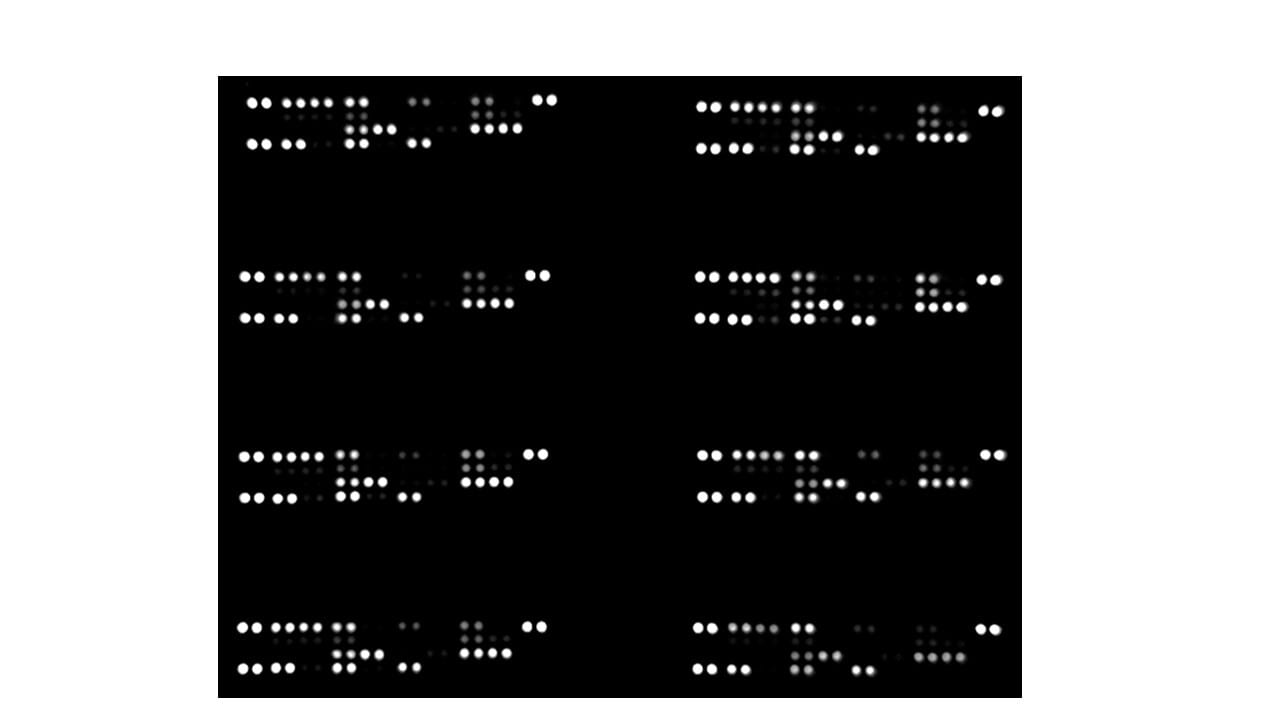

Proteome Profiler Rat Cytokine Array Kit, Panel A
By Anonymous on 05/15/2020

This kit is easy to use and would definitely use again.

Proteome Profiler Rat Cytokine Array Kit, Panel A
By Anonymous on 02/01/2020

Performed well, great tool to screen for possible targets before making a more quantitative and more expensive assay. Spots can be easily evaluated using e.g., Bio-Rad ImageLab, and the semi-quantitative analysis can basically detect substantial differences between experimental groups.

Proteome Profiler Rat Cytokine Array Kit, Panel A

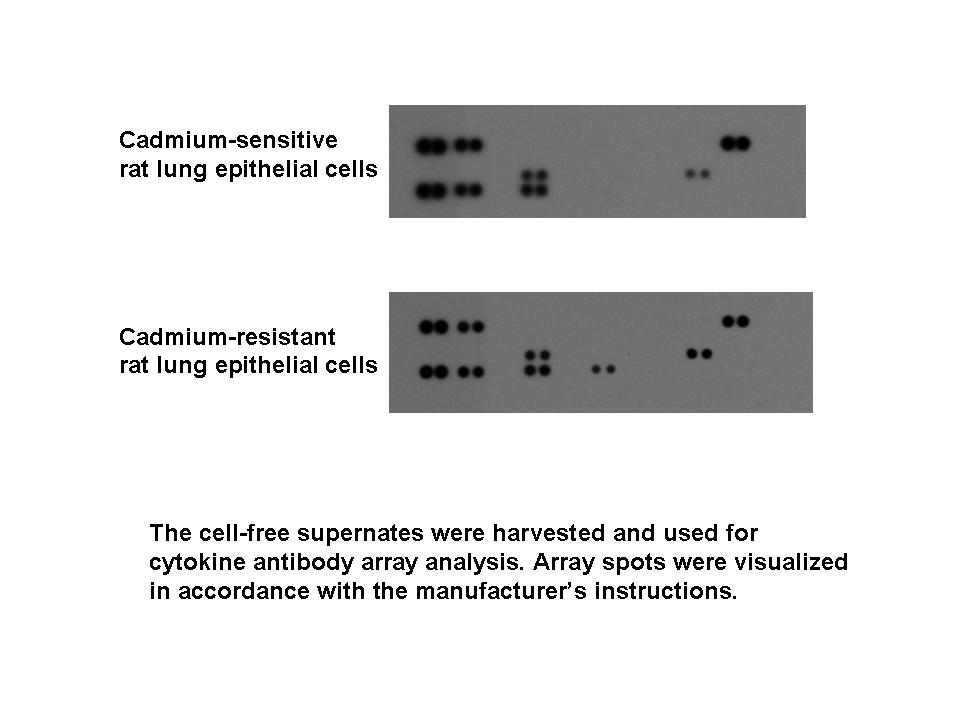

By Leslie Priddy on 04/01/2018

Proteome Profiler Rat Cytokine Array Kit, Panel A
By Anonymous on 01/20/2017

This array kit is a very nice tool to screen potential cytokines in spent media of cell culture.

Proteome Profiler Rat Cytokine Array Kit, Panel A
By Anonymous on 01/03/2017

This kit is an excellent tool in screening potential cytokines and chemokines. However, it would be nice if more targets can be included for this Rat cytokine panel (since the mouse and human panel has XL format).

Proteome Profiler Rat Cytokine Array Kit, Panel A
By Anonymous on 10/06/2016
