Proteome Profiler Mouse Apoptosis Array

Contains 8 membranes - each spotted in duplicate with 21 different apoptosis antibodies
Catalog # Availability Size / Price Qty
Expression of Mouse Apoptosis-related Proteins in Cell Lysate
2 Images
Product Details
Citations (4)

Proteome Profiler Mouse Apoptosis Array Summary

Kit Summary

A membrane-based antibody array for the parallel determination of the relative levels of mouse apoptosis-related proteins. Validated for analyte detection in cell lysates.

Troubleshooting Guide

Key Benefits

  • Detects 21 mouse apoptosis-related proteins simultaneously
  • Requires no specialized equipment
  • Compatible with LI-COR and chemiluminescence detection

Principle of the Assay

The Proteome Profiler Mouse Apoptosis Array Kit is a membrane-based sandwich immunoassay. Capture antibodies spotted in duplicate on nitrocellulose membranes bind to specific target proteins present in the sample (Step 1). Captured proteins are detected with biotinylated detection antibodies (Step 2) and then visualized using chemiluminescent detection reagents (Step 3). The signal produced is proportional to the amount of the bound analyte.

Why Use an Antibody Array to Detect Apoptosis-Related Proteins?

Determining the expression of multiple proteins in a single sample can be expensive, time consuming and can require specialized equipment. Performing multiple immunoprecipitations and Western blots requires time, labor, and reagents. The use of a multiplex antibody array to detect multiple proteins in a single sample can be cost-effective and also save time and sample.


Kit Contents
  • Rectangular 8-Well Multi-dish
  • 8 Mouse Apoptosis Array nitrocellulose membranes spotted with 21 different antibodies to mouse apoptosis-related proteins
  • Array Buffer 1
  • Array Buffer 8
  • Lysis Buffer 17
  • Chemi Reagent 1
  • Chemi Reagent 2
  • Detection Antibody Cocktail, Mouse Apoptosis Array
  • Streptavidin-HRP
  • Transparency Overlay Template
  • Wash Buffer Concentrate (25X)

For a complete list of the kit contents and necessary materials, please see the Materials Provided/Other Supplies Required sections of the product datasheet.

Stability and Storage

Store the unopened kit at 2 °C to 8 °C. Do not use past kit expiration date.

Simultaneously detect the levels of these apoptosis-related proteins in a single sample.
Bad Fas/TNFRSF6/CD95 MCL-1
Bcl-2 HIF-1α p27/Kip1
Bcl-x HO-1/HMOX1/HSP32 p53
Cleaved Caspase-3 HO-2/HMOX2 SMAC/Diablo
Cytochrome c HSP70/HSPA1A XIAP

Western blotting antibodies for analytes related to the Mouse Apoptosis Array Kit

Analyte Affinity Purified Polyclonal Antibodies (Total) Monoclonal Antibodies (Total) Labeled Antibodies (Total)
Bad AF819 MAB850
Bcl-2 AF813 MAB8272
Bcl-x AF800
Cleaved Caspase-3   MAB835
Catalase AF3398
Cytochrome c   MAB897
Fas/TNFRSF6/CD95 AF435   BAF435
HIF-1α AF1935 MAB1536
HO-1/HMOX1/HSP32 AF3776 MAB3776
HO-2/HMOX2 AF3170 MAB3170
HSP27 AF1580
HSP60 AF1800 MAB1800
HSP70/HSPA1A AF1663 MAB1663
p27/Kip1 AF2256 MAB2256
p53 AF1355 MAB1355 BAF1355
XIAP AF8221 MAB822 BAF8221


Shipping Conditions
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Product Datasheets

You must select a language.


Scientific Data

Expression of Mouse Apoptosis-related Proteins in Cell Lysate. Figure 1A: A20 mouse rectal carcinoma cell lysate (650 μg).
Figure 1B: SW/3T3 Swiss albino mouse embryo fi broblast cell lysate (300 μg).
Figure 1C: Ba/F3 mouse lymphocyte cell lysate (400 μg).
Figure 1D: Hepa 1-6 mouse liver epithelial cell lysate (650 μg).

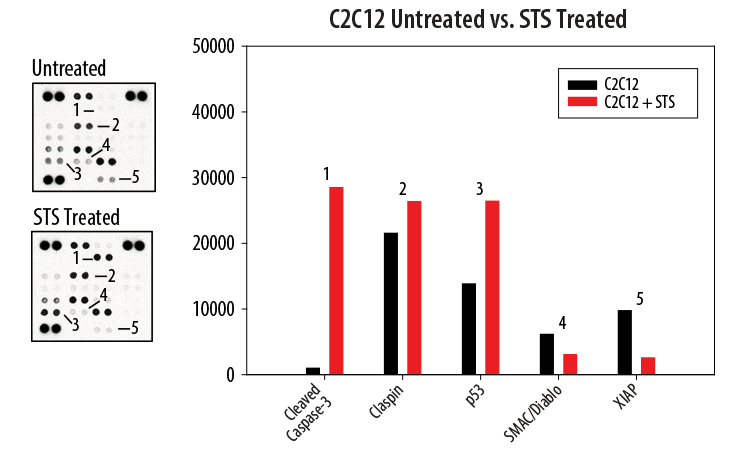

Expression of Mouse Apoptosis-related Proteins in Cell Lysate. Figure 2: Lysates from C2C12 mouse muscle myoblast cells were left untreated or treated with 1 μM STS for 3 hours.

Citations for Proteome Profiler Mouse Apoptosis Array

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

4 Citations: Showing 1 - 4
Filter your results:

Filter by:

  1. IkappaB? regulates the development of nonalcoholic fatty liver disease through the attenuation of hepatic steatosis in mice
    Authors: H Ishikawa, M Hayakawa, N Baatartsog, N Kakizawa, H Ohto-Ozaki, T Maruyama, K Miura, K Suzuki, T Rikiyama, T Ohmori
    Scientific Reports, 2022-07-08;12(1):11634.  2022-07-08
  2. MSC Pretreatment for Improved Transplantation Viability Results in Improved Ventricular Function in Infarcted Hearts
    Authors: MF Pittenger, S Eghtesad, PG Sanchez, X Liu, Z Wu, L Chen, BP Griffith
    International Journal of Molecular Sciences, 2022-01-08;23(2):.  2022-01-08
  3. Deficiency of myostatin protects skeletal muscle cells from ischemia reperfusion injury
    Authors: C Wallner, M Drysch, M Becerikli, SV Schmidt, S Hahn, JM Wagner, F Reinkemeie, M Dadras, A Sogorski, M von Glinsk, M Lehnhardt, B Behr
    Scientific Reports, 2021-06-15;11(1):12572.  2021-06-15
  4. The effect of light exposure on the cleavage rate and implantation capacity of preimplantation murine embryos
    Authors: Z Bognar, TJ Csabai, E Pallinger, T Balassa, N Farkas, J Schmidt, E Görgey, G Berta, J Szekeres-B, J Bodis
    J. Reprod. Immunol., 2019-03-04;132(0):21-28.  2019-03-04
